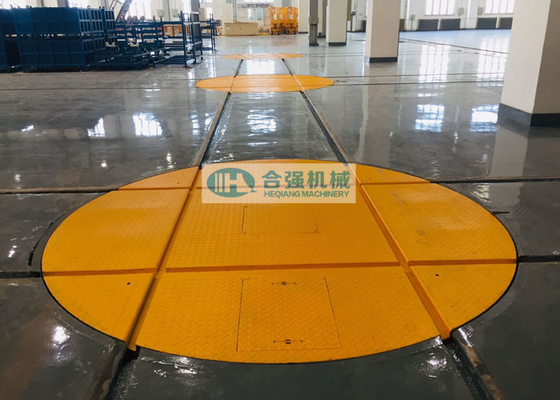

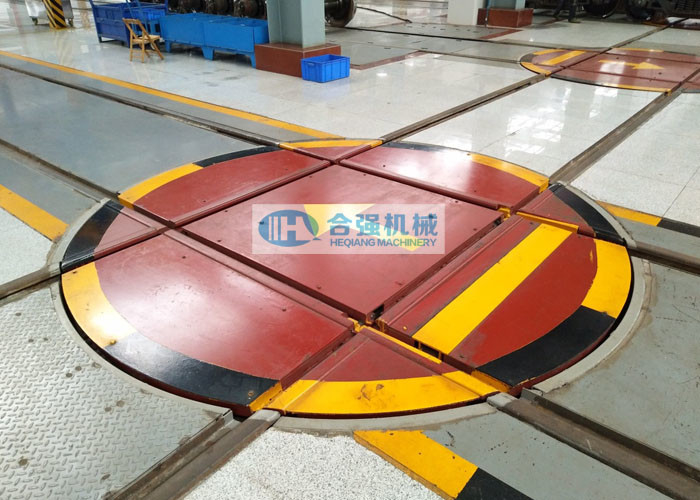

3500mm Railway Motorized Turntable With 20 Tons Capacity

3500mm Railway Motorized Turntable With 20 Tons Capacity
3500mm Railway Motorized Turntable With 20 Tons Capacity
video play

Large Image :  3500mm Railway Motorized Turntable With 20 Tons Capacity Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ85
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 90 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per year
Detailed Product Description
Product Name: Railway Turntable Application: Railway Depots, Rolling Stock Enterprises
Usage: Transfer Bogies Turntable Diameter: 3500 Mm
Track Gauge: 1435 Mm Control: Electrical Control
Warranty: One Year After-sale Service: Engineers Available For Oversea Service
Highlight:

3500mm Railway Turntable

,

1rpm Railway Turntable

,

20 Ton Bogie Turntable

3500mm Railway Motorized Turntable Electric Controlled With 20 Tons Capacity, Railway Workshop Equipment


Product Application:
The railway electric turntable is mainly used for transferring the railway bogies from one track to another track in the maintenance depot. The operation is electricly controled on the console or by remote.

Technical Parameters:

 Turntable diameter  3500 mm
 Track gauge  1435 mm
 Track layout  Double cross (#) type
 Rotation angle  Any 90°, clockwise or counter clockwise
 Rotation speed  0.2 ~ 1rpm
 Operation mode  Console and remote
 Installation type  Pit installation required
 Loading capacity  20 tons
 Horizontal clearance between turntable and shop track  Not more than 3 mm
 Vertical clearance between turntable and shop track  Not more than 2 mm
 Variation of horizontal and vertical alignment of  turntable rail with adjacent rails  ±5mm
 Installed power  4 kW
 Noise level during working  ≤ 75dB
 Power supply  380V/50Hz, 3 phase AC
 Working place  Railway Interior shop

(*Above parameters are indicative and can be modified as per customer's requirement.)



Main Features:

  • The bogie turntable is mainly composed of  patten plate, turntable body, centering device, slew bearing, positioning and locking deivce, auxiliary supports and power device.
  • The operation of turntable is controled on the console or by the remote.
  • The bogie turntable can be turned in clockwise or counter clockwise and will stop at any 90° as per required.
  • The railway turntable is overall steel structure.
  • The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel.
  • The railway turntable is equipped with reliable safety protection and insurance measures, and grounding device, it has over-current, short-circuit and other protection functions. The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel. The electrical and mechanical parts are provided with moisture-proof, high temperature proof and dust-proof measures.
  • Pit foundation required for installation.



Technical Documents:
The following technical documents will be supplied along with the railway turntable when delivery in 3 printed-copy and 1 E-copy in English language:

  • Operating and maintenance instruction manual
  • General arrangement drawing, Foundation drawing
  • Electrical schematic diagram
  • Lift of Spare part and Special tool
  • Product certificate
