Product Name: Railway Turntable Application: Railway Depots, Rolling Stock Enterprises
Turntable Diameter: 3000 Mm Track Gauge: 1435 Mm
Track Layout: Double Cross Type Control: Manual Control
Warranty: One Year After-sale Service: Engineers Available For Oversea Service
High Light:

3000mm Bogie Turntable

,

10 Ton Bogie Turntable

,

Railway manual turntable

3000mm Railway Bogie Turntable Manual Operation With 10 Tons Capacity, Railway Depot Equipment

Product Application:

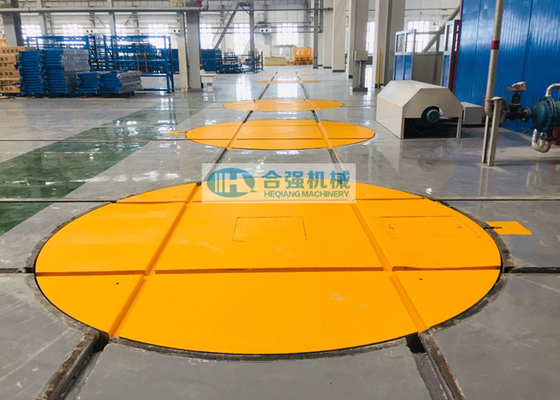

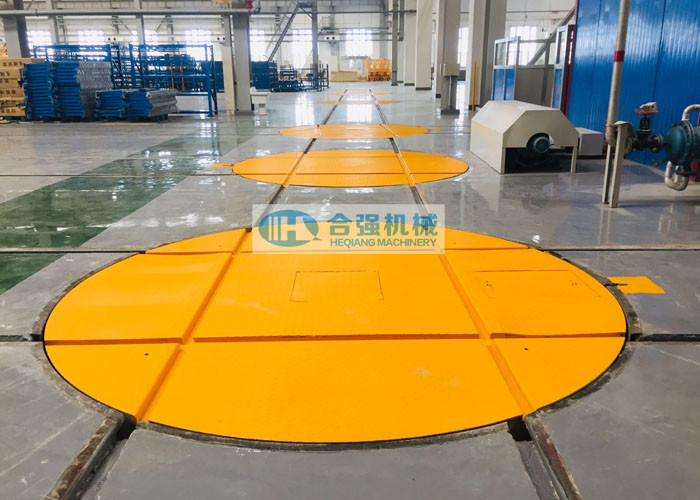

The Manual Railway Bogie Turntable is mainly used for transferring the railway bogies from one track to another track in the maintenance depot. The turning operation is manual.

Technical Parameters:

 Turntable diameter  3000 mm
 Track gauge  1435 mm
 Track layout  Double cross (#) type
 Rotation angle  Any 90°, clockwise or counterclock wise
 Rotation speed  0.5 ~ 2rpm
 Operation mode  Manual operation
 Installation type  Pit installation required
 Loading capacity  10 tons
 Horizontal clearance between turntable and shop track  Not more than 10 mm
 Vertical clearance between turntable and shop track  Not more than 2 mm
 Noise level during working  ≤ 75dB
 Power supply  380V/50Hz, 3 phase AC
 Working place  Railway Interior shop

(*Above parameters are indicative and can be modified as per customer's requirement.)



Main Features:

  • The turntable is mainly composed of Zinc patten plate, turntable body, centering device, slew bearing, positioning and locking deivce, 8 castors and wheel stop device.
  • The turntable is a mature product and has advantages of advanced technology, reasonable structure, simple operation, safety, reliability and easy maintenance.
  • The turntable is overall steel structure. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure of the turntable reasonable, safe and reliable with good rigidity.
  • The turntable is equipped with reliable safety protection and insurance measures, and grounding device, it has over-current, short-circuit and other protection functions. The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel. The electrical and mechanical parts are provided with moisture-proof, high temperature proof and dust-proof measures.
  • The operation of turntable is controled manually.
  • When rotate at 90°, it requires the operator to stop and lock the turntable manually.
  • The turntable is provided with wheel stops to stop the wheelset from rolling out during rotation.
  • The turntable is equipped with reliable safety protection and insurance measures, and grounding device, it has over-current, short-circuit and other protection functions. The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel. The electrical and mechanical parts are provided with moisture-proof, high temperature proof and dust-proof measures.



Technical Documents:
The following technical documents will be supplied along with the turntable when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc.
