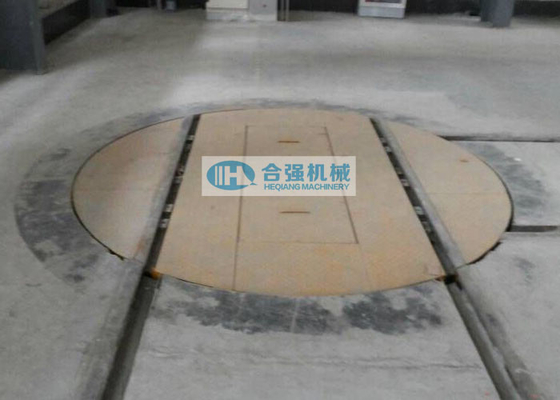

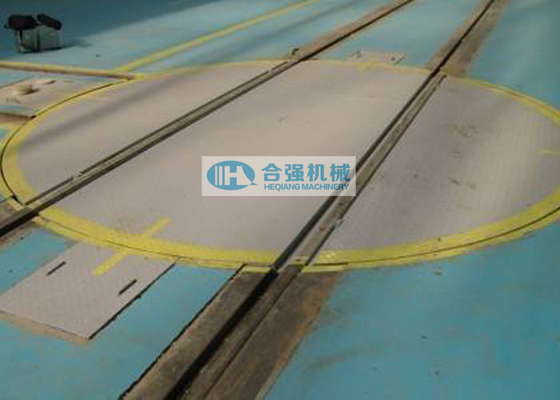

2300mm Electric Railway Turntable Railway Workshop Equipment

2300mm Electric Railway Turntable Railway Workshop Equipment
2300mm Electric Railway Turntable Railway Workshop Equipment
video play

Large Image :  2300mm Electric Railway Turntable Railway Workshop Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ72S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per year
Detailed Product Description
Product Name: Railway Turntable Application: Railway Depot
Usage: Transfer Wheelsets Turntable Diameter: 2300 Mm
Track Gauge: 1435 Mm Control: Electric Control
Warranty: One Year After-sale Service: Engineers Available For Oversea Service
High Light:

2300mm Railway Turntable

,

Electric Railway Turntable

,

5T Railway Workshop Equipment

2300mm Electric Wheelset Turntable Railway Workshop Equipment

Product Application:

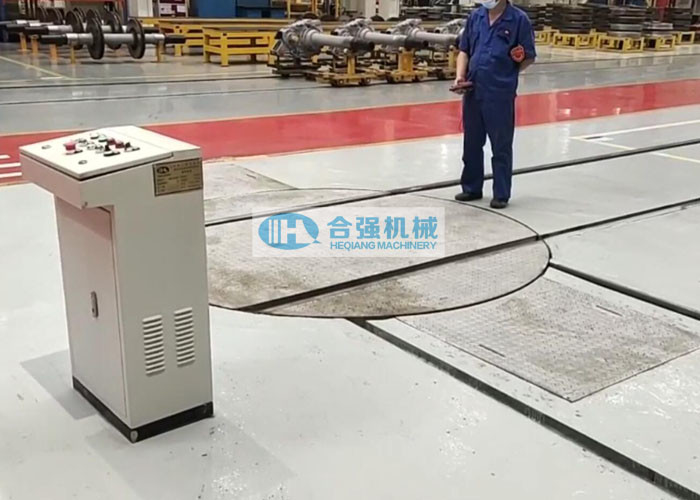

The Electric Railway Turntable is mainly used for transferring the railway wheelset from one track to another track in the maintenance depot. The operation is electrically controled on the console or by remote.

Technical Parameters:

 Turntable diameter  2300 mm
 Track gauge  1435 mm
 Track layout  Double line type
 Rotation angle  Any 90°, clockwise or counter clockwise
 Rotation speed  0.2 ~ 2 rpm
 Operation mode  Operation console and Remote
 Installation type  Pit installation required
 Loading capacity  5 tons
 Horizontal clearance between turntable and shop track  Not more than 2 mm
 Vertical clearance between turntable and shop track  Not more than 1 mm
 Noise level during working  ≤ 70 dB
 Power supply  380V/50Hz, 3 phase AC
 Working place  Interior shop

(*Above parameters are indicative and can be modified as per customer's requirement.)



Main Features:

  • The turntable is mainly composed of Zinc patten plate, turntable body, centering device, slew bearing, positioning and locking deivce, castors and electrical control system.
  • The operation of turntable is controled on the console or by the remote.
  • The turntable can be turned in clock wise or counterclock wise and will stop at any 90° as per required.
  • Pit foundation required for installation.
  • The turntable is a mature product and has advantages of advanced technology, reasonable structure, simple operation, safety, reliability and easy maintenance.
  • The turntable is overall steel structure. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure of the turntable reasonable, safe and reliable with good rigidity.
  • The turntable is equipped with reliable safety protection and insurance measures, and grounding device, it has over-current, short-circuit and other protection functions. The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel. The electrical and mechanical parts are provided with moisture-proof, high temperature proof and dust-proof measures.



Technical Documents:
The following technical documents will be supplied along with the turntable when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc.



Cooperation contact:
If you are interested in our machines or any assistance required, please feel free to contact us for more information.



2300mm Electric Railway Turntable Railway Workshop Equipment 0
