11 Roll Metal Sheet Straightening Machine 360 MPa For Plate 20mm Thickness
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Plate Straightening Machine | Usage: | Metal Sheet Plate Straightening |
|---|---|---|---|
| Plate Thickness: | 5~20 Mm | Plate Width: | 500~2000 Mm |
| Plate Yield Strength: | 360 MPa | Number Of Work Rolls: | 11 Pcs |
| Work Roll Layout: | Upper 6pcs, Lower 5pcs | ||
| Highlight: | Siemens PLC Metal Sheet Straightening Machine,360 MPa Metal Sheet Straightening Machine,11 Roll metal sheet straightener |
||

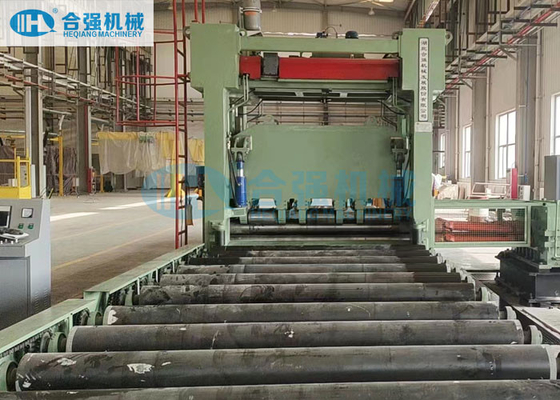

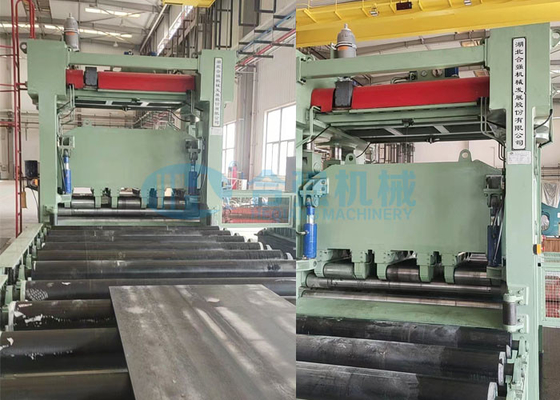

11-Roll Metal Sheet Straightening Machine for Plate with 20mm Thickness
Application scope:
This plate straightening machine is applicable for fine leveling of normal/medium plate, high-precision and high-strength plates.
Technical Parameters:
| Machine type | 11-rolls plate straightening machine |
| Model No. | HQW43-20x2000.11R |
| Maximum plate thickness | 20 mm |
| Minimum plate thickness | 5 mm |
| Maximum plate width | 2000 mm |
| Plate yield limit | 360 MPa |
| Plate Leveling speed | 0~20 m/min, adjusable |
| Number of Work rolls | 11 pcs |
| Work roll layout | Upper 6 rolls and Lower 5 rolls |
| Work roll diameter | 150 mm |
| Roll spacing | 160 mm |
| Support roll quantity | 3 columns |
| Leveling accuracy | 1 m/m2 |
*Above parameters are indicative and can be modified as per customers's actual requirements.)
Machine Features:
- Overall frame welding structure, carried out stress annealing relief treatment after welding. The frame structure with high strength and rigidity.
- With 2-way feeding and repeated leveling function.
- The machine mainly consists of machine frame, movable crossbeam, lower crossbeam, main transmission device, work roll assembly, support roll assembly, downpress mechanism, balance device, electrical control system, and loading/unloading roller table etc.
- Need multiple reciprocating leveling for thin plates.
- The main machine is equipped with side vertical roller to limit the deviation of steel plate during conveying.
- The work rolls and support rolls are all carried out surface hardening treatment and flaw detection.
- All the roll bearings are self-aligning roller bearings.

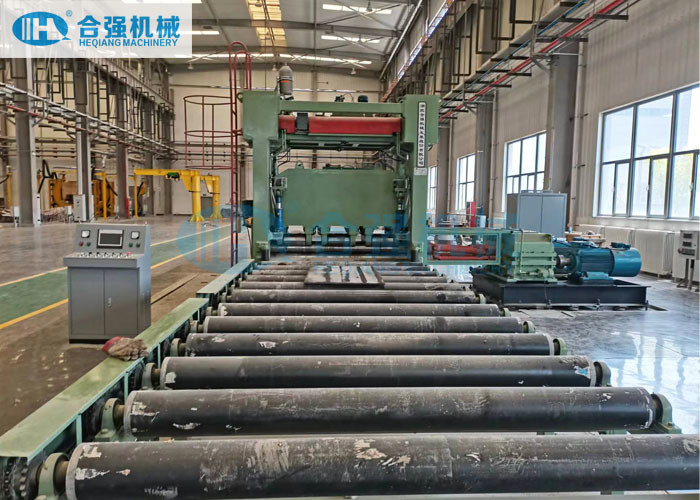

- With Automatic feeding and discharging roller table to facilitate the feeding and exiting of the straightening machine. The feeding roller table is equipped with a plate centering device and the rollers are powered.
- It's suitable for the leveling of medium plate, high-precision and high strength plates.
- Digital display, PLC control. Visual input, edit, modify and store process parameters.
- Siemens PLC and touchscreen to control the operation.
Warranty & After-sale Service:
- One year of free warranty period.
- Our engineers are available for on-site installation and commissioning.
- During the warranty period, our company is responsible for free maintenance, only due to design defects, manufacturing quality, and quality of purchased parts, and provides the required replacement parts (except for consumable parts).
- After the warranty period, spare parts and repairs are chargable.
