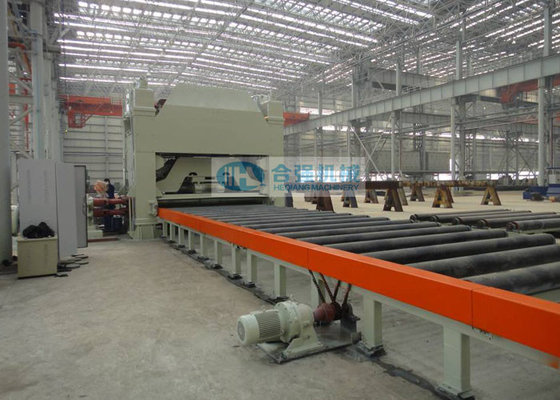

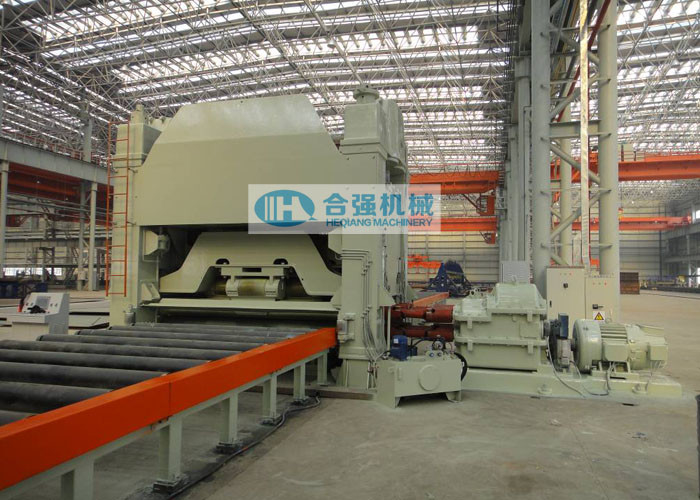

360MPa 50mm Thick Metal Sheet Straightening Machine

360MPa 50mm Thick Metal Sheet Straightening Machine
360MPa 50mm Thick Metal Sheet Straightening Machine 360MPa 50mm Thick Metal Sheet Straightening Machine

Large Image :  360MPa 50mm Thick Metal Sheet Straightening Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQW43
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Product Name: Plate Straightening Machine Usage: Metal Sheet Plate Straightening
Application: Wind Power And Shipbuilding Etc Plate Thickness: 40mm Maximum
Plate Width: 4500mm Maximum Plate Yield Strength: Maximum 360MPa
Work Roll Qty: 7pcs Straightening Accuracy: 1mm/m
High Light:

360MPa metal sheet straightening machine

,

50mm metal sheet straightening machine

,

6m/min 7 Roller plate leveller

7~13 Roller Metal Sheet Plate Straightening Machine 360MPa 50mm Thick



Application scope:

This plate straightening machine is applicable for leveling of normal/medium plate, high-precision and high-strength plates.



Machine Features:

  • t's suitable for the leveling of medium plate, high-precision and high strength plates.
  • The sheets to be levelled can feed from both sides, and leveled repeatly.
  • With two-way feeding and repeated leveling function.
  • Overall steel welding frame structure, carried out stress annealing relief treatment after welding. The frame structure with high strength and rigidity.
  • Mobile crossbeam, working roller and side guide rollers can parallel lift simultaneously; the guide rollers also can parallel lift separately.
  • The main machine is equipped with side vertical roller to limit the deviation of steel plate during conveying.
  • The work rolls and support rolls are all carried out surface hardening treatment and flaw detection.
  • The spacing of work rolls and support rolls are adjustable.
  • All the roll bearings are self-aligning roller bearings.
  • With Automatic feeding and discharging roller table to facilitate the feeding and exiting of the straightening machine. The feeding roller table is equipped with a plate centering device and the rollers are powered.
  • The sheets to be levelled can feed from both sides, and leveled repeatly.
  • Digital display, PLC control. Visual input, edit, modify and store process parameters.



Technical Parameters:

Model No.

Max plate thickness (mm)

Min plate thickness (mm)

Max plate width (mm)

Plate yield limit (Mpa)

Work roll Qty

Work roll diameter (mm)

Work roll spacing (mm)

Leveling speed (m/min)

Main motor power (kW)

HQW43-50x3000

50

12

3000

280

7

420

500

5

140

HQW43-40x3000

40

10

3000

280

7

340

400

5

118

HQW43-36x3000

36

10

3000

280

7

340

400

5

90

HQW43-32x3200

32

8

3200

360

7

260

300

8

90

HQW43-30x3000

30

8

3000

240

9

260

300

8

90

HQW43-30x2500

30

8

2500

360

7

260

300

8

90

HQW43-30x2000

30

8

2000

360

9

260

300

7

90

HQW43-28x2500

28

6

2500

360

7

260

300

8

90

HQW43-25x3200 25 6 3200 360 9 260 300 7 90
HQW43-25x2000 25 5 2000 360 9 220 250 8 75
HQW43-20x3200 20 5 3200 280 9 220 250 8 63
HQW43-20x2500 20 5 2500 360 9 220 250 8 63
HQW43-20x2000 20 5 2000 360 9 200 220 7 63
HQW43-18x2000 18 4 2000 360 11 180 200 7 75
HQW43-16x3200 16 4 3200 360 11 180 200 7 75
HQW43-16x2500 16 4 2500 360 11 180 200 7 75
HQW43-16x2000 16 4 2000 360 11 180 200 8 75
HQW43-16x1500 16 4 150 360 11 160 180 7 63
HQW43-14x1700 14 4 1700 240 7 180 200 6 22
HQW43-12x3200 12 4 3200 360 11 160 180 7 63
HQW43-12x2500 12 3 2500 360 11 150 160 9 63
HQW43-12x2000 12 3 2000 360 11 150 160 9 55
HQW43-12x1250 12 3 1250 360 11 140 150 7 30
HQW43-10x2000 10 2.5 2000 360 13 140 150 8 45
HQW43-6x2000 6 1.5 2000 360 13 95 100 10 45

(*Above parameters are indicative and can be modified as per customers's requirements.)
