Product Details:
Payment & Shipping Terms:
|
| Application: | Railway Workshops | Usage: | Wheelset Dismounting |
|---|---|---|---|
| Max Cylinder Force: | 300 Tons | Number Of Ram Cylinder: | 2pcs (1 Left + 1 Right) |
| Piston Stroke: | 700 Mm | Support Trolley: | One Set, Motorized |
| Operation Mode: | Automatic And Manual | Control: | Siemens PLC |
| Warranty: | One Year | After-sale Service: | Engineers Available For Oversea Service |
| High Light: | 300 Tons Automatic Wheelset Press,Wheelset Dismounting Automatic Wheelset Press,PLC Automatic Wheel Press |
||

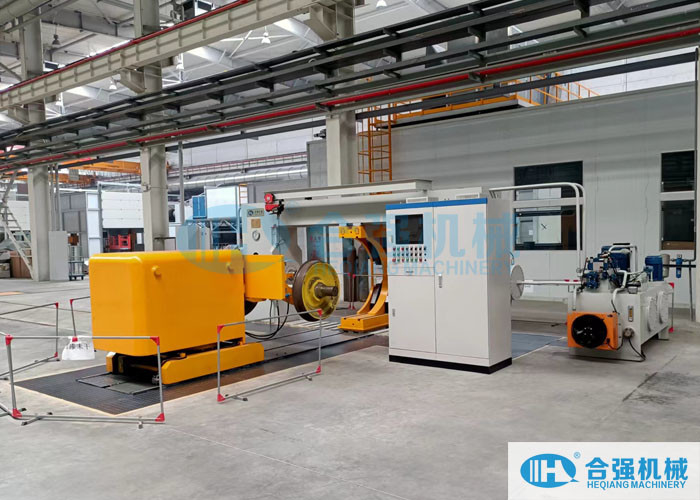

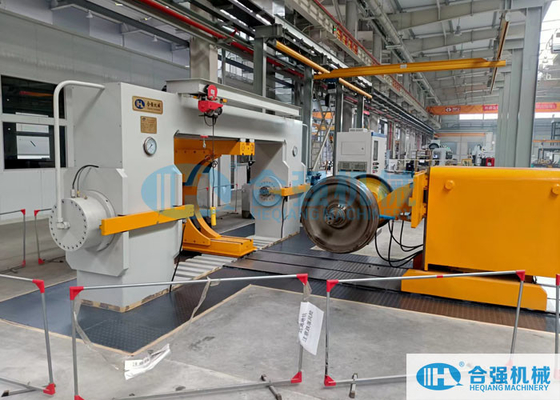

Automatic Wheelset Press for Wheelset Dismounting, with Double Cylinders
Application scope:
This Automatic Wheel Press is used to dismount the wheelset wheels, brake discs and driven gear from the axle for the railway rolling stocks (passenger cars, metros, intercity cars etc.). With a high-pressure oil injection pump for easy wheel dismounting. Only one operator required to complete the operation.
Technical parameters:
| Max. cylinder force | 300 tons |
| Numder of Ram cylinder | 2 pcs (1 left + 1 right) |
| Piston stroke | 700mm |
| Ram approach speed | 0~20 mm/s |
| Ram pressing speed | 0~4 mm/s |
| Axle support trolley | 1 set, Motorized |
| Rotation angle of the trolley | 180° |
| Installed power | approx. 30 kW |
| Maximum Wheelset weight | 2000 kg |
| Track gauge | 1435 mm |
| Applicable Axle length | 2000 ~ 2300 mm |
| Applicable Wheel diameter | Φ770 ~ Φ920 mm |
| Brake disc diameter | Φ550 ~ Φ670 mm |
| Oil injection pump | 1 set |
| Maximum oiling pressure | 200 MPa |
(*Above parameters are indicative, and can be modified as per customer's actual requirements.)
