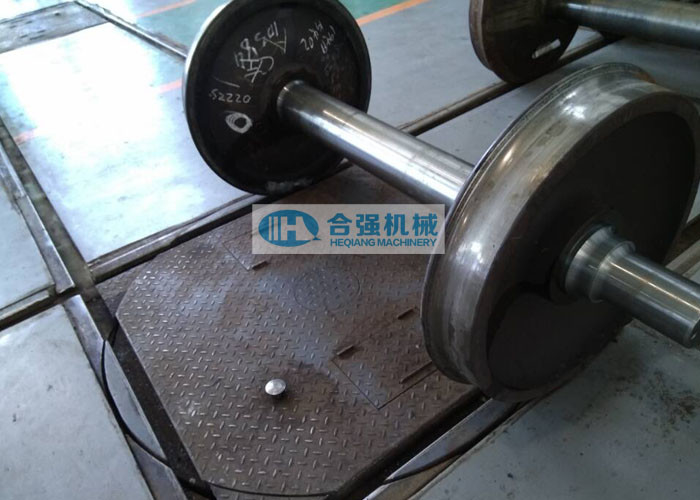

3t Manual Railway Wheelset Turntable Double Cross Track

3t Manual Railway Wheelset Turntable Double Cross Track
3t Manual Railway Wheelset Turntable Double Cross Track

Large Image :  3t Manual Railway Wheelset Turntable Double Cross Track Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ72S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per year
Detailed Product Description
Product Name: Railway Turntable Application: Railway Depot
Usage: Transfer Wheelsets Track Gauge: 1435mm
Track Layout: Double Cross Maximum Capacity: 3000kg
Control: Manual Warranty: One Year
Highlight:

20 Ton wheelset turntable

,

1rpm Railway Turntable Wheelset

,

Turntable Railway Depot Equipment

Manual Railway Wheelset Turntable Railway Depot Equipment

Product Application:
Hubei Heqiang Railway Wheelset Turntable is mainly used to transfer the railway wheelset between the cross tacks in the maintenance depot.





Machine Parameters and Features:

1) Track gauge: 1435 mm

2) Rail track layout: Double cross (# shape)

3) Rotation angle: any 90°, clockwise or counter clockwise

4) Operation mode: Manual

5) Maximum applicable wheelset weight: 3000kg

6) Welded steel structure, with sufficient strength and rigidity

7) Press the button by foot to start the turntable, and will automatically stop once reach 90°.

8) Pit foundation required for installation.



Technical Documents:
The following technical documents will be supplied along with the turntable when delivery in hard copy and soft copy in English language:

  • Operating and maintenance instruction manual
  • General arrangement drawing, Foundation drawing
  • Spare part list, Special tool list
  • Manufacturer Product certificate.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
