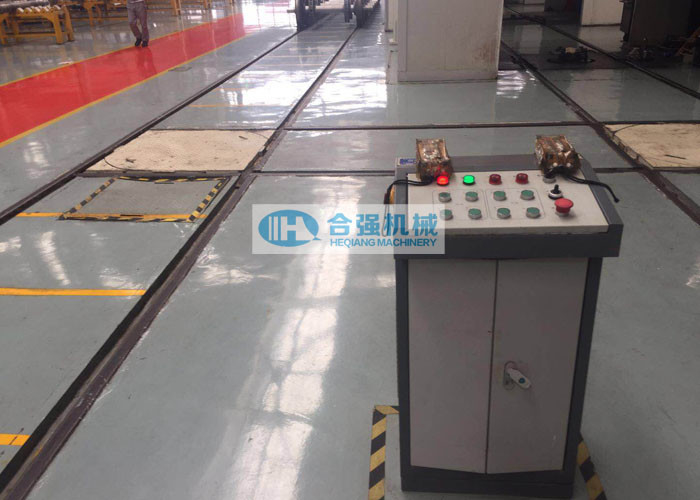

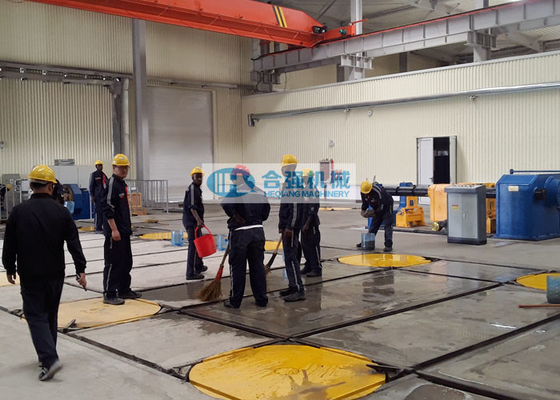

Double Cross Railway Turntable With Console Remote Control

Double Cross Railway Turntable With Console Remote Control
Double Cross Railway Turntable With Console Remote Control
video play

Large Image :  Double Cross Railway Turntable With Console Remote Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ72S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per year
Detailed Product Description
Product Name: Railway Turntable Application: Railway Depot
Usage: Transfer Wheelsets Track Gauge: As Per Required
Track Layout: Double Cross Type Control: Electric Control
Warranty: One Year After-sale Service: Engineers Available For Oversea Service
Highlight:

Double Cross Railway Turntable

,

4kW Railway Turntable

,

1rpm Wheelset Turntable

Railway Wheelset Turntable With Console And Remote Control, Railway Depot Equipment


Product Application:
The Railway Wheelset Turntable is mainly used to transfer the railway wheelset from one track to another track in the maintenance depot. It's electric control.

Technical Parameters:

 Track gauge  1435 mm, 1520 mm or as per required
 Track layout  Double cross (# type)
 Rotation angle:  Any 90°, clockwise or counterclock wise
 Rotation speed:  Not more than 1rpm
 Operation mode:  Console and remote
 Installation type:  Pit installation required
 Loading capacity:  5T, 10T, 15T, 20T as per required
 Horizontal and vertical adjustment error:  ≤ ± 3 mm
 Installed power  4kW
 Noise level during working  ≤ 70dB
 Power supply  3380V/50Hz, 3 phase AC
 Working place  Interior shop

(*Above parameters are indicative and can be modified as per customer's requirement.)



Main Features:

  • The turntable is mainly composed of the patten plate, turntable body, centering device, positioning and locking deivce, castors and power device.
  • Round table structure, stationary speed of rotation, no seizing-up phenomenon.
  • The operation of turntable is controled on the console or by the remote.
  • The turntable can be turned in clockwise or counter clockwise and will stop at any 90° as per required.
  • Pit foundation required for installation.
  • Double cross (#) type track.
  • The turntable is a mature product and has advantages of advanced technology, reasonable structure, simple operation, safety, reliability and easy maintenance.
  • The turntable is overall steel structure. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure of the turntable reasonable, safe and reliable with good rigidity.



Technical Documents:
The following technical documents will be supplied along with the turntable when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
