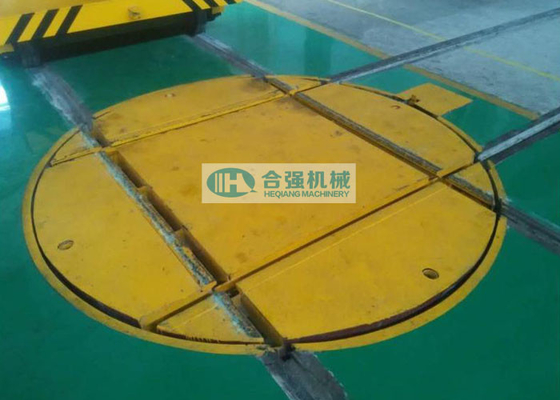

8 Ton 2300mm Railway Turntable For Transfer Wheelsets

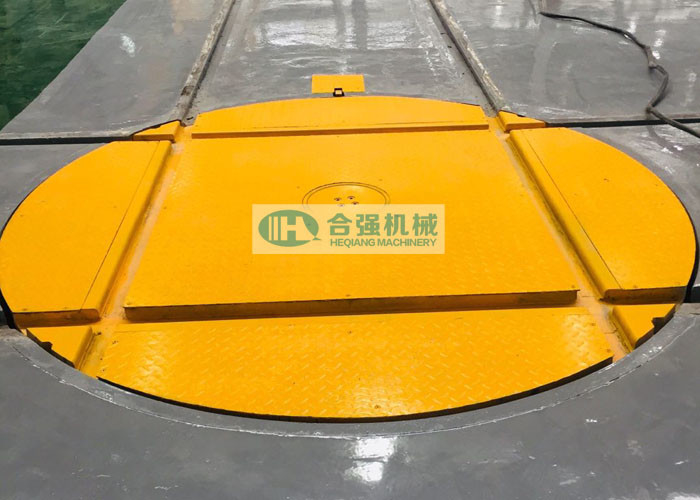

8 Ton 2300mm Railway Turntable For Transfer Wheelsets
8 Ton 2300mm Railway Turntable For Transfer Wheelsets
video play

Large Image :  8 Ton 2300mm Railway Turntable For Transfer Wheelsets Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ72
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 60 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per year
Detailed Product Description
Product Name: Railway Turntable Application: Railway Depots, Rolling Stock Enterprises
Usage: Transfer Wheelsets Turntable Diameter: 2300mm
Track Gauge: 1435 Mm Control: Manual Control
Warranty: One Year After-sale Service: Engineers Available For Oversea Service
High Light:

2280mm Railway Turntable

,

Manual Railway Turntable

,

8t Wheelset Turntable

2300mm Railway Wheelset Turntable Manual Operation With 8 Tons Capacity, Railway Depot Equipment

Product Application:
The Manual Railway Turntable is mainly used for transferring the railway wheelset from one track to another track in the maintenance depot. The turning operation is manual.

Technical Parameters:

 Turntable diameter  2300 mm
 Track gauge  1435 mm
 Track layout  Double cross (#) type
 Rotation angle  Any 90°, clockwise or counter clockwise
 Rotation speed  0.2 ~ 2rpm
 Operation mode  Manual operation
 Installation type  Pit installation required
 Loading capacity  8 tons
 Horizontal clearance between turntable and shop track  Not more than 10 mm
 Vertical clearance between turntable and shop track  Not more than 2 mm
 Noise level during working  ≤ 70 dB
 Power supply  380V/50Hz, 3 phase AC
 Working place  Interior shop

(*Above parameters are indicative and can be modified as per customer's requirement.)



Main Features:

  • The turntable is mainly composed of Zinc patten plate, turntable body, centering device, slew bearing, positioning and locking deivce, 8 castors and wheel stop device.
  • The turntable is overall steel structure. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure of the turntable reasonable, safe and reliable with good rigidity.
  • The operation of turntable is controled manually.
  • When rotate at 90°, it requires the operator to stop and lock the turntable manually.
  • The turntable is provided with wheel stops to stop the wheelset from rolling out during rotation.
  • The turntable can be turned in clock wise or counterclock wise and will stop at any 90° as per required.
  • The turntable is equipped with reliable safety protection and insurance measures, and grounding device, it has over-current, short-circuit and other protection functions. The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel. The electrical and mechanical parts are provided with moisture-proof, high temperature proof and dust-proof measures.



Technical Documents:
The following technical documents will be supplied along with the turntable when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc.



Cooperation contact:
If you are interested in our machines or any assistance required, please feel free to contact us for more information.
