HQ58 Type Railway Gearbox Bearing Press-fitting Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Large Gear Press-fitting Machine | Function: | Bull Gear Bearing Press-fitting |
|---|---|---|---|
| Application: | Railway Depots | Machine Structure: | Vertical Type |
| Pressing Force: | 630kN | Cylinder Stroke: | 500mm |
| Applicable Axle Length: | 2100-2500mm | Installed Power Capacity: | Approx.20 KW |
| Highlight: | railway gearbox bearing press machine,wheelset gear press-fitting equipment,HQ58 type bearing assembly press |
||
HQ58 Type Railway Gearbox Bearing Press-fitting Machine

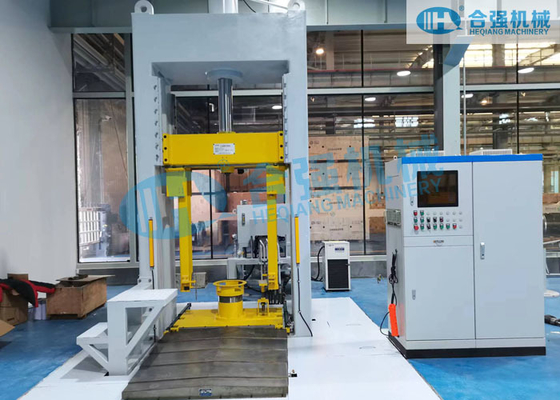

HQ58 Type Railway Gearbox Bull Gear Bearing Press-fitting Machine, Wheelset Large Gear Assembly Press
Application Scope
This machine is designed for press-fitting large gear bearings, oil retaining rings and collector rings of integral and split gearboxes in railway power wheelsets, including in subways and bullet trains.
It features a strong, stable gantry frame with mobile loading/unloading worktable, making operation easy and efficient. The system supports both computer and manual control, with real-time monitoring and data management capabilities. It can press and oil large gears, and adapt to different gear models.
Technical Parameters
| Parameter | Value |
|---|---|
| Nominal pressure | 630 kN (Settable) |
| Upper Cylinder piston stroke | 500 mm |
| Applicable axle length | 2100-2500 mm |
| Accuracy of the piston stroke | ≤ 0.10 mm |
| Pressing speed | 1-5 mm/s (Adjustable) |
| Approach and Return speed of the piston rod | 5-20 mm/s (Adjustable) |
| Positioning accuracy after press-fitting | ± 0.01 mm |
| Loading capacity of the mobile worktable | 2 t |
| Travel stroke of the worktable | 1000 mm |
| Max. working pressure of the hydraulic system | 20 MPa |
| Machine body dimension (LxWxH) | Approx.2400x2300x4600 mm |
| Main power supply | AC 380V/50Hz, 3-phase 5-wire |
| Installed power capacity | Approx.20 kW |
*Remarks: The above parameters are indicative and can be modified as per customer's requirements.
Machine Structure
- The machine is a vertical type press and will be installed in a foundation pit.
- The press mainly consists of machine bed, hydraulic system and electrical control system. The machine bed consists of 4 vertical columns, worktable, support base, fixed column, movable column and centre devices.
- The machine bed is all steel welding structure and carried out stress relief annealing treatment. With sufficient strength and rigidity.
- With Siemens PLC and AdvanTech industrial PC to control the pressing operation.
- The machine is provided with automatic computer and manual control modes, with functions of input and output of various related data and real-time monitoring.
- The pressing force is selectable according to the different axle types.
- Only need to replace the centre devices and block baffle for different types of axle and bull gear.
