350 Ton Locomotive Wheelset Gear Assembly Press

350 Ton Locomotive Wheelset Gear Assembly Press
350 Ton Locomotive Wheelset Gear Assembly Press 350 Ton Locomotive Wheelset Gear Assembly Press 350 Ton Locomotive Wheelset Gear Assembly Press

Large Image :  350 Ton Locomotive Wheelset Gear Assembly Press Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ57
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheelset Gear Assembly Press Application: Railway Depots, Rolling Stock Enterprises
Function: Wheelset Gear Assembly Pressing Force: 350 Tons
Structure Type: Vertical Power Supply: 380V/50Hz, AC 3 Phase
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

350t Locomotive Gear Assembly Machine


31.5MPa Wheelset Gear Assembly Press


11kW Wheelset Gear Assembly Press

Locomotive Gear Assembly Machine With 350 Tons Pressing Force , Railway Wheelset Gear Press Machine

Application scope:
This locomotive gear assembly machine is mainly used to mount and dismount the locomotive driven gear and wheel core

Main Technical Parameters:

 Maximum pressing force  350 tons
 Rated hydraulic system pressure  31.5 MPa
 Inner diameter of the hydraulic cylinder  400 mm
 Max stroke of the hydraulic cylinder piston rod  700 mm
 Ram pressing speed  0~5 mm/s (adjustable)
 Ram fast forward and return speed  5~25 mm/s (adjustable)
 Moving speed of the trolley  50~60 mm/s
 Maximum moving distance of the trolley  1500 mm
 Maximum load capacity of the trolley  1200 kg
 Maximum diameter of the wheel seat to be pressed  270 mm
 Ram positioning accuracy  Not more than 0.1 mm
 Ram re-positioning accuracy  Not more than 0.1 mm
 Displacement control accuracy  Not more than 0.3 mm
 Dimension of the lower work table  1300x1300 mm
 Installed power  11kW
 Main power supply  380V/50HZ, AC 3 phase
 Noise level during working  Not more than 75 dB
 Air source  0.4~0.6 MPa
 Ambient temperature  5℃ ~45
 Relavent humidity  Not more than 90%

(*The detail parameters can be adjusted as per customer's actual requirements.)

Main Features:

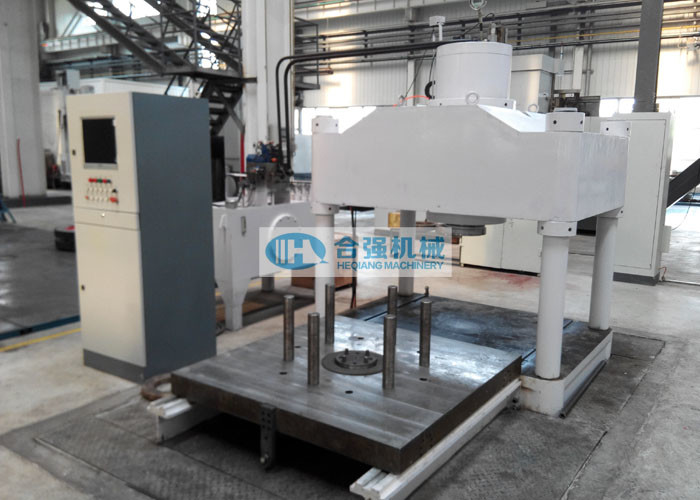

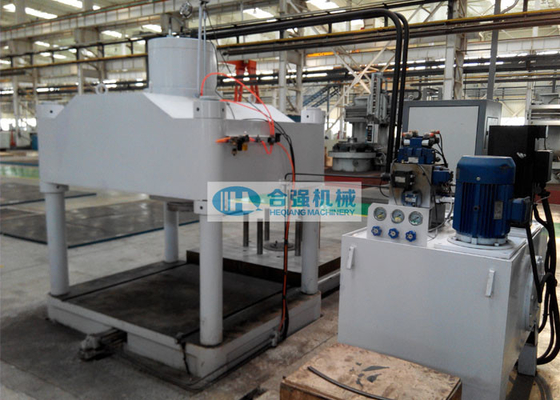

  • The gear assembly machine is mainly composed of upper beam, lower work table, base, 4 pillars, hydraulic system and electrical control system.
  • The press is of 4 pillar frame structure. The upper beam with cylinder and base are connected together through 4 pillars and screws to form a whole structure. The base are fixed onto the ground by anchor bolts.

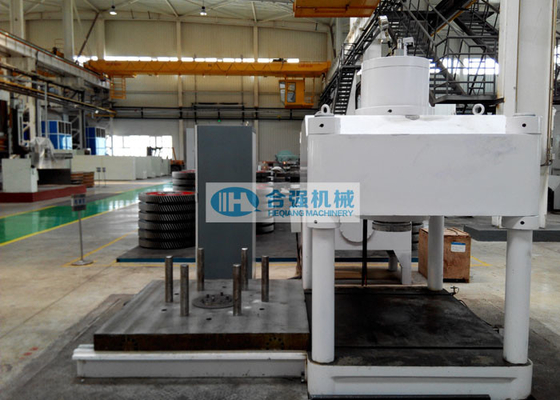

  • Trolley type work platform for the mounting and dismounting of the driven gear and wheel core.
  • Only one operator required to complete the whole dismounting procedures.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.


Technical Documents:

The following technical documents will be supplied along with the wheel gear press machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc


Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
