Railway Bull Gear Press Mounting Machine Wheelset Gear Assembly Press

Railway Bull Gear Press Mounting Machine Wheelset Gear Assembly Press
Railway Bull Gear Press Mounting Machine Wheelset Gear Assembly Press Railway Bull Gear Press Mounting Machine Wheelset Gear Assembly Press

Large Image :  Railway Bull Gear Press Mounting Machine Wheelset Gear Assembly Press Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ59
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude package and Wooden cases
Delivery Time: 150 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheelset Gear Press Machine Function: Bull Gear Assembly
Application: Railway Workshops Machine Structure: Vertical Type
Pressing Force: 630kN Cylinder Stroke: ≥500mm
Daylight: 2200mm Applicable Axle Length: 2100-2500mm
High Light:

Bull Gear Press Mounting Machine

,

Bull Gear Wheelset Gear Assembly Press

,

Railway Press Mounting Machine

Railway Bull Gear Press-Mounting Machine , Wheelset Gear Assembly Press


Application scope of the Wheelset Bull Gear Press:
This Railway Bull Gear Press-Mounting Machine is a special equipment designed for the compaction of the accessories around the bull gear, and the oil pressing of the bull gear of the split type gearboxes. The machine is suitable for the railway vehicles, metros, and light rail wheelsets as well as the assembly of driven gears and bull gears.



Technical Parameters of the Wheel Gear Press Machine:

 Nominal force  630 kN (The force can be set)
 Maximum hydraulic pressure  4-20 MPa
 Cylinder stroke  ≥500 mm
 Opening height (Day-light)  ≥2200 mm
 Applicable axle length  2100-2500 mm
 Mounting stroke accuracy  ≤ 0.10 mm
 Mounting speed  1-5 mm/s
 Approach and Return speed   5-20 mm/s
 Concentricity of the two pressing centres  ≤ 0.08 mm
 Maximum force of the two centres  10 kN
 Machine body dimension (LxWxH)   Approx.2400x2300x4600 mm
 Main power supply  380V/50HZ, AC 3 phase
 Noise level during working  ≤ 75 dB

(*Remarks: The above parameters are indicative and can be modified as per customer's requirements.)

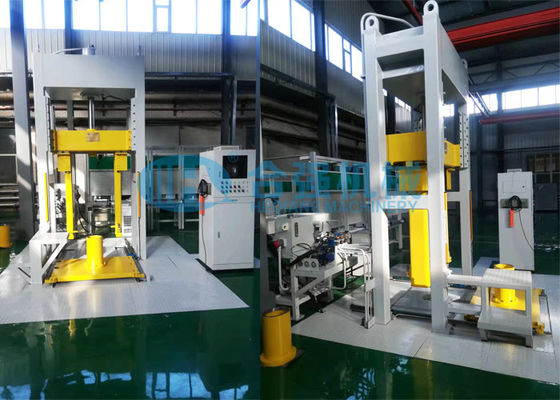

Machine Structure of the Railway Bull Gear Press:

  • The railway bull gear press machine is a vertical type press and will be installed in a foundation pit.
  • The vertical side pull plate gantry frame structure design layout has the advantages of high strength, stable and accurate equipment operation, easy operation, safety and reliability, convenient for workpiece loading and unloading, and small on-site floor space, which is convenient for operators to observe and operate. According to the different axle types, the press force can be selected as per required.

  • Its advanced level and automation level are already the leading level. The machine adopts both computer and manual control, with functions of input and output of various related data and real-time monitoring.

  • The press mainly consists of machine bed, hydraulic system and electrical control system. The machine bed consists of 4 vertical columns, worktable, support base, fixed column, movable column and centre devices.
  • The machine bed is all steel welding structure and carried out stress relief annealing treatment. With sufficient strength and rigidity.
  • Axle center hole positioning.
  • Only need to replace the centre devices and block baffle for different types of axle and bull gear.
  • With Siemens PLC and AdvanTech industrial PC to control the pressing operation.
  • With Germany WIKA pressure sensor and SIKO displacement sensor for data detection.



Warranty & After-sale Service:
The warranty lasts for 1 (one) year from the date of the Site Acceptance Test of the Equipment. During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture. After the warranty period, the Manufacturer will provide a wide range of technical support and spare parts with reasonable prices.
