Aluminium 4m/ Min Sheet Bending Roller Machine Siemens PLC 20MPa
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Plate Bending Machine | Usage: | Aluminium Bending |
|---|---|---|---|
| Plate Thickness: | Max 15 Mm | Plate Width: | Max 2000 Mm |
| Work Roll Qty: | 4 Pcs | Work Roll Material: | 42CrMo Forging |
| Function: | Pre-bending, Bending And Coiling | Operation System: | PLC And Touch Screen |
| Highlight: | 4m/ Min Sheet Bending Roller Machine,PLC Sheet Bending Roller Machine,20MPa Plate Bending Rolling Machine |
||

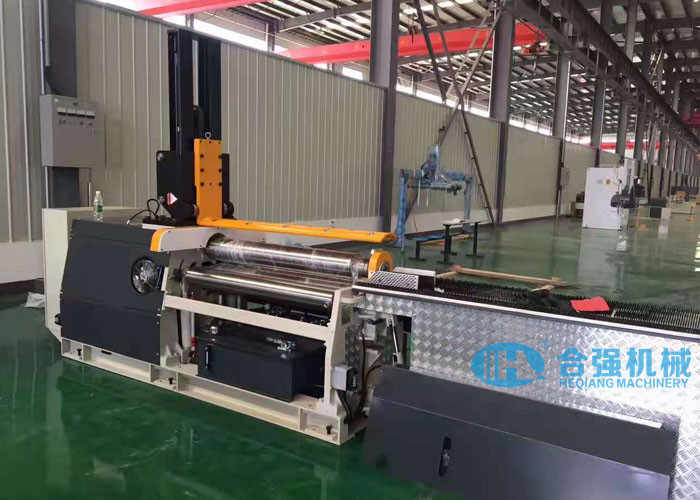

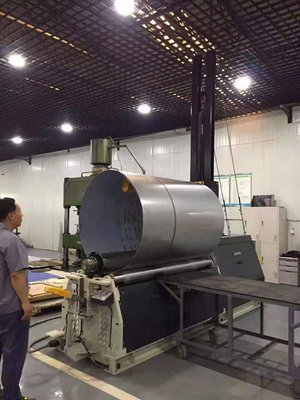

4-Rolls Aluminium Plate Bending Machine With Top Support Siemens PLC
Technical Parameters:
| Machine type | 4-rolls plate bending machine |
| Model No. | HQW12-15x2000 |
| Work roll qty | 4 pcs |
| Max plate thickness | 15 mm |
| Max plate prebending thickness | 15 mm |
| Max plate width | 2000 mm |
| Diameter of Upper roll | 220 mm (1pc) |
| Diameter of Lower roll | 200 mm (1pc) |
| Diameter of side rolls | 160 mm (2pcs) |
| Material of the work rolls | 42CrMo forging piece |
| Plate yield limit | 245 MPa |
| Rolling diameter | 1600 ~ 4000 mm |
| Length of residual straight edge | 1.5 times of plate thickness |
| Plate rolling speed | Approx.4m/ min |
| Max pressure of hydraulic system | 20MPa |
| Drive mode of the work rolls | Hydraulic motor + Planetary gear reducer |
| Lifting of the work rolls | Hydraulic lifting |
*Above parameters are indicative and can be modified as per customers's actual requirements.)
Machine Features:
- The 4-roll plate bending rolling machine has the functions of pre-bending and rounding It’s mainly composed of chassis, overturning side frame, fixed side frame, 4 work rolls, driving device, lifting device of lower and side rolls, overturning device, upper roll balance device, hydraulic system, electric control system, Top Support and etc.
- The upper and lower rollers are driving rollers. Through the hydraulic motor, planetary reducer meshing with the upper and lower rollers, the power will provide torques for plate bending.
- The lower roller can move vertically to clamp the plate. The side rollers are provided on both sides of the lower roller. It can be driven by hydraulic cylinders for diagonal lifting movement.
- All four rollers adopt spherical roller bearings. The advantage of this machine is that it can complete the pre-deformation of the plate ends and roll the cylindrical and arc shapes at one time without the aid of auxiliary devices. It can also perform certain shaping and leveling work on the metal sheet with small remaining straight edges.
- The lifting of the lower and side rollers are driven by hydraulic cylinders. Quick lifting under non-load while slow lifting under load.
- The machine is provided with measures to prevent the steel plate from slipping. Each motor is equipped with an instant brake, so that the roller can stop rotating accurately during bending, ensure the precise positioning of the plate end, and prevent the plate from slipping off the machine, and minimize the remaining straight edges.
- With Top support to support the bended cylindrical shape.
- Siemens PLC NC system
- With function of plate bending and coiling.
