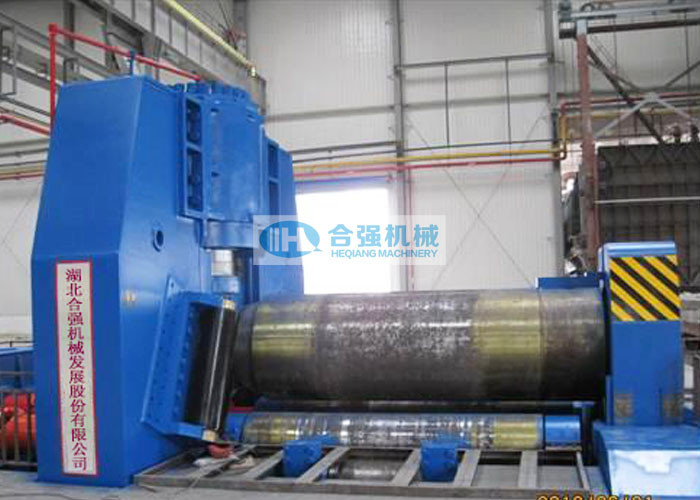

3 Roller Symmetrical Plate Bending Rolling Machine

3 Roller Symmetrical Plate Bending Rolling Machine
3 Roller Symmetrical Plate Bending Rolling Machine

Large Image :  3 Roller Symmetrical Plate Bending Rolling Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQW11
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 10 sets per year
Detailed Product Description
Product Name: Plate Bending Machine Usage: Metal Sheet Plate Bending
Application: Shipbuilding,boiler,Chemical Machinery Etc Plate Thickness: 50mm Maximum
Plate Width: 3200mm Maximum Plate Yield Strength: 245MPa
Work Roll Qty: 3pcs Rolling Speed: 5m/min
High Light:

Symmetrical plate bending rolling machine

,

5m/min plate bending rolling machine

,

50mm 3 roll bending machine

3 Roller Symmetrical Plate Bending Machine Fully Hydraulic Drive Plate Rolling Machine



Machine Features:

  • Hydraulic symmetrical three roll plate bending machine
  • This plate rolling machine is fully hydraulic drive, convenient operation, reliable operation. It's used in a wide range of applications, such as the boiler, shipbuilding, petrochemical, metal structure, cement machinery, chemical machinery, machinery manufacturing and maintenance industries.
  • The 2 lower work rolls are the main drive rolls.
  • The lower rolls adopt double main motor for drive. They can rotate forward and backward, and can move horizontally. Horizontal movement adopts mechanical transmission.
  • The upper roll is the driven roll. It can move up and down.
  • The work rolls are manufactured of 42CrMo forgings with hardness HB260~300.
  • All work rolls adopt new type rolling mill rolling bearings.
  • The main cylinder at fixed side rack is upper positioned and the main cylinder at overturned side rack is down positioned.
  • The machine is provided with the pre-bending function.
  • With coiling function.
  • Digital display, PLC control. Visual input, edit, modify and store process parameters.



Technical Parameters:

Model No.

Maximum

bending

thickness (mm)

Max plate width

(mm)

Plate yield limit

(Mpa)

Upper roll diameter

(mm)

Main motor power

(kW)

Overall dimension

(mm)

HQW11-90x4000

90

4000

245

850

45x2

9600x4920x4450

HQW11-80x3000

80

3000

245

780

37x2

8200x4480x4200

HQW11-70x3000

70

3000

245

750

30x2

7620x3350x3230

HQW11-70x2500

70

2500

245

680

26x2

7000x3700x3600

HQW11-60x3000

60

3000

245

660

26x2

6700x3550x3480

HQW11-60x2500

60

2500

245

620

26x2

6200x3300x3310

HQW11-50x3000

50

3000

245

600

26x2

6340x3280x3290

HQW11-50x2500

50

2500

245

550

22x2

5800x3350x2600
HQW11-50x2000 50 2000 245 500 13x2 5300x3250x2450
HQW11-40x4000 40 4000 245 600 26x2 7280x3350x2530
HQW11-40x3200 40 3200 245 550 13x2 6780x1620x2050
HQW11-40x3000 40 3000 245 530 13x2 5820x2640x2720
HQW11-40x2500 40 2500 245 500 13x2 5860x1620x2050
HQW11-40x2000 40 2000 245 460 13x2 5360x1500x1950
HQW11-35x3000 35 3000 245 500 13x2 5950x1960x2250
HQW11-35x2500 35 2500 245 480 13x2 5500x1860x2100
HQW11-30x3200 30 3200 245 480 13x2 6300x1900x2100
HQW11-30x3000 30 3000 245 460 13x2 5280x2290x2470
HQW11-30x2500 30 2500 245 420 9x2 4780x2140x2350
HQW11-30x2000 30 2000 245 400 9x2 4350x1920x1900
HQW11-25x3000 25 3000 245 400 9x2 5300x2050x1960
HQW11-25x2000 25 2000 245 340 6.3x2 4220x1760x1690
HQW11-20x2500 20 2500 245 340 6.3x2 4720x1760x1700

(*Above parameters are indicative and can be modified as per customers's actual requirements.)
