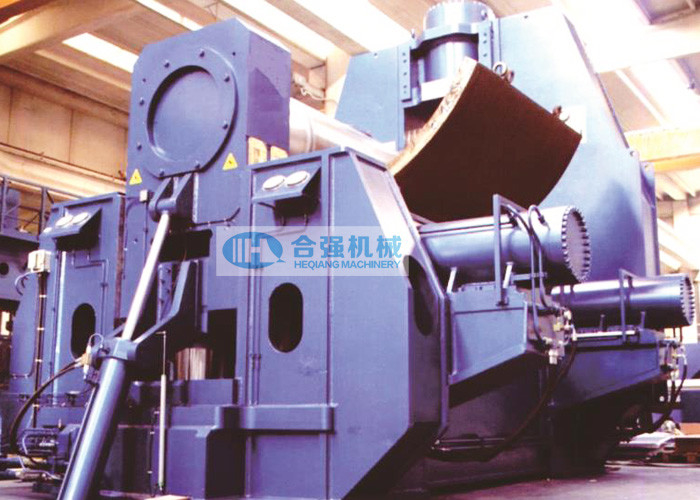

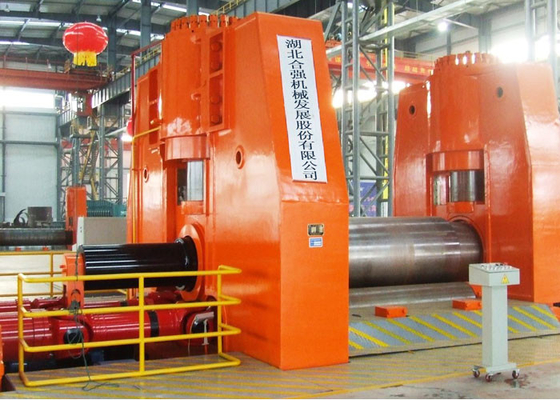

Large Scale Hydraulic 3 Roll Metal Plate Bending Machine

Large Scale Hydraulic 3 Roll Metal Plate Bending Machine
Large Scale Hydraulic 3 Roll Metal Plate Bending Machine Large Scale Hydraulic 3 Roll Metal Plate Bending Machine

Large Image :  Large Scale Hydraulic 3 Roll Metal Plate Bending Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQW11S-160x3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 210 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 10 sets per year
Detailed Product Description
Product Name: Plate Bending Machine Usage: Metal Sheet Plate Bending
Application: Wind Power And Shipbuilding Etc Plate Thickness: 160mm Maximum
Plate Width: 3500mm Maximum Plate Yield Strength: 245MPa
Work Roll Qty: 3pcs Rolling Speed: 4m/min
High Light:

Hydraulic Metal plate bending machine

,

160mm Metal plate bending machine

,

4m/min metal plate roller

Large Scale 3 Roller Plate Bending Machine Level Down type NC control Plate Rolling Machine



Machine Features:

  • Level down type three roll plate bending machine
  • With plate bending and coiling function.
  • With plate pre-bending function.
  • Full hydraulic drive.
  • All work rolls are the main drive rolls.
  • The lower rolls adopt double main motor for drive. They can rotate forward and backward, and can move horizontally. Horizontal movement adopts mechanical transmission.
  • The work rolls both adopt new type rolling mill rolling bearings.
  • All work rolls are 42CrMo steel forgings, carried out overall quenching and tempering treatment. The hardness is HQ260~300.
  • Both side oil cylinders are upper positioned. Or One cylinder upper positioned and the other down positioned.
  • The leveling and movement of the upper and lower rolls, the reset of the inverted head rack and the automatic adjustment are achieved by numerical control.
  • The bending machine is equipped with a simple and reliable alignment device. (It's also applicable for hot rolling.)
  • The machine has perfect self-locking and interlock protection functions, and has automatic power-off protection device to ensure the safety of operators and equipment.
  • The operating system of the rolling machine has enough operation prompt, alarm display and fault reason display, so that the operator can quickly remove the fault.
  • Digital display, PLC control. Visual input, edit, modify and store process parameters.



Technical Parameters:

Model No.

Maximum

bending

thickness (mm)

Maximum

pre-bend thickness

(mm)

Max plate width

(mm)

Motor power

(kW)

Overall

dimension

(mm)

HQW11S-380x4000

380

350

4000

900

12950x9800x9500

HQW11S-270/360x3500

270/360

240/330

3500

597.5

12490x7070x8520

HQW11S-240/280x3500

240

215

3500

284+89

12200x6650x7600

HQW11S-200/300x3500

200

180

3500

665

12180x6270x7400

HQW11S-160/250x3500

160/250

140/220

3500

220+95

11480x5720x6880

HQW11S-150/220x3000

150/220

130/180

3000

220+89

10930x5900x6640

HQW11S-200x4500

200

170

4500

220+75

12880x7500x7290

HQW11S-200x3000

200

180

3000

220+93.7

12100x6160x7460
HQW11S-190x4000 190 160 4000 270 12150x6800x7300
HQW11S-180x4000 180 160 4000 264 12050x6790x7100
HQW11S-180x3000 180 170 3000 220+93.7 10950x5920x6360
HQW11S-170x4000 170 140 4000 220+87.5 11900x6590x7000
HQW11S-170x3000 170 150 3000 220+84.2 10950x5290x6360
HQW11S-160x4000 160 140 4000 220+87.5 11470x6200x6990
HQW11S-160x3000 160 140 3000 180+79.2 10620x5450x6400
HQW11S-150x4000 150 130 4000 220+87.5 10960x5940x6700
HQW11S-150x3000 150 135 3000 150+84.2 10430x4970x5850
HQW11S-140x4000 140 125 4000 170+46.2 10620x4970x5890
HQW11S-140x3000 140 125 3000 126+39.2 10350x4990x6330
HQW11S-130x4000 130 115 4000 126+46.2 10560x4740x5890
HQW11S-130x3000 130 115 3000 126+39.2 9070x4690x6110
HQW11S-120x4000 120 110 4000 126+46.2 10510x4740x5810
HQW11S-120x3000 120 110 3000 126+39.2 8880x4360x4960
HQW11S-110x4000 110 100 4000 126+46.2 10300x4770x5140
HQW11S-110x3000 110 100 3000 110+39.2 8860x4160x4960
HQW11S-100x4000 100 90 4000 110+41 10110x4410x5050
HQW11S-100x3000 100 90 3000 104+32.2 8600x4160x4490
HQW11S-90x4000 90 80 4000 104+15 9310x3660x4440
HQW11S-90x3000 90 80 3000 74+32.2 8280x3990x4470
HQW11S-80x4000 80 70 4000 70+15 8930x4590x4020
HQW11S-80x3000 80 70 3000 60+32.2 8040x3950x3940
HQW11S-70x4000 70 60 4000 60+15 8980x3320x3680
HQW11S-70x3000 70 60 3000 60+24.1 7980x3320x3680

(*Above parameters are indicative and can be modified as per customers's actual requirements.)
