Hydraulic 4 Roller Hydraulic Plate Rolling Machine With Top And Side Support

Name: Hydraulic 4 Roller Hydraulic Plate Rolling Machine With Top And Side Support
Brand: Heqiang Machinery
SKU: HQW12
Rating: 4.8 (168 reviews)

Large Image : Hydraulic 4 Roller Hydraulic Plate Rolling Machine With Top And Side Support Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQW12

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	180 days after advance payment & design finalization
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per year

Contact Now

Detailed Product Description

Product Name:	Plate Bending Machine	Usage:	Metal Sheet Plate Bending
Work Roll Qty:	4 Pcs	Work Roll Material:	42CrMo Forging
Main Drive:	Upper Roll And Lower Roll	Drive Mode:	Hydraulic Drive
Function:	Pre-bending, Bending And Coiling	Operation System:	PLC And Touch Screen
High Light:	18.5kW hydraulic plate rolling machine , 25mm hydraulic plate rolling machine , ISO9001 4 roll plate roller

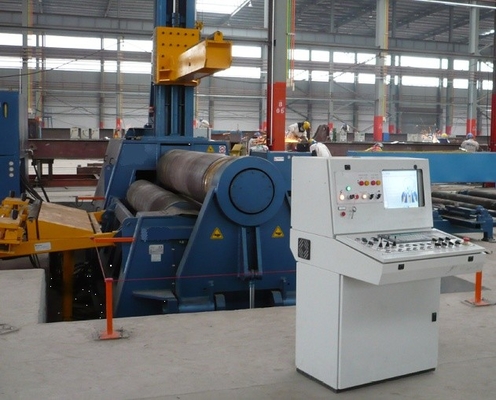

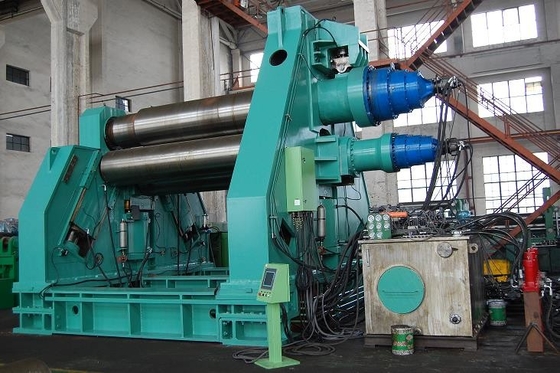

4 Roller Plate Bending Machine Full Hydraulic Controled Plate Rolling Machine With Top And Side Support

Machine Features:

Full hydraulic micro controled four-roll plate bending machine.
With function of pre-bending and bending.
With function of coiling for optional.
One-time feeding to complete the plate pre-bending and bending work.

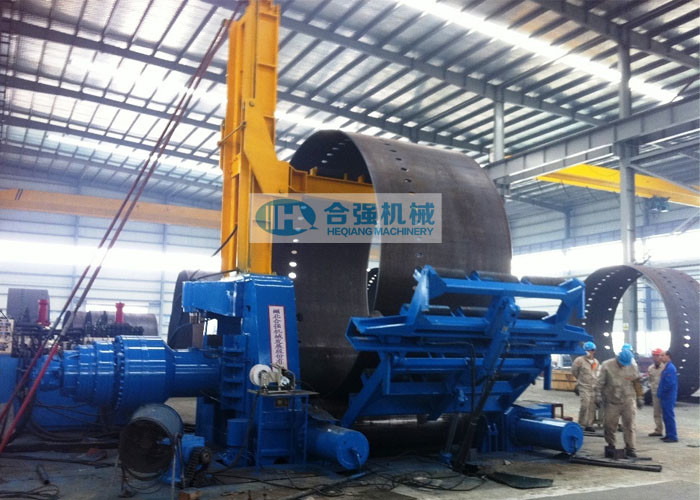

The top support, side support and feeding table are optional as per client's requirement.
The upper roll and the lower roll are the main drive rolls. The power is meshed with the upper and lower rolls through the hydraulic motor and planetary reducer to provide torque for the plate rolling.
The upper roll position is fixed and the lower roll can move up and down.
All work rolls both adopt new type rolling mill rolling bearings.
All work rolls are manufactured of 42CrMo forgings with hardness HB260~300.
One time feeding to complete the pre-bending of both ends of the plate and the cylindrical and arc rolling without the help of auxiliary device. It can also carry out certain shaping and leveling of the sheet metal, and the remaining straight edge is small.
Digital display, PLC control. Visual input, edit, modify and store process parameters.

Technical Parameters:

Model No.	Maximum bending thickness (mm)	Maximum pre-bend thickness (mm)	Max plate width (mm)	Plate yield limit (Mpa)	Upper roll diameter (mm)	Lower roll diameter (mm)	Side roll diameter (mm)	Motor power (kW)
HQW12-180x3000	180	160	3000	245	1300	1200	980	320
HQW12-160x3000	160	140	3000	245	1200	1100	900	260
HQW12-120x3000	120	100	3000	245	1050	950	780	160
HQW12-100x3000	100	85	3000	245	950	880	700	90
HQW12-90x3000	90	80	3000	245	900	820	660	90
HQW12-80x3000	80	70	3000	245	850	780	620	75
HQW12-70x3000	70	60	3000	245	800	750	600	75
HQW12-60x3000	60	50	3000	245	750	710	560	75
HQW12-50x3000	50	40	3000	245	720	650	520	55
HQW12-50x2500	50	40	2500	245	650	620	500	55
HQW12-40x3000	40	36	3000	245	650	580	480	55
HQW12-40x2500	40	35	2500	245	560	520	420	45
HQW12-30x3000	30	25	3000	245	560	520	420	45
HQW12-30x2500	30	25	2500	245	480	470	390	37
HQW12-30x2000	30	25	2000	245	430	400	320	37
HQW12-25x2500	25	20	2500	245	430	400	320	37
HQW12-25x2000	25	16	2000	245	380	360	280	30
HQW12-20x2500	20	16	2500	245	380	360	280	30
HQW12-20x2000	20	16	2000	245	340	330	260	22
HQW12-16x3200	16	12	3200	245	380	360	280	30
HQW12-16x2500	16	12	2500	245	340	330	260	22
HQW12-16x2000	16	12	2000	245	300	280	220	18.5
HQW12-12x2500	12	10	2500	245	300	280	220	18.5
HQW12-12x2000	12	10	2000	245	280	260	200	18.5
HQW12-8x2500	8	6	2500	245	250	230	180	11
HQW12-8x2000	8	6	2000	245	235	215	165	11
HQW12-6x2500	6	6	2500	245	230	210	165	7.7
HQW12-6x2000	6	6	2000	245	200	180	145	5.5
