Railway Double Cylinders Wheelset Gear Assembly Press

Railway Double Cylinders Wheelset Gear Assembly Press
Railway Double Cylinders Wheelset Gear Assembly Press Railway Double Cylinders Wheelset Gear Assembly Press

Large Image :  Railway Double Cylinders Wheelset Gear Assembly Press Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ59
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheelset Gear Assembly Press Function: Wheelset Gear Disassembly
Application: Railway Workshop Ram Cylinder: Double Cylinders
Pressing Force: 315 T Control: PLC+industrial Computer
Operation: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

315t Wheelset Gear Assembly Press

,

OEM Wheelset Gear Assembly Press

,

Railway Wheel Gear Dismount Press

Automatic Railway Wheel Gear Dismount Press With Double Cylinders

Application scope:
This automatic railway wheel gear dismount press machine is used to dismount the large gear and its surrounding components of gearbox off from the axle. Automatically displacement detection, generate record, save and printing of the pressing curve. It's only required one operator is required to operate the press.

Technical Parameters:

 Maximum cylinder force  315 tons
 Ram cylinder Qty  2 sets
 Cylinder stroke  0~700 mm
 Pressing speed of the cylinder piston  0~300 mm/min, variable
 Fast forward and Return speed of the cylinder piston  1000 mm/min, variable
 Concentricity of cylinders' centerline (by measurement)  Not more than 0.4 mm
 Max load of the centre device  2000 kg
 Stroke control accuracy  Not more than 0.1 mm
 Re-positioning accuracy  Not more than 0.1 mm
 Maximum hydraulic system pressure  26 MPa
 Maximum capacity of the loading/unloading support carriage  2500 kg
 Max capacity of the high-pressure injection pump  200 MPa
 Main power supply  380V/50HZ, AC 3 phase
 Noise level during working  Not more than 75 dB
 Ambient temperature  5℃ ~40
 Relavent humidity  Not more than 90%

(*The detail parameters can be adjusted as per customer's requirements.)


Main Features:

  • The Wheelset Gear Dismount Press will be installed in a foundation pit.
  • Double head cylinders for dismounting.
  • The press is mainly composed of horizontal gantry frame, main cylinders, loading and unloading support carraige, displacement detection device, hydraulic system, electrical control system, high-pressure injection equipment and the relavent toolings etc.
  • The main body is all steel welding structure and carried out stress relief annealing treatment. With sufficient strength and rigidity.
  • Axle center hole positioning.
  • With Automatic and Manual operation mode for optional.
  • Equipped with Siemens S7 PLC and AdvanTech industrial computer to control the pressing operation.
  • With high-precision pressure sensor and displacement sensor for signal collection.
  • Automatically generate, record, save and print the pressing curve in the required format.
  • Only one operator required to complete the whole dismounting procedures.
  • Equipped with wheelset loading and unloading support carraige to deliver the wheelset into the machine, maximum support capacity 2.5 tons.
  • Equipped with a mobile high-pressure injection pump (Germany MAXIMATOR). Injection capacity of 200MPa.
  • Equipped with leak oil collection device.



Technical Documents:

The following technical documents will be supplied along with the wheel press machine when delivery in three hard copy and one soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, packing list, etc



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.



Cooperation contact:
If you are interested in our machines or any assistance required, please feel free to contact us for more information.

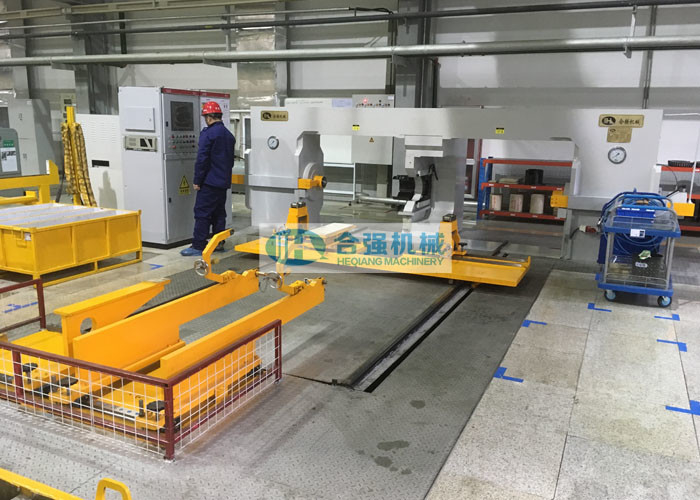

Railway Double Cylinders Wheelset Gear Assembly Press 0

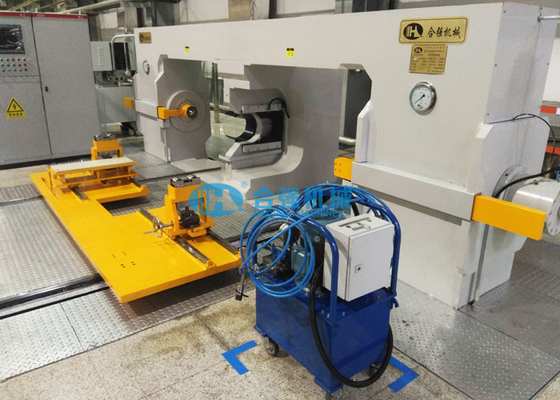

Railway Double Cylinders Wheelset Gear Assembly Press 1
