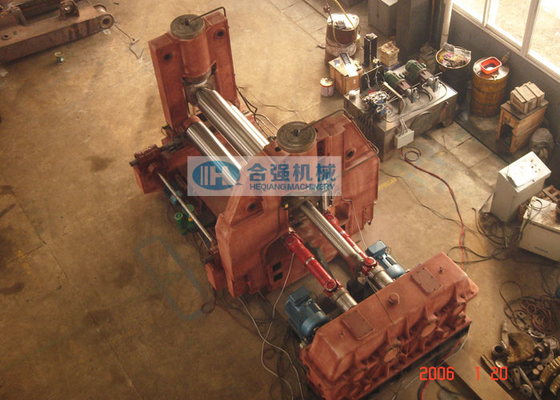

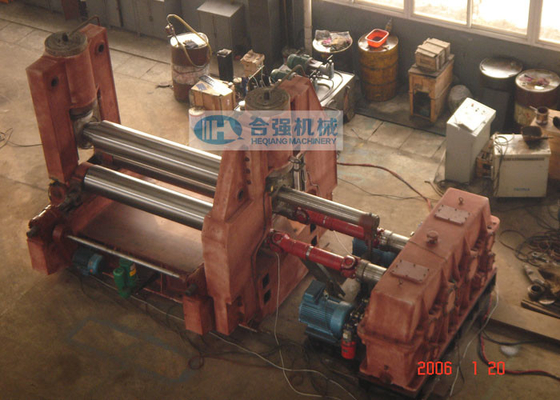

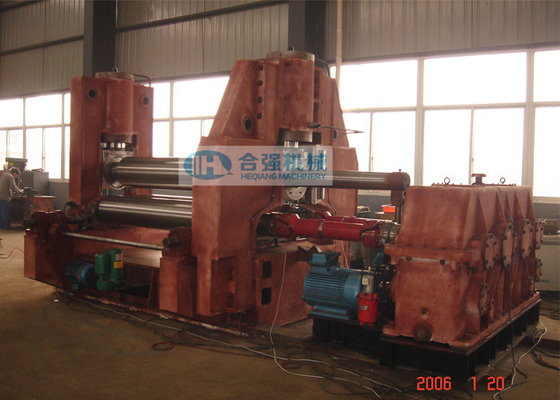

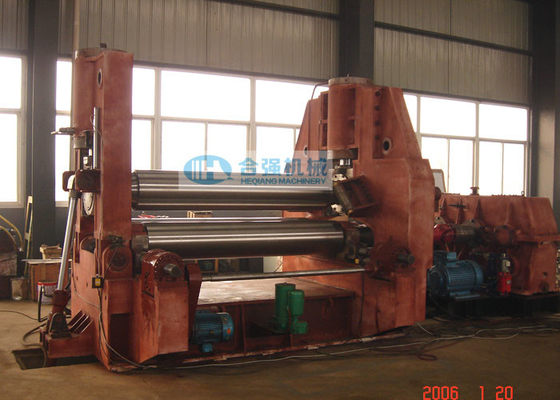

Three Roller Level Down Type Plate Roll Bending Machine With Pre Bending

Name: Three Roller Level Down Type Plate Roll Bending Machine With Pre Bending
Brand: Heqiang Machinery
SKU: HQW11S
Rating: 4.6 (163 reviews)

Large Image : Three Roller Level Down Type Plate Roll Bending Machine With Pre Bending Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQW11S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export packing
Delivery Time:	180 days after advance payment & design finalization
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per year

Contact Now

Detailed Product Description

Product Name:	Plate Bending Machine	Usage:	Metal Sheet Plate Bending
Application:	Wind Power And Shipbuilding Etc	Plate Thickness:	50mm Maximum
Plate Width:	3000mm Maximum	Plate Yield Strength:	245MPa
Work Roll Qty:	3pcs	Rolling Speed:	4m/min
High Light:	4m/min steel plate bending machine , 50mm plate roll bending machine , 245MPa plate roll bending machine

Three Roller Level Down Type Plate Bending Machine With Pre-bending Plate Rolling Machine

Machine Features:

Level down type three roll plate bending machine
With plate bending and coiling function.
With the pre-bending function.
The 2 lower work rolls are the main drive rolls.
The lower rolls adopt double main motor for drive. They can rotate forward and backward, and can move horizontally. Horizontal movement adopts mechanical transmission.
The upper roll is the driven roll. It can move vertically.
The work rolls both adopt new type rolling mill rolling bearings.
Both side main cylinders are upper positioned.
Digital display, PLC control. Visual input, edit, modify and store process parameters.

Technical Parameters:

Model No.	Maximum bending thickness (mm)	Maximum pre-bend thickness (mm)	Max plate width (mm)	Plate yield limit (Mpa)	Upper roll diameter (mm)	Main motor power (kW)
HQW11S-90x3000	90	80	3000	245	830	45x2
HQW11S-80x3200	80	70	3200	245	780	37x2
HQW11S-80x3000	80	70	3000	245	780	37x2
HQW11S-70x3000	70	60	3000	245	720	30x2
HQW11S-70x2500	70	60	2500	245	660	30x2
HQW11S-60x3000	60	50	3000	245	660	26x2
HQW11S-60x2500	60	50	2500	245	600	22x2
HQW11S-50x3000	50	40	3000	245	600	22x2
HQW11S-50x2500	50	40	2500	245	560	18.5x2
HQW11S-40x3000	40	30	3000	245	550	15x2
HQW11S-30x3000	30	25	3000	245	480	13x2
HQW11S-25x2500	25	18	2500	245	400	9x2
