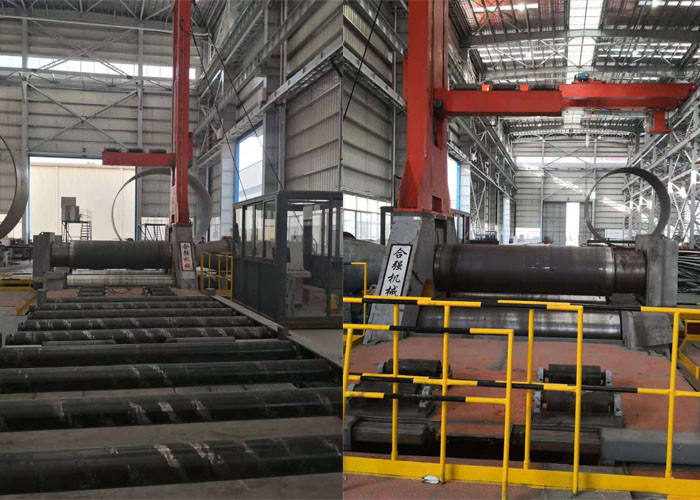

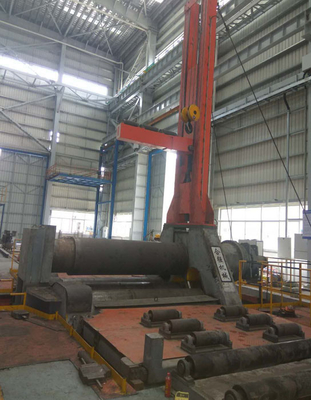

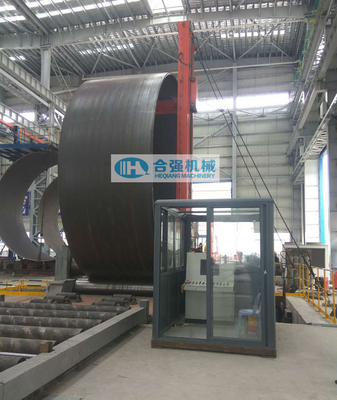

4m/min 120mm Plate Bending Machine , 4 Roller Plate Rolling Machine

4m/min 120mm Plate Bending Machine , 4 Roller Plate Rolling Machine
4m/min 120mm Plate Bending Machine , 4 Roller Plate Rolling Machine 4m/min 120mm Plate Bending Machine , 4 Roller Plate Rolling Machine 4m/min 120mm Plate Bending Machine , 4 Roller Plate Rolling Machine

Large Image :  4m/min 120mm Plate Bending Machine , 4 Roller Plate Rolling Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQW12-120x3200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 10 sets per year
Detailed Product Description
Product Name: Plate Bending Machine Usage: Metal Sheet Plate Bending
Application: Wind Power And Shipbuilding Etc Plate Thickness: 120mm Maximum
Plate Width: 3200mm Maximum Plate Yield Strength: 345MPa
Work Roller Qty: 4pcs Rolling Speed: 4m/min
High Light:

120mm Plate Bending Machine

,

245MPa Plate Bending Machine

,

4m/min 4 roller plate rolling machine

120mm Thick Plate 4 roller Plate Rolling Machine NC Controlled Hydraulic Drive


Machine Features:

  • NC controlled Hydraulic drive four-roll plate bending machine.
  • With plate bending and coiling function
  • With plate pre-bending function.
  • With top support, side support and automatic feeding table.
  • One-time feeding to complete the plate pre-bending and bending work.
  • The upper roll and the lower roll are the main drive rolls. The power is meshed with the upper and lower rolls through the hydraulic motor and planetary reducer to provide torque for the plate rolling.
  • The upper roll position is fixed. The lower roll can move up and down, so as to clamp the plate.
  • All work rolls both adopt new type rolling mill rolling bearings.
  • All work rolls are manufactured of 42CrMo forgings with hardness HB260~300.
  • One time feeding to complete the pre-bending of both ends of the plate and the rolling of cylindrical and arc shell without the help of auxiliary device. It can also carry out certain shaping and leveling of the sheet metal, and the remaining straight edge is small.
  • Digital display, PLC control. Visual input, edit, modify and store process parameters.



Main Technical Parameters:

 Machine type  Four rolls plate bending machine NC controlled Hydraulic drive
 Model No.  HQW12-120x3200
 Work roll qty  4pcs (One upper roll, one lower roll and two side rolls)
 Diameter of Upper roll  930 mm
 Diameter of Lower roll  770 mm
 Diameter of Side rolls  630 mm
 Downforce of Upper roll  1700 tons
 Maximum plate rolling thickness  120 mm (Q345 plate)
 Maximum pre-bending thickness  80 mm (Q345 plate)
 Maximum plate width  3200 mm (Q345 plate)
 Plate yield limit  345 MPa
 Minimum rolling diameter  4000 mm (under full load)
 Length of Residual straight edge  2.5 time of plate thickness
 Plate rolling speed  approx.4 m/min
 Total installed power  approx.650 kW
 Side roll lifting type  Inclined straight line lifting
 Upper roll drive mode  Hydraulic motor and Planetary reducer
 Lower roll drive mode  Hydraulic motor and Planetary reducer
 Cooling mode of hydraulic oil  Cooling air condition
 Automatic feeding table

 Hydraulic drive roll table, with centering device.

 Max load 45 tons.

 Top support  It can support the cylinder shell in Φ4~8m within weight 45 tons.
 Side supports  Each support at both feeding and discharging side

*Above parameters are indicative and can be modified as per customers's actual requirements.)
