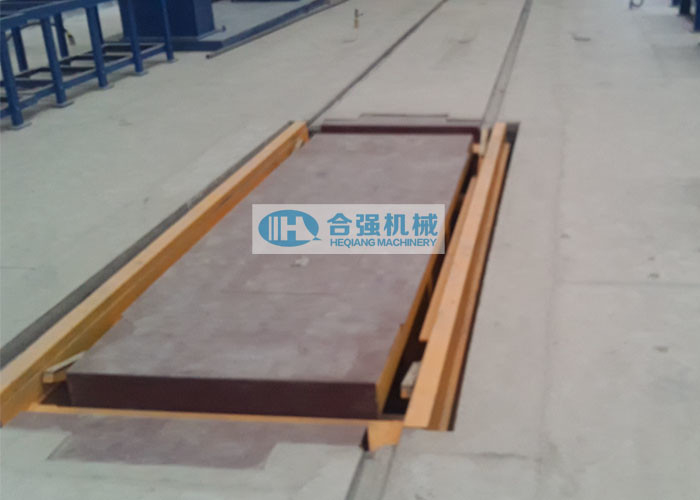

12 Ton Under Floor Railway Bogie Lifting Table

12 Ton Under Floor Railway Bogie Lifting Table
12 Ton Under Floor Railway Bogie Lifting Table

Large Image :  12 Ton Under Floor Railway Bogie Lifting Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ62
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Detailed Product Description
Product Name: Railway Bogie Lifting Jacks Application: Rolling Stock Depot
Usage: Bogie Assembly And Disassembly Condition: New
Lifting Capacity: 12 Tons Lifting Stroke: 1400 Mm
Warranty: One Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

12t Railway Bogie Lifting Table


750mm/Min Railway Bogie Lifting Table


1400mm Stroke Bogie Assembly Lift Table

12tons Under Floor Bogie Lifting Table , Railway Depot Equipment

Railway Bogie Lift Table For Bogie Assembly And Disassembly , Railway Workshop Equipment

Application scope:
This Railway Bogie Lifting Table is an under floor design. It is mainly used for the assembly and disassembly work of the bogies for
different types of the railway rolling stocks.

Technical Parameters:

 Maximum lifting capacity

 12 tons
 Maximum lifting height

 1400 mm

 Lifting speed  Approx.750mm/min (adjustable)
 Maximum opening height  1900~2800 mm
 Power supply  380V/50Hz, AC 3 phase
 Noise level during work  Not more than 70 dB
 Ambient temperature  0℃ ~ 45℃
 Relative humidity  Not more than 95%

(*The detail parameters can be modified as per customer's actual requirements.)



  • The bogie lifting table is suitable for the assembly and disassembly work of the bogies for different types of railway vehicles.
  • The bogie lifting table is mainly composed of support bracket, lifting columns, initial positioning device, lifting drive device and electrical control system etc.
  • It adopts worm drve and screw drive mechanism. Lower faults and convenient for maintenance.
  • Unique the pneumatic servo system, ensure the the pressure stability of the air cylidner.
  • Simpe structure, high performance, economic and light weight.
  • The operation of the bogie lift is controled on the control panel which is eary to learn and very convenient.
  • The equipment has sufficient strength and rigidity, and equipped with reliable safety protection devices.
  • The equipment is of overall steel structure design. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure reasonable, safe and reliable with good rigidity.
  • The bogie lift is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.


Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
