2000mm Stroke 10 Ton Railway Bogie Lifting Jacks

2000mm Stroke 10 Ton Railway Bogie Lifting Jacks
2000mm Stroke 10 Ton Railway Bogie Lifting Jacks 2000mm Stroke 10 Ton Railway Bogie Lifting Jacks

Large Image :  2000mm Stroke 10 Ton Railway Bogie Lifting Jacks Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ62
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Railway Bogie Lifting Jacks Application: Railway Depots, Rolling Stock Factory
Usage: Bogie Assembly And Disassembly Lifting Capacity: 10 Tons
Lifting Stroke: 2m Power Supply: 380V/50Hz, 3 Phase, AC
Warranty: One Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

10t Bogie Lifting Jacks

,

8kW Bogie Lifting Jacks

,

2m Stroke Railway Lifting Jacks

Railway Bogie Lifting Jack With 10t Lifting Capacity 2000mm Stroke for Bogie Inspection and Maintenance


Application scope:
This Bogie lifting jack is mainly used to lift the raiway bogie to a suitable height for assembly and disassembly to facilitate the maintenance process. that is, first push the bogie onto the track of bogie lift, and then lift the bogie to a suitable height for assembly and disassembly. After the work completed, lower it to the same level as the shop track, and then push the bogie out of the jack track

Main technical parameters:

 Maximum lifting capacity

 10 tons
 Lifting stroke

 2000 mm (maximum)

 Lifting speed  600 mm/min
 Lowering speed  600 mm/min
 Lifting gear drive  screw type jack, driven by electric motor
 Maximum installed power  8 kW
 Overall dimension (LxWxD)  Approx.4300x3200x4500 mm
 Designed lifespan  30 years
 Power supply  380V/50Hz, AC 3 phase
 Noise level during work  Not more than 70 dB
 Ambient temperature  5℃ ~ 40℃
 Relative humidity  Not more than 90%

(*The detail parameters can be modified as per customer's actual requirements.)



Main features:

  • Operation process: first push the bogie onto the track of bogie lift, and then lift the bogie to a suitable height for assembly and disassembly. After the work completed, lower it to the same level as the shop track, and then push the bogie out of the jack track.

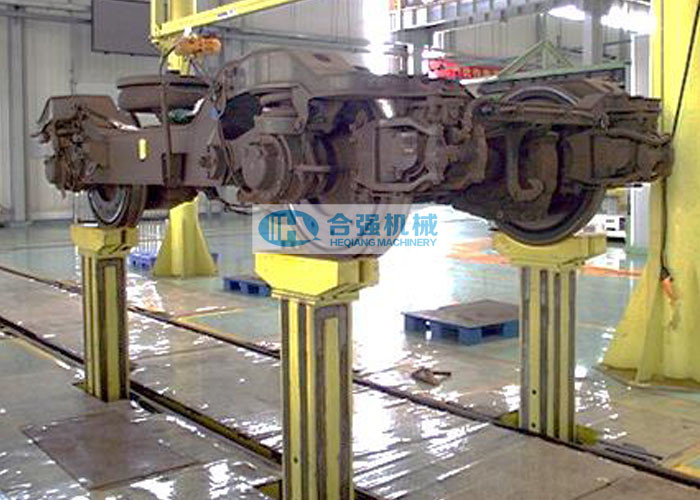

  • The bogie lifting jack is mainly composed of 4 lifting column, supporting frame, electrical control system and safety protection device, etc.
  • The equipment adopts electric motor to drive the screw type jack to lift and support the bogie.

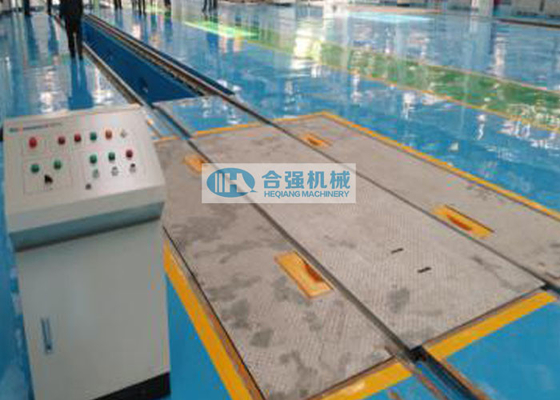

  • When not in use, the tracks of the bogie lift are the same level as workshop track.
  • It's equipped with control console for easy and convenient operation.
  • The equipment has sufficient strength and rigidity, and equipped with reliable safety protection devices.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


Cooperation contact:
If you are interested in our products or any assistance required, please feel free to contact us for more information.
