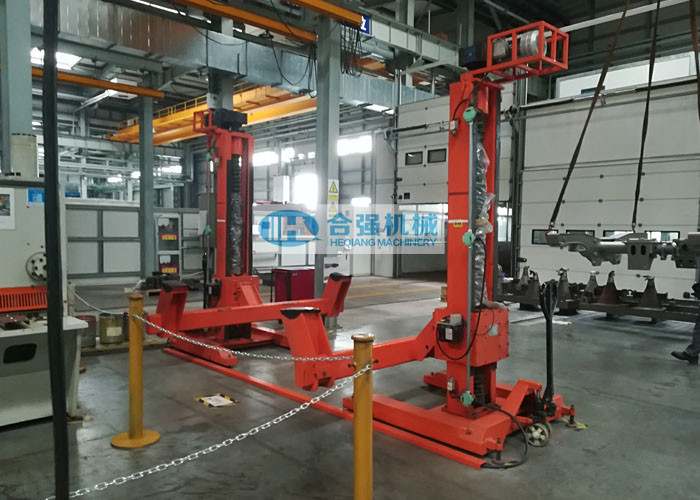

10 Ton Bogie Frame Lifts Railway Workshop Equipment

Name: 10 Ton Bogie Frame Lifts Railway Workshop Equipment
Brand: Heqiang Machinery
SKU: HQ63
Rating: 4.7 (183 reviews)

Large Image : 10 Ton Bogie Frame Lifts Railway Workshop Equipment Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQ63

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	120 days after advance payment
Payment Terms:	T/T, L/C
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Product Name:	Railway Bogie Lifting Jacks	Application:	Railway Depots, Rolling Stock Enterprises
Usage:	Bogie Frame Assembly And Disasembly	Condition:	New
Lifting Capacity:	10 Tons	Lifting Stroke:	1400mm
Warranty:	One Year	After-sales Service:	Engineer Available To Service Machiney Oversea
High Light:	1400mm Stroke Bogie Frame Lifts , 10 Ton Bogie Frame Lifts , 1000mm/min Railway Workshop Equipment

10 Tons Bogie Frame Lifts Bogie Lifting Jacks , Railway Workshop Equipment

Application scope:

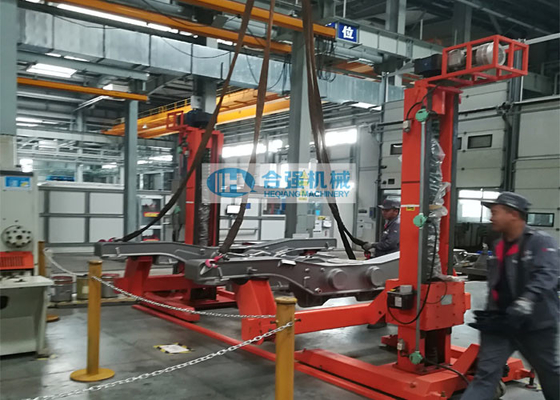

This Bogie Frame Lifts are mainly used for the assembly, disassembly, cleaning and grinding of the bogie frame of EMUs and trailors, that is, first place the bogie frame horizontally onto the bracket of the bogie frame lift and adjust it to a suitable height, and then carry out the work of bogie frame assembly, disassembly, cleaning and grinding etc.

Technical parameters:

Quantity of bogie frame lifts per set	2 units
Maximum lifting capacity of each lift	5 tons
Maximum total lifting capacity	10 tons
Lifting stroke	1400 mm
Lowest lift height	500 mm
Highest lift height	1900 mm
Lifting speed	1000mm/min
Synchronous lifting error of two lifts	Not more than 2 mm
Applicable bogie frame dimension	4000x3300x900 mm
Power supply	380V/50Hz, AC 3 phase
Noise level during work	Not more than 70 dB
Ambient temperature	5℃ ~ 40℃
Relative humidity	Not more than 90%

(*The detail parameters can be modified as per customer's actual requirements.)

Main features:

The bogie frame lifts are mainly used for the assembly, disassembly, cleaning and grinding of the bogie frame of EMUs and trailors.
Each set of the bogie frame lifts are composed of 2 lifts. It can achieve single lift operation, and also double lift synchrinous operation.
Each bogie frame lift is mainly composed of lifting body, hydraulic system, electrical control system and safety protection device, etc.
Control the lift to rise to a suitable height through the hydraulic system.
It's equipped with 2 positioning devices on the bracket of each lift. It can precent the bogie frame from side slip during operation.
The operation is very easy and convenient for maintenance and repair work.
It adopts advanced and reliable hydraulic, drive and control system.
The equipment has sufficient strength and rigidity, and equipped with reliable safety protection devices.
The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.
