2000mm Stroke Bogie Lifting Jacks , 15T Railway Vehicle Bogie Lift For Inspection

15t Railway Vehicle Bogie Lift 2000mm Stroke For Inspection

Railway Vehicle Bogie Lift For Bogie Inspection And Maintenance , Railway Depot Equipment

Application scope:
This Bogie lift is mainly used for the inspection of bogies of different types of railway coaches and trailors, that is, first push the bogie onto the track of bogie lift, and then control the lift to rise to a suitable height for bogie inpeciton and maintenance. After inspection completed, lower the lift to the same level as the shop track, and then push the bogie out of the bogie lift.

Main Technical Parameters:

(*The detail parameters can be modified as per customer's actual requirements.)

MAIN FEATURES:

• The bogie lift is suitable for the lifting inspection of railway bogie with dimension 4500x3500x1100 mm.

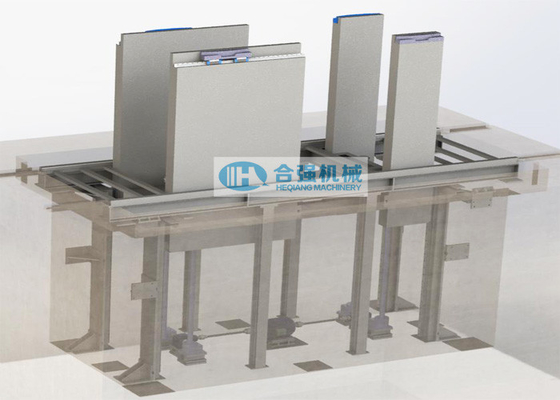

• The bogie lift is mainly composed of fixed bracket, lifting columns, initial positioning device, lifting drive device, bogie supports, anti-slip cover, automatic lubrication system, drainage system and electrical control system etc.
• The bogie lift adopts motor screws to drive an support the synchronous lifting of the bogie.
• The 4 lifting columns combined together to a rigid structure which ensure the 0 error of the synchronous lifting error. The lifting columns are guided by 4 heavy-load linear guides.
• The operation of the bogie lift is controled on the control console which is eary to learn and very convenient.
• It's equipped with automatic and manual control modes, with fault diognosis and error display functions.
• The bogie lift has sufficient strength and rigidity, and equipped with reliable safety protection devices.
• The bogie lift is of overall steel structure design. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure reasonable, safe and reliable with good rigidity.
• The bogie lift is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
• Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
• All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.

Technical Documents:
The following technical documents will be supplied along with the bogie lift when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

• Operating and maintenance instruction manual;
• General arrangement drawing, Electrical schematic diagram;
• Foundation drawing;
• Spare part list, Special tool list;
• Product certificate / Factory Acceptance Certificate, etc
