Railway Above Floor Bogie Lifting Jacks For Bogie Assembly And Disassembly

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

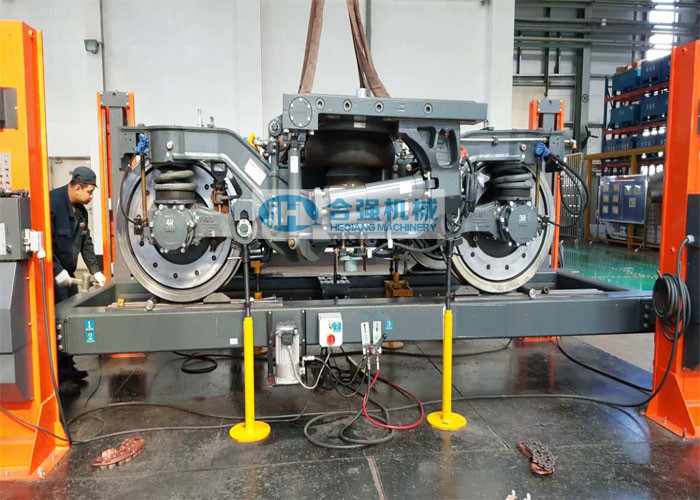

Railway Above Floor Bogie Lifting Jacks For Bogie Assembly And Disassembly

Railway Above Floor Bogie Lifting Jacks For Bogie Assembly And Disassembly
Railway Above Floor Bogie Lifting Jacks For Bogie Assembly And Disassembly

Large Image :  Railway Above Floor Bogie Lifting Jacks For Bogie Assembly And Disassembly Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ62
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Detailed Product Description
Product Name: Railway Bogie Lifting Jacks Application: Rolling Stock Enterprises
Usage: Bogie Assembly Condition: New
Lifting Capacity: 12tons Lifting Stroke: 1400 Mm
Warranty: One Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

12t Railway Vehicle Bogie Lift

,

750mm/min Railway Vehicle Bogie Lift

,

1400mm Bogie Assembly Lifting Jacks

Railway Above Floor Bogie Lifting Jacks For Bogie Assembly And Disassembly , Railway Shop Equipment


Application scope:
This Bogie lifting jack is mainly used for the assembly and disassembly work of different types of railway bogies.

Technical Parameters:

 Maximum lifting capacity

 12 tons
 Maximum lifting height

 1400 mm

 Lifting speed  Approx.750mm/min (adjustable)
 Maximum opening height  1900~2800 mm
 Power supply  380V/50Hz, AC 3 phase
 Noise level during work  Not more than 70 dB
 Ambient temperature  0℃ ~ 45℃
 Relative humidity  Not more than 95%

(*The detail parameters can be modified as per customer's actual requirements.)



MAIN FEATURES:

  • The bogie lift is suitable for the assembly and disassembly work of different types of railway bogies.
  • The bogie lift is mainly composed of support bracket, lifting columns, initial positioning device, lifting drive device and electrical control system etc.
  • The bogie lift adopts motor screws to drive an support the synchronous lifting.
  • The operation of the bogie lift is controled on the control panel which is eary to learn and very convenient.
  • The bogie lift has sufficient strength and rigidity, and equipped with reliable safety protection devices.
  • The bogie lift is of overall steel structure design. It applies finite element technology to analyze the deformation of the structure under various stress conditions, and optimize the design to make the overall structure reasonable, safe and reliable with good rigidity.
  • The bogie lift is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.



Technical Documents:
The following technical documents will be supplied along with the bogie lift when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate / Factory Acceptance Certificate, etc



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
