Railway Workshop Bogie Lifting Jacks 10 Ton Capacity

Railway Workshop Bogie Lifting Jacks 10 Ton Capacity
Railway Workshop Bogie Lifting Jacks 10 Ton Capacity

Large Image :  Railway Workshop Bogie Lifting Jacks 10 Ton Capacity Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ62
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Railway Bogie Lifting Jacks Application: Railway Depots, Rolling Stock Enterprises
Usage: Bogie Maintenance Lifting Capacity: 10tons
Control: Cnc Power Supply: 380V/50Hz, 3 Phase, AC
Warranty: One Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

10 ton Bogie Lifting Jacks

,

10mm/min Bogie Lifting Jacks

,

8kW Railway Depot Equipment

Bogie Lift With 10 Tons Capacity for Bogie Maintenance, Railway Workshop Equipment


Application scope:
This Bogie lifting jack is mainly used to lift the raiway bogie to a suitable height to facilitate the bogie maintenance process. that is, first push the bogie onto the track of bogie lift, and then lift the bogie to a suitable height for
maintenance process. After the work completed, lower it to the same level as the shop track, and then push the bogie out of the jack track.

Technical parameters:

 Maximum lifting capacity

 10 tons
 Maximum Lifting height

 2000 mm

 Lifting & Lowering speed  Approv. 10mm/min
 Lifting gear drive  screw type jack, driven by electric motor
 Maximum installed power  8kW
 Overall dimension (LxWxD)  Approx.4300x3200x4500 mm
 Power supply  380V/50Hz, AC 3 phase
 Noise level during work  Not more than 75 dB
 Ambient temperature  0℃ ~ 45℃
 Relative humidity  Not more than 90%

(*The above parameters are indicative and can be modified as per customer's actual requirements.)



Main features:

  • Operation process: first push the bogie onto the track of bogie lift, and then lift the bogie to a suitable height for assembly and disassembly. After the work completed, lower it to the same level as the shop track, and then push the bogie out of the jack track.

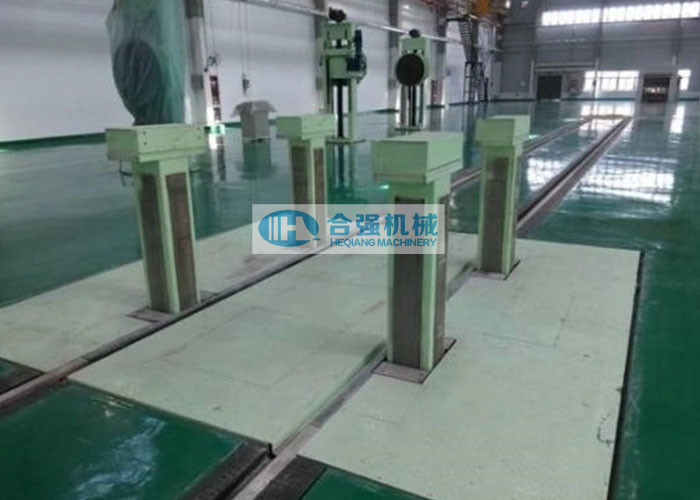

  • The bogie lifting jack is mainly composed of 4 lifting column, supporting frame, electrical control system and safety protection device, etc.
  • The equipment adopts electric motor to drive the screw type jack to lift and support the bogie.
  • When not in use, the tracks of the bogie lift are the same level as workshop track.
  • It's equipped with control console for easy and convenient operation.
  • The equipment has sufficient strength and rigidity, and equipped with reliable safety protection devices.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.



Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate / Factory Acceptance Certificate, etc



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
