Vertical 200 Ton Railway Wheelset Gear Assembly Press

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

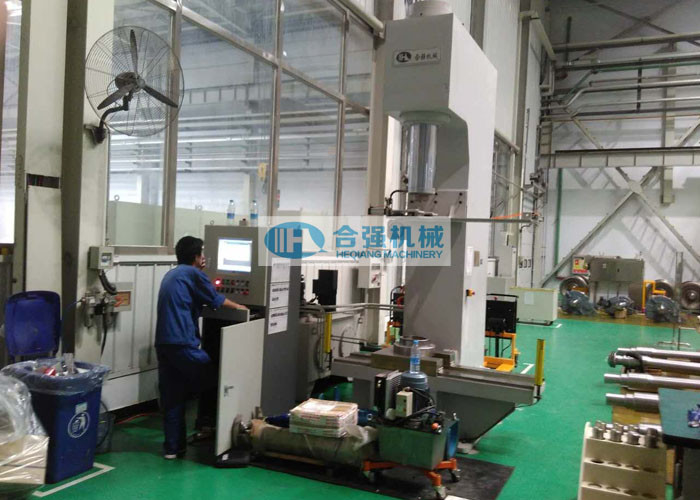

Vertical 200 Ton Railway Wheelset Gear Assembly Press

Vertical 200 Ton Railway Wheelset Gear Assembly Press
Vertical 200 Ton Railway Wheelset Gear Assembly Press

Large Image :  Vertical 200 Ton Railway Wheelset Gear Assembly Press Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ54
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheelset Gear Assembly Press Application: Railway Depots, Rolling Stock Factory
Function: Mount/dismount Wheelset Gear Structure Type: Vertical
Pressing Force: 200 Tons Power Source: Hydraulic
Power Supply: 380V/50Hz, 3 Phase AC After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Railway Wheelset Gear Assembly Press

,

200t Wheelset Gear Assembly Press

,

Vertical Gear Wheel Press Machine

200 Tons Railway Wheelset Gear Assembly Press Vertical Design , Vertical Gear Wheel Press Machine

Application scope:
This Wheelset gear assembly press is mainly used to mount and dismount the driven gear and axle, gear and gear axle for 2nd grad of driven gearbox of EMUs, Metro, Light rail, Urban vehicles. It's of vertical type structure.


Technical Parameters:

 Maximum pressing force  200 tons
 Rated hydraulic system pressure  25MPa
 Inner diameter of the  main cylinder  320 mm
 Max stroke of the main cylinder piston rod  600 mm
 Throat depth  500 mm
 Ram pressing speed  0~5 mm/s (adjustable)
 Ram fast forward and return speed  5~25 mm/s (adjustable
 Moving speed of the working platform  50~60 mm/s
 Moving distance of the working platform  760 mm
 Load capacity of the working platform  2000 kg
 Maximum length of the axle to be pressed  2500 mm
 Maximum diameter of the wheel seat to be pressed  270 mm
 Ram positioning accuracy  Not more than  ± 0.1 mm
 Ram re-positioning accuracy  Not more than 0.1 mm
 Displacement control accuracy  Not more than ± 0.1 mm
 High-pressure oi injection pressing force  200MPa
 Dimension of the movable working platform  615x585 mm
 Overall dimension of the machine  Approx.1635x1900x4500 mm
 Main power supply  380V/50HZ, AC 3 phase
 Noise level during working  Not more than 75 dB

(*The detail parameters can be adjusted as per customer's actual requirements.)


Main Features:

  • The wheel gear press machine is mainly composed of machine body, gear installation movable platform, pneumatic system, press-in mechanism and its hydraulic system, mobile high-pressure oil injection system, electrical control system and protection devices.
  • The machine body is of C-type structure. It's welded by good quality steel plates and carried out stress relief annealing treatment. The body is fixed onto the ground by anchor bolts. With sufficient strength and rigidity.
  • Equipped with a movable working platform for placing the axle and griven gear, also for transferring these workpieces.
  • Gear installation movable platform for the dismounting of different types of axle and gear.
  • Special centering mechanism for the end of the piston rod.
  • Mobile high-pressure oil injection system (Germany MAXIMATOR) is used for oiling dismounting of the gear wheel.
  • Only one operator required to complete the whole pressing opeation.
  • Siemens PLC and AdvanTech industrial computer to control the opeation.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.



Technical Documents:

The following technical documents will be supplied along with the wheel gear press machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


Questions & Inquiry:

If you have questions or interest in our machines, please feel free to contact us for more information.
