Locomotive 100T Wheelset Gear Assembly Press 3 Screw Pillar

Locomotive 100T Wheelset Gear Assembly Press 3 Screw Pillar
Locomotive 100T Wheelset Gear Assembly Press 3 Screw Pillar Locomotive 100T Wheelset Gear Assembly Press 3 Screw Pillar

Large Image :  Locomotive 100T Wheelset Gear Assembly Press 3 Screw Pillar Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ55
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheelset Gear Assembly Press Application: Railway Depots, Rolling Stock Enterprises
Function: Mount/dismount Wheelset Driven Gear Pressing Force: 1000kN
Power Source: Hydraulic Power Supply: 380V/50Hz, AC 3 Phase
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

100T Wheelset Gear Assembly Press

,

2.5mm/s Wheelset Gear Assembly Press

,

40MPa Wheel Gear Press Machine

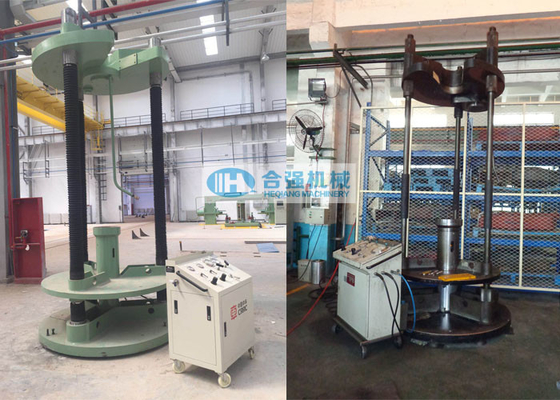

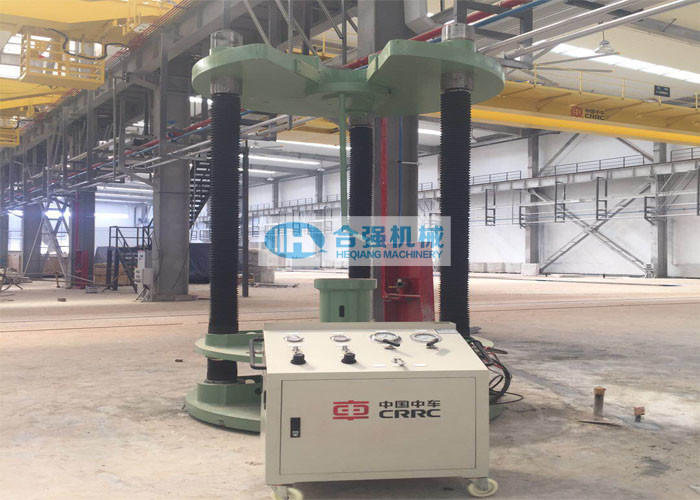

100t Locomotive Wheelset Gear Assembly Press 3 Screw Pillar Design

Application scope:
This Locomotive wheelset gear assembly press is mainly used to mount and dismount the wheelset driven gear for Railway locomotives, urban vehicles and EMUs. It's of 3 screw pillar design, mainly consists
 of Main cylinder, Special toolings and Power station.

Technical Parameters:

 Maximum cylinder force  100 tons
 Rated hydraulic system pressure  40 MPa
 Max stroke of the hydraulic cylinder piston rod  150 mm
 Ram pressing speed  0.5~2.5mm/s (adjustable)
 High-pressure oi injection pressing force  300 MPa
 Maximum diameter of the wheels to be pressed  1000 mm
 Maximum length of the axle to be pressed  2500 mm
 Main power supply  380V/50HZ, AC 3 phase
 Noise level during working  Not more than 75 dB
 Air source  0.4~0.6 MPa
 Ambient temperature  5℃ ~45
 Relavent humidity  Not more than 90%

(*The detail parameters can be adjusted as per customer's actual requirements.)


Main Features:

  • The press is mainly used to the pressing of the axle and the driven gear.
  • It's mainly composed of 3 screw pillars, base, movable column, upper positioning beam, gear position sleeve, hydraulic cylinder and mobile hydraulic system.
  • The 3 screw columns, base and upper positioning beam forms the closed stress structure and fixed to the foundation dround by anchor bolts. With sufficient strength and rigidity.
  • The movable column is welded by good quality steel. The movable column can rise along the three screw pillars by pressing the piston rod and its bottom surface of the hydraulic cylinder to realize the press mounting function.
  • Only one operator required to complete the whole dismounting procedures.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.



Technical Documents:

The following technical documents will be supplied along with the wheel gear press machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


Questions & Inquiry:

If you have questions or interest in our machines, please feel free to contact with us by email or messages. We will revert you in time.
