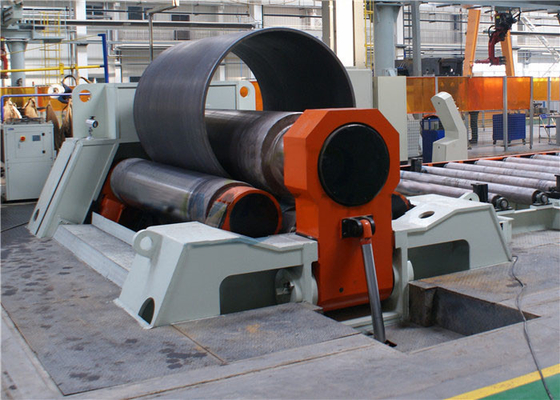

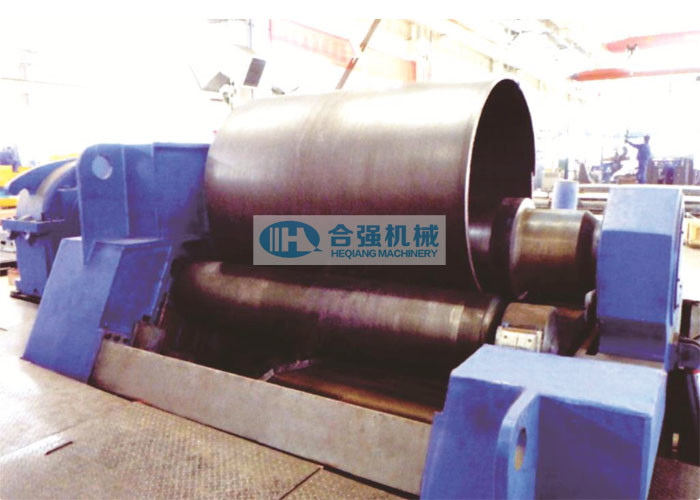

Digital 4 Roll Plate Bending Machine , Sheet Bending Roller Machine

Digital 4 Roll Plate Bending Machine , Sheet Bending Roller Machine
Digital 4 Roll Plate Bending Machine , Sheet Bending Roller Machine Digital 4 Roll Plate Bending Machine , Sheet Bending Roller Machine

Large Image :  Digital 4 Roll Plate Bending Machine , Sheet Bending Roller Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQW12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 10 sets per year
Detailed Product Description
Product Name: Plate Bending Machine Usage: Metal Sheet Plate Bending
Work Roll Qty: 4 Pcs Work Roll Material: 42CrMo Forging
Main Drive: Upper Roll And Lower Roll Drive Mode: Hydraulic Drive
Function: Pre-bending, Bending And Coiling Operation System: PLC And Touch Screen
Highlight:

Digital 4 roll plate bending machine

,

Hydraulic 4 roll plate bending machine

,

ISO sheet bending roller machine

4 Roller Plate Bending Machine Full Hydraulic Controled Plate Rolling Machine With Pre-bending And Coiling

Machine Features:

  • Full hydraulic micro controled four-roll plate bending machine.
  • With function of plate bending and coiling.
  • With function of the pre-bending of plate ends.
  • One-time feeding to complete the plate pre-bending and bending work, no need reversal.
  • The upper roll and the lower roll are the main drive rolls.
  • The main transmission is mainly consisted of hydraulic motor and planetary reducer etc. The motor forward and reverse rotation realizes the plate's forward and backward movement, and provide torque for the plate rolling.
  • The upper roll position is fixed and the lower roll can move up and down.
  • All work rolls both adopt new type rolling mill rolling bearings.
  • All work rolls are manufactured of 42CrMo forgings with hardness HB260~300.
  • The operation adopts NC control.
  • The upper lifting adopts displacement sensor for detection.
  • Digital display, PLC control. Visual input, edit, modify and store process parameters.
  • The top support and side supports are optional as per client's requirement.



Technical Parameters:

Model No.

Maximum

bending

thickness (mm)

Maximum

pre-bend thickness

(mm)

Max plate width

(mm)

Plate yield limit

(Mpa)

Min rolling diameter under full load

(mm)

Motor power

(kW)

Overall dimension

(mm)

HQW12-140x4000 140 120 4000 245 4000 160 10250x7350x6910
HQW12-100x3200 100 90 3200 245 3000 130 8250x6110x5820
HQW12-85x3200 85 70 3200 245 2500 90 6550x4775x4510
HQW12-60x2500 60 50 2500 245 1500 42 7088x8692x3194
HQW12-50x3000 50 38 3000 245 1300 45 9120x4905x3331
HQW12-40x3000 40 30 3000 245 1200 26 7072x3258x2761
HQW12-40x2500 40 30 2500 245 1200 26 6600x2940x2625
HQW12-30x3000 30 20 3000 245 1000 22 7043x3245x2726
HQW12-25x2500 25 20 2500 245 800 13 4890x2200x1840
HQW12-20x2500 20 12 2500 245 800 13 5390x2220x1840
HQW12-20x2000 20 12 2000 245 800 7.5 4479x2288x1734

(*Above parameters are indicative and can be modified as per customers's actual requirements.)
