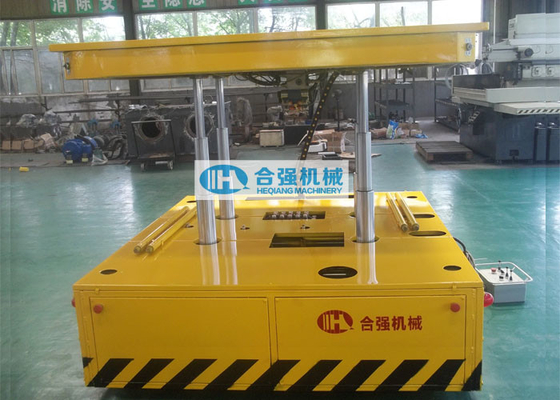

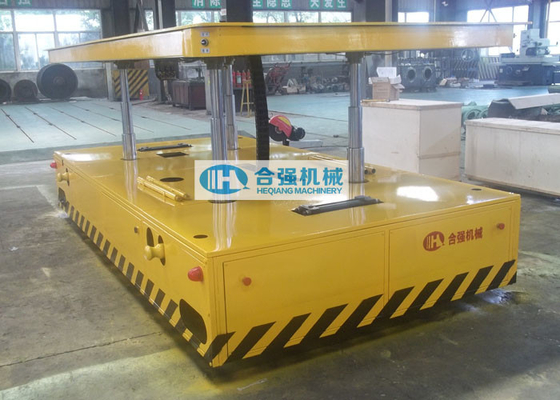

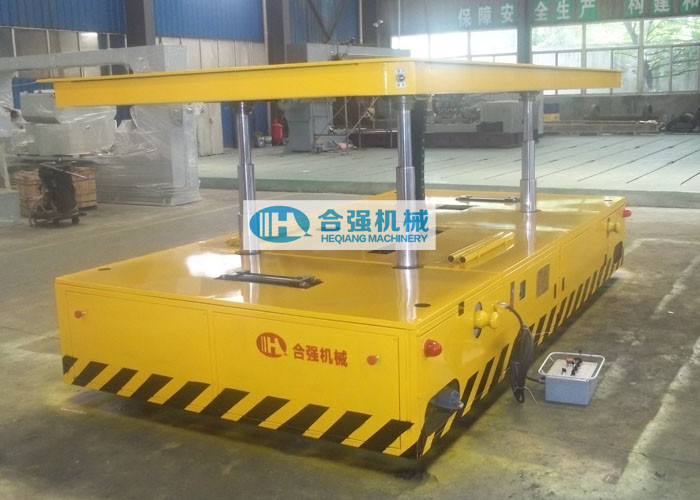

3T Battery-Powered Hydraulic Lifting Equipment For Railway Vehicle Bottom Repair

3T Battery-Powered Hydraulic Lifting Equipment For Railway Vehicle Bottom Repair

Application scope:
The Hydraulic Lifting equipment mainly used for dismounting the components at the vehicle bottom and transfer the dismounted component out from the vehicle bottom.

Technical parameters:

 (*The detail parameters can be adjusted as per customer's actual requirements.)

Main features of the Hydraulic Lifting table:

• It's is mainly composed of chassis, walking driving device, locking safety device, steering device, lifting device, platform device, hydraulic system, electrical control and detection system, battery and charging device, etc.
• Electric-hydraulic drive mode.
• 4 piston cylinders for lifting the platform reliably. Equipped with sensor to control the lifting.
• Four-wheel drive, four-wheel steering,
• Mecanum wheels, strong and durable, with synchronous adjustment function.
• The 4 wheels can travel and turn stably in the range of ±90°.
• The platform surface is provided with non-slip mat.
• The platform has floating function. It can be horizontally and longitudinally shifted by ±100 mm and ± 3 ° when the walking wheel is locked.
• It can be reliably positioned at any height and preventing sudden drop and self-locking when the hydraulic system fails.
• The battery can continuously work more than 8 hours. With battery charging device.
• Wired remote control device, with automatic take-up device to collect the surplus cable into the cable box.
• Four flashing lights are installed at the four corners of the equipment, and the lights will be on after the equipment is started.
• With emergency buttons at the 4 equipment corners and on wired remote to stop the equipment in case of emergency.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price.
