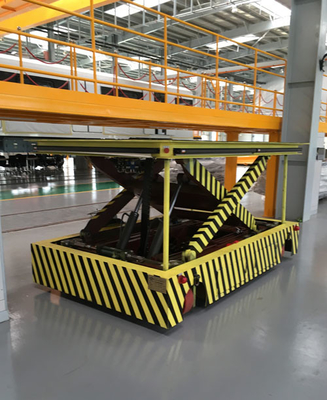

Scissor Lifting Table With Four Steerable Wheels Electro-Hydraulic Drive

Scissor Lifting Table With Four Steerable Wheels Electro-Hydraulic Drive With a Lifting Capacity of 5 Tons

Application scope:
The Scissor Lifting table is mainly used to dismount the components underneath railway vehicles and transfer the dismounted parts out from the bottom. It can fulfill the disassembly work of all components at the vehicle bottom.

Technical parameters:

 (*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)

Machine features:

• It's is mainly composed of chassis, walking driving device, locking safety device, steering device, lifting device, platform device, hydraulic system, control system, electrical control and detection system, battery and charging device, etc.
• Scissor type lift platform
• Electric-hydraulic drive mode.
• Four-wheel drive, four-wheel steering,
• Mecanum wheels, strong and durable, with synchronous adjustment function.
• The 4 wheels can travel and turn stably in the range of ±90°.
• The platform surface is provided with non-slip mat.
• The platform has floating function. It can be horizontally and longitudinally shifted by 50 mm and ± 3 ° when the walking wheel is locked.
• It can be reliably positioned at any height and preventing sudden drop and self-locking when the hydraulic system fails.
• The battery can continuously work more than 8 hours. With battery charging device.
• Wired remote control device, with automatic take-up device to collect the surplus cable into the cable box.
• Four flashing lights are installed at the four corners of the equipment, and the lights will be on after the equipment is started.
• With emergency buttons at the 4 equipment corners and on wired remote to stop the equipment in case of emergency.
• Equipped with support brackets for maintenance use. The brackets will be manually installed during maintenance.

Warranty & After-sale Service:
The warranty lasts for 1 (one) year from the date of the Site Acceptance Test of the Equipment. During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture. After the warranty period, the Manufacturer will provide a wide range of technical support and spare parts with reasonable prices.
