Product Details:
Payment & Shipping Terms:
|
| Product Name: | Scissor Lifting Table | Application: | Railway Depots, Rolling Stock Enterprises |
|---|---|---|---|
| Usage: | Maitenance Work At Vehicle Bottom | Product Type: | Mobile |
| Rated Lifting Capacity: | 5 Tons | Power Supply: | Battery |
| Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Free Spare Parts,Online Support |
| High Light: | 10T Hydraulic Lifting Transfer Cart,0.5m/s Hydraulic Lifting Transfer Cart,1600mm mobile scissor lift platform |
||

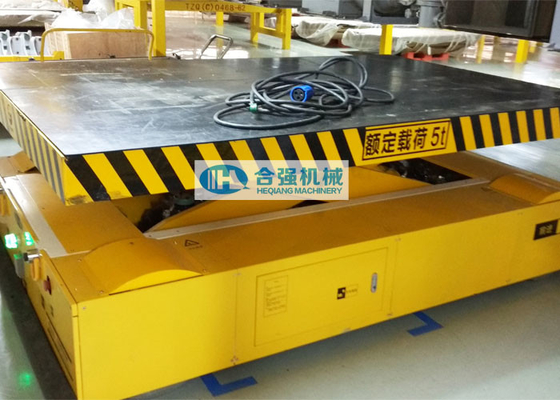

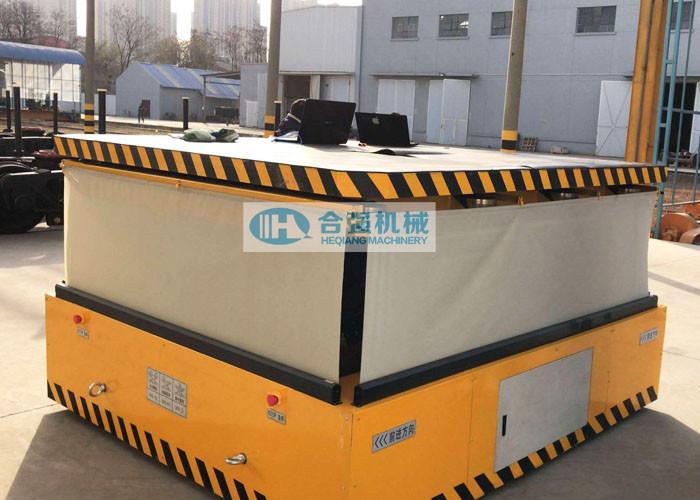

Mobile Scissor Lifting Table For Disassembly Underneath Railway Vehicles, Hydraulic Lifting Transfer Cart with Capacity 5 tons
Application scope:
The mobile scissor lifting table is used for assembly, disassembly and transportation work underneath railway vehicles.
The lifting table is an electric-hydraulic driven lifting platform and a self-propelled device. Four-wheel drive, four-wheel steering, tires using Mecanum wheels, strong and durable, with synchronous adjustment function, can run freely, that is, can achieve horizontal, vertical and any angle of movement and rotation.
Technical parameters:
| Rated lifting capacity | 5 tons |
| Maximum height of the lifting table | 1600mm |
| Minimum height of the lifting table | 900 mm |
| Length of the platform |
2500 mm
|
| Width of the platform | 2200 mm |
| Applicable axle length | 2100~2400 mm |
| Operation speed | Up to 0.5m/s, adjustable |
| Required time to lift to the highest | Approx. 40 sec |
| Drive mode | Electro-hydraulic drive |
| Power supply | Battery |
| Ambient temperature | -10℃ ~ 45℃ |
| Relative humidity | Not more than 90% |
| Workplace | Interior industrial site |
(*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)
Machine structure & Performance:
The equipment is mainly composed of chassis, walking driving device, locking safety device, lifting device, platform device, hydraulic system, control system, electrical control and detection system, battery and charging device, etc.
(1) Chassis
The chassis is the main load-bearing part of the equipment, and all other components are mounted on the chassis. It is equipped with a traveling wheel and its driving device, lifting device, hydraulic system, control system, control system, charging device, etc.
(2) Platform device
The platform device is the working part of the machine, and it is the place to carry the disassembled parts and operator. It's driven by the scissor mechanism to move up and down, and the oil cylinder drives the horizontal movement to realize the horizontal and vertical movement and rotation of the platform.
(3) Walking driving device
The walking mechanism of the equipment is a motor-driven mecanum wheel walking mode. Four-wheel drive and four-wheel steering.
(4) Locking safety device
(5) Lifting device

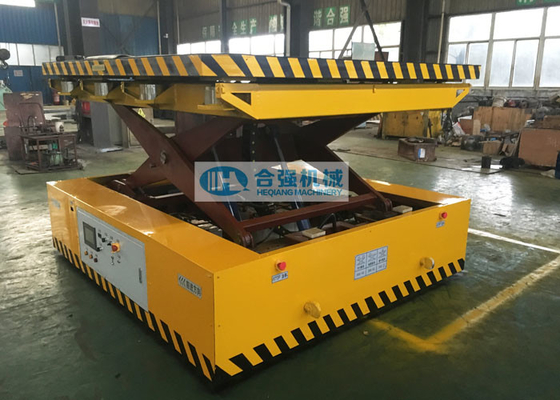

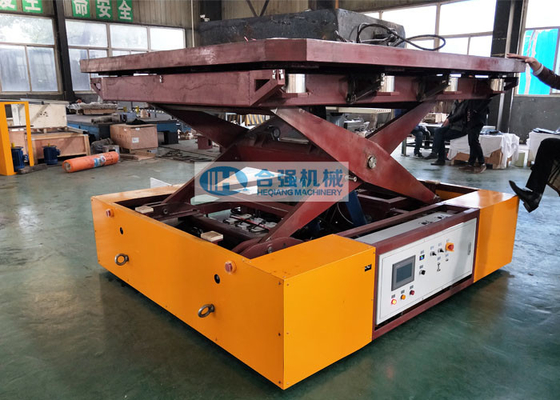

The machine lifting is completed by the scissor mechanism, which is lifted by two sets of lifting cylinders.
Warranty & After-sale Service:
The warranty lasts for 1 (one) year from the date of the Acceptance Test of the Equipment. During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture. After the warranty period, the Manufacturer will provide a wide range of technical support and spare parts with reasonable prices.
