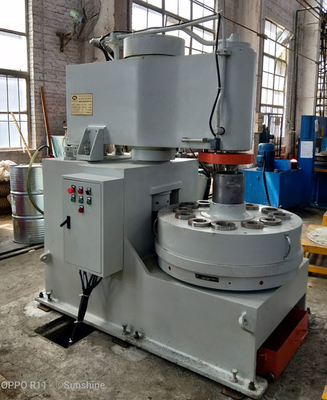

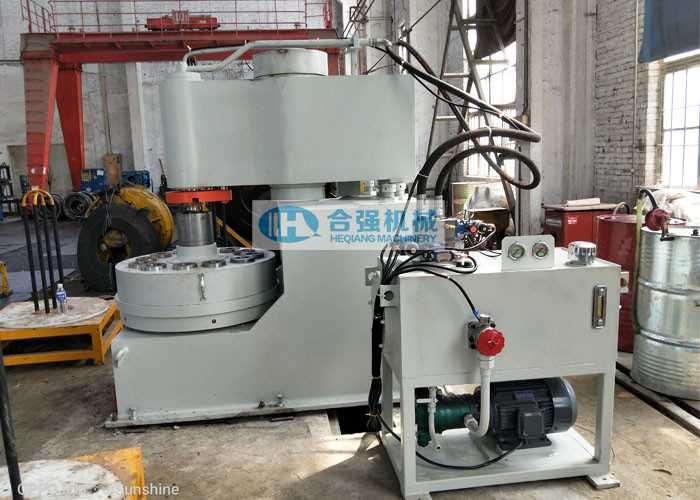

50T Hydrauli Press Machine For Railway Disassembly Work

50T Hydrauli Press Machine For Railway Disassembly Work
50T Hydrauli Press Machine For Railway Disassembly Work 50T Hydrauli Press Machine For Railway Disassembly Work

Large Image :  50T Hydrauli Press Machine For Railway Disassembly Work Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Application: Rolling Stock Enterprises
Usage: Disassembly Of Locomotive Components Working Pressure: 500kN
Control: CNC Power Supply: 380V/50Hz, 3 Phase, AC
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
High Light:

500kN Hydraulic Press Machine

,

0.6MPa Hydraulic Press Machine

,

IP54 Locomotive Press Machine

50t Hydraulic Press Machine , Railway Workshop Equipment

For Disassembly Of Railway Locomotive Rubber Joint And Outer Ring Of Bearing



Application scope:
This hydraulic press machine is mainly used for the disassembly work of the rubber joints of drive device,
dowel pin of power transmission plate, outer rings of the drive bearing etc railway locomotive components.



Technical Parameters:

 Working pressure Not less than 500 kN
 Workpiece parameters:
 Diameter of the driven gear  950 mm
 Weight of the drive device  2 tons
 Material of the dowel pins  35CrMo, 42CrMo, 35CrMoA
 Drive bearings

 NU2876/P69, NUP2875/P69

 Outer diameter: 480 mm

 Rubber joints  SS9, DF4DK, HXD1D
 Ambient conditions:
 Main power supply  380V/50HZ, AC 3 phase
 Noise level during working  Not more than 75 dB
 Air supply  0.4~0.6MPa
 Ambient temperature  -5°C ~ 45°C
 Relative humidity  Not more than 95%

(*The detail parameters can be adjusted as per customer's actual requirements.)

Main Features:

  • The machine is mainly composed of main frame, worktable, ram device, pressure cylinder, jib device, positioning device, disassembly tooling, hydraulic system and eclectrial control system and etc.
  • The main frame is mainly composed of worktable frame, jib frame and receiving device. It's welled by steel. The main frame with firmly fixed on to the ground by anchor bolts. With high strength and stability.
  • The worktable can be rotate 360°. It's provided with fixture for fitting the disassembly tooling.
  • The ram device is of good quality material to ensure the batch disassembly demands.
  • The pressure cylinder is manufacted by professional maker to ensure the batch disassembly demands.
  • The jib device can realize the rotation of the force arm of the pressure cylinder, so as to adjust the press point position to meet the disassembly of differet workpices.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate / Factory Acceptance Certificate, etc
