Wheel Brake Disc Bolt Assembly Machine

Wheel Brake Disc Bolt Assembly Machine
Wheel Brake Disc Bolt Assembly Machine Wheel Brake Disc Bolt Assembly Machine Wheel Brake Disc Bolt Assembly Machine

Large Image :  Wheel Brake Disc Bolt Assembly Machine Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Wheel Brake Disc Assembly Machine Application: Railway Depot, Rolling Stock Enterprises Etc.
Usage: Assemble The Wheel And Brake Disc Wrench Torque: 10~150Nm
Wrench Quantity: 2 Pcs Bolt Quantity: 18 Pcs
Warranty: One Year After-sale Service: Engineers Available To Service Machinery Overseas
High Light:

200W Railway Workshop Equipment

,

Wheel Brake Disc Bolt Assembly Machine

,

150Nm wheel brake disc bolt assembly machine

Railway Workshop Equipment For Locomotive Brake Disc Assembly



Application scope:

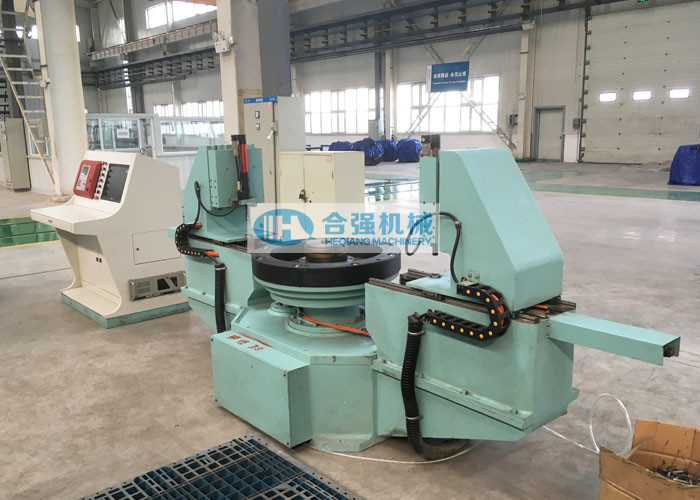

This wheel brake disc bolt assembly machine is mainly used for the automatic assembly work of the connection bolts for railway locomotive wheels and brake disc. The control system can real-time monitor the operation and record, save and export the asembly data.



Technical Parameters:

 Torque range of the electric wrench  10~150 Nm
 Electric wrench quantity  2 pcs
 Axis distance of the two wrenches  880~900 mm
 Torque control accuracy  2.5%
 Angle control accuracy of the combination shafts  0.05°
 Worktable quantity  1 pc
 Diameter of the rotary worktable  820 mm
 Qty of the positioning point on the rotary worktable  18 pcs
 Load capacity of the ratory worktable  Approx.2000 kg
 Rotation control accuracy of the worktable  0.1°
 Height of the rotary table to the floor  865 mm
 Motor power  200 W
 Machine overall dimension (LxWxH)  3800x850x1450 mm
 Wheel diameter  Not more than 1253 mm
 Center distance of the brake disc bolt hole  890mm
 Wheel bore diameter  248~254 mm
 Wheel weight  Not less than 1000 kg
 Brake disc weight  Not less than 200  kg

(*The detail parameters can be adjusted as per customer's actual requirements.)

Main Features:

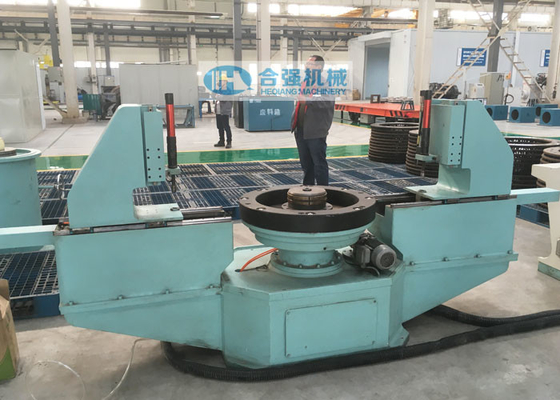

  • The machine is mainly composed of machine body, eletric wrench, rotary table, drive system, centering and locking device, initial positioning device, positioning mechanism, eclectrial control system and etc.
  • Assembly process: first lift the pre-assembled wheel with brake disc onto the rotary table, the rotary table will automatically position and expand and fix the wheel bore, then the plug of the initial positioning device will stand against the brake disc surface, the brake disc will rotate slowly with the rotary table, the plug of the initial positioning device will be inserted into the bolt hole under the force, at this time, the rotary table will stop rotating and the wheel brake disc is completed the initial positioning. After that, the rotary table together with the lower table rotate to the bottom of the electric wrench, and the bolts on both sides of the platform are clamped before the electric wrench is started, the bolts in the bolt hole shall be first butted. After the electric wrench is jacked, the electric wrench moves down and starts to assemble the screws bolts. After a pair of bolts are assembled, the rotary table rotates to go for the assembly of next pair of bolts according to the pre-programmed sequence until all the bolts are assembled. After the bolts are assembled, the rotaty table returns to the original position, and the assembled wheel brake disc is lifted out to complete the assembly work of the wheel and brake disc.
  • The machine can automatically position the wheel, no need manually rotate the wheel to fit the machine.
  • The machine has the function of automatic positioning and clamping. One time loading to complete all the bolts' assembly automatically.
  • Only one operator required to complete the whole assembly work.

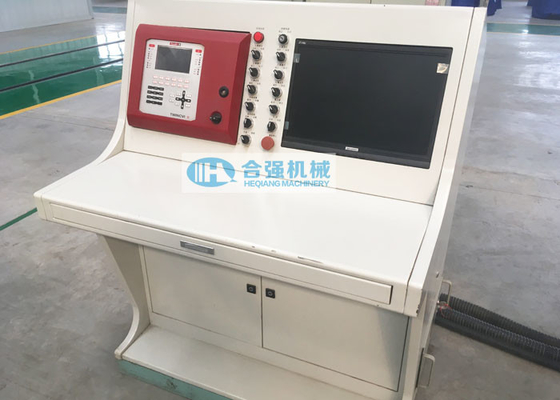

  • Siemens PLC and AdvanTech industrial computer to control and monitor the operation.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate / Factory Acceptance Certificate, etc
