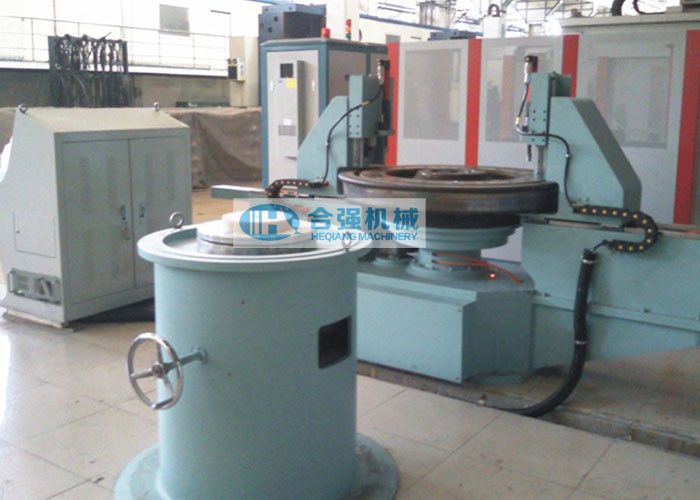

Railway Wheel Brake Disc Assembly Machine

Large Image : Railway Wheel Brake Disc Assembly Machine Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQ60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	120 days after advance payment & design finalization
Payment Terms:	T/T, L/C
Supply Ability:	80 sets per year

Contact Now

Detailed Product Description

Product Name:	Wheel Brake Disc Assembly Machine	Application:	Railway Enterprises
Function:	Assembly Of The Wheel And Brake Disc	Condition:	New
Control:	CNC	Power Source:	3 Phase 380V 50hz
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support
Highlight:	2000kgs Railway Workshop Equipment , CNC wheel brake disc assembly machine , ISO9001 wheel brake disc assembly machine

Railway Wheel Brake Disc Assembly Machine , Railway Workshop Equipment

Application Scope:
This machine is applicable for the assembly work of the wheelset wheel and brake disc of different types of EMU, urban rail transit (Subway,Light rail), coaches with 2~4 brake discs, normal wagons, all types of locomotive and EU trains.

Main features:

Table structure, double cylinders with a rotary table, ensure that brake disc can automatically tighten / loosen the bolts in accordance with the preset angle in the assembly process, greatly reducing labor intensity and improving process efficiency.
Equipped with brake disc locking mechanism to prevent brake disc run out during assembly, ensuring the assembly pass rate.
Computer operation system is easy to learn, achieving the convenience and visualization of operation.
System software has multiple functions, including parameter setting, data management, calibration, query, etc.
Unique pneumatic servo system, ensures cylinder in stable condition.

Technical Parameters:

Electric wrench torque range	10 ~ 150mm
Qty of combined axle	2pcs
Adjustment range of the distance between two torque axles	880~900mm
Torque control accuracy	2.5%
Angle controll accuracy of combined axle	0.05°
Rotation platform	1pc
Diameter of rotation platform	Φ820mm
Anchor point of Roration platform	18pcs
Bearing weight of ratation platform	≥ 2000kgs
Ratation control accuracy	0.1°
Height of rotation platform to the ground	865mm
