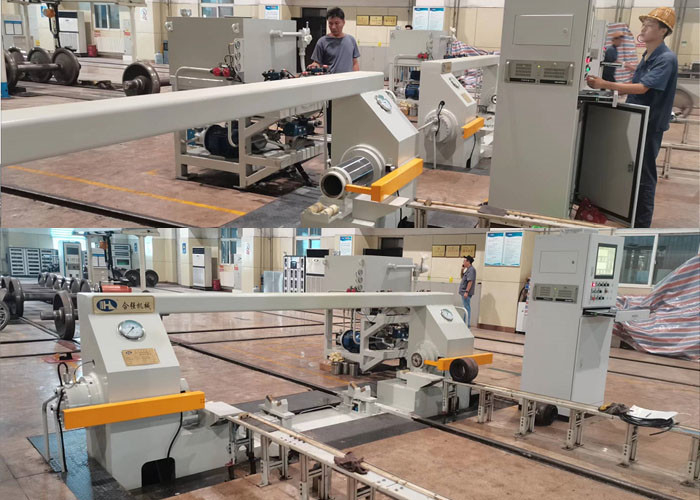

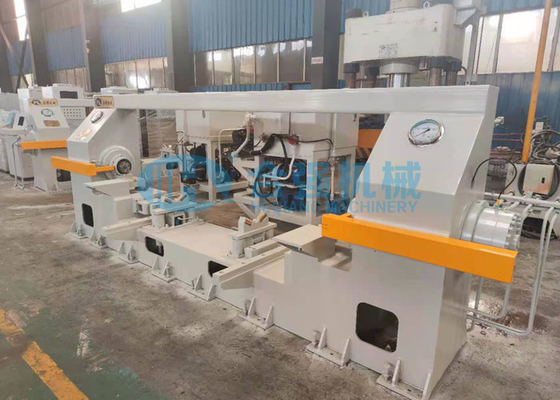

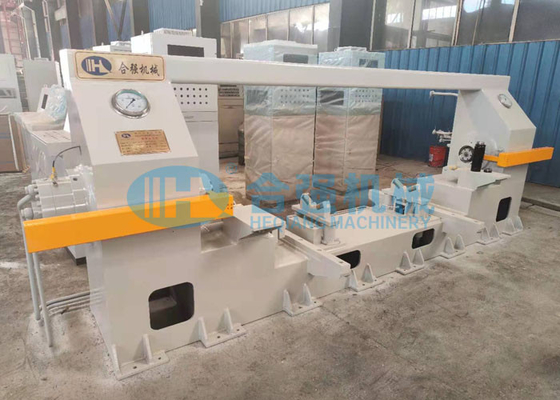

Rolling Bearing Mounting Press Hydraulic Positioning For Wagon Wheelsets

Rolling Bearing Mounting Press Hydraulic Positioning For Wagon Wheelsets
Rolling Bearing Mounting Press Hydraulic Positioning For Wagon Wheelsets
video play

Large Image :  Rolling Bearing Mounting Press Hydraulic Positioning For Wagon Wheelsets Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ32
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD50,000~60,000 per Set
Packaging Details: Nude packages + Wooden cases
Delivery Time: 120 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Application: Railway Maintenance Workshop Function: Railway Bearing Assembly
Max Cylinder Force: 50 Tons Number Of Ram Cylinder: 2 Pcs (1 Left + 1 Right)
Track Gauge: 1435 Mm Wheel Diameter: 760-840 Mm
Axle Journal Diameter: 130 Mm, 150 Mm Cycle Time: 3 Minutes Per Axle
High Light:

Rolling Bearing Mounting Press

,

Wagon Wheelsets Bearing Mounting Press

,

Railway Rolling Bearing Mounting Press

Rolling Bearing Mounting Press For Wagon Wheelsets

Railway Wagon Bearing Pusher , Railway Bearing Mount Press , Roller Bearing Installer


Application scope:

This Rolling Bearing Mounting Press is mainly used to automatically mount the bearings (without axle box) onto the axle journals for the wagon wheelsets. It's applicable for the bearing mounting of the wagons with 60t and 70t axle load.



Technical parameters:

 Maximum Pressing force  50 tons
 Number of Ram cylinder  2 pcs (1 left + 1 right)
 Maximum cylinder stroke  500 mm
 Resolution of the displacement sensor  0.1 mm
 Accuracy of the pressure sensor  0.25%FS
 Coaxiality of center line of the ram cylinders  ≤​ 0.4 mm
 Pressing speed  0 ~ 6 mm/s
 Cycle time  ≤​ 3 minutes per axle
 Maximum hydraulic system pressure  25 MPa
 Installed power  ≤​ 25 kW
 Maximum wheelset weight  3000 kg
 Track gauge  1435 mm
 Wheel diameter  760-840 mm
 Axle journal diameter  130 mm, 150 mm

(*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)


Machine features of the Wagon Bearing Mount Press:

  • The bearing mounting press mainly consists of overall gantry frame, two ram cylinders, lifting device, guide device, locking device, measuring device, bearing positioning device, hydraulic system, measurement and electric control system, and so on.
  • Overall gantry frame structure design. Online pass-through arrangement.
  • Double ram cylinders for the mounting operation.
  • Only a single positioning to complete the mounitng of both bearings. Special patented upsetting centre devices for positioning.
  • With automatic and manual modes for the operation.
  • Automatic mounting both bearings simultaneously.
  • Automatic mounting separately of single side bearing.
  • Only one operator required complete the whole operation.
  • For different types of bearing, only need to replace the tooling for the mounting.
  • Hydraulic positioning and locking the wheelset.
  • Siemens PLC and AdvanTech industrial PC to control the operation.
  • With curve recording system.
  • It's provided with emergency stop button the control panel.



Warranty & After-sale Service:

The warranty lasts for 1 (one) year from the date of the Site Acceptance Test of the Equipment.

During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture.

After the warranty period, the Manufacturer will provide a wide range of technical support and spare parts with reasonable prices.
