100 Ton Railway Bearing Press Machine For Mounting Dismounting

100 Ton Railway Bearing Press Machine For Mounting Dismounting
100 Ton Railway Bearing Press Machine For Mounting Dismounting 100 Ton Railway Bearing Press Machine For Mounting Dismounting 100 Ton Railway Bearing Press Machine For Mounting Dismounting 100 Ton Railway Bearing Press Machine For Mounting Dismounting

Large Image :  100 Ton Railway Bearing Press Machine For Mounting Dismounting Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ36
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 90 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 200 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Application: Railway Depot Workshop
Function: Rolling Bearing Assembly And Disassembly Machine Type: Mobile
Max Mounting Force: 60 Tons Maxx Dismounting Force: 100 Tons
Pressing Mode: Cold Pressing Warranty: One Year
High Light:

100T Railway Bearing Press Machine

,

IP54 Railway Bearing Press Machine

,

Railway Rolling Bearing Puller

100 Tons Railway Bearing Mounting And Dismounting Machine , Rolling Bearing Puller And Puller

Application scope:

This Mobile bearing press machine is applicable for the mounting and dismounting work of the wheelset axle box bearings of different types of railway rolling stock. It's a hydraulic cold pressing design. It can equipped with pressing curve record and printing functions for option.



Technical parameters:

 Machine type  Mobile
 Maximum mounting force  60 tons
 Maximum dismounting force  100 tons
 Maximum stroke of the cylinder  Not less than 300mm
 Diameter of the applicable wheel tread  900 ~ 1260 mm
 Working time of single mounting operation  Not more than 5 minutes
 Noise level during working  Not more than 75dB
 Ambient temperature  -5℃~45℃
 Relative humidity  Not more than 95%
 Power supply  380V/50Hz, 3 phase, AC

(*Above parameters are indicative, and can be modified as per customer's requirements.)


Machine features:

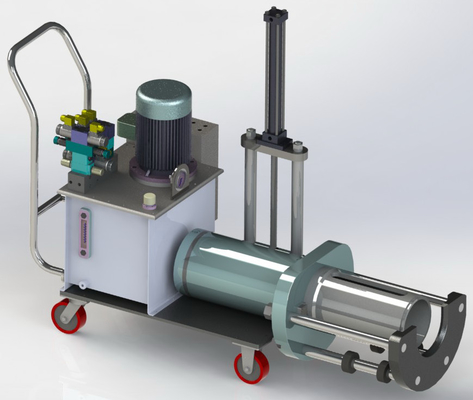

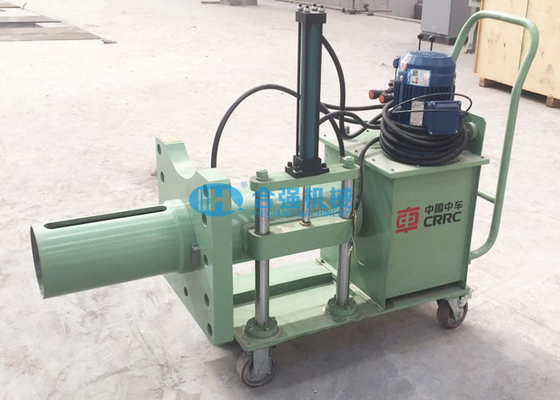

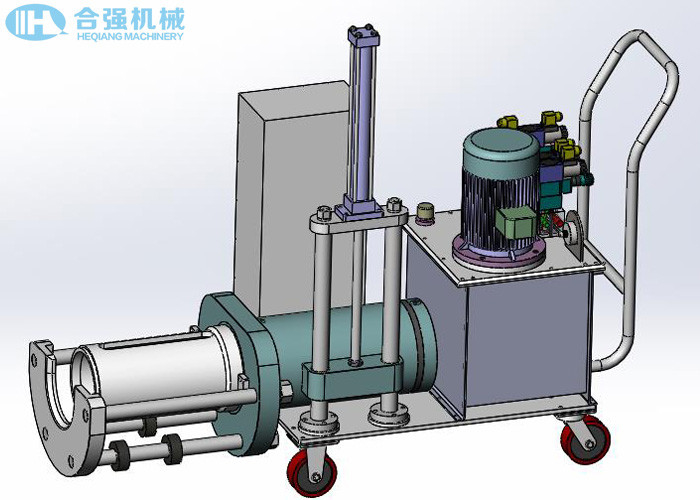

The mobile railway bearing press machine is mainly composed of lifting mechanism, main cylinder, mobile trolley, mounting device, dismounting device, hydraulic system, electrical control system and special tooling etc.

  • The bearing press machine is mobile type, convenient for various mounting and dismounting operation.
  • The machine adopts the industrial computer to control the operation. it can generate, record and print the pressing curve.
  • The operator can real-time check the bearing pressing curve through the display.
  • The machine is equpped with complete hydraulic system and electrical control system.
  • It’s easy to operate, easy to maintain and repair. With sufficient rigidity and good static and dynamic performance. With advanced and reliable electrical control system and reliable safety protection device.
  • All parts, components and accessories are new and manufactured with new high-quality materials. The mechanical, electronic and electrical components used are high-quality, reliable and practical products, and conforms with relevant national standards. Good performance, suitable for mass production operation.
  • All devices and meters of the bearing press are measured in accordance with the international system of units (SI) standards, and their design and tests conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection level of all electrical components is not less than IP54.
  • The exposed surface of all parts should be anti-corrosion, rust-proof; the outer surface of the press should be sprayed with anti-rust primer and topcoat.
  • The control system has self-lock function to avoid mis-operation or other accidents causing hurts and damage to the operator and the machine.



Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical control system;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, packing list, etc.



Cooperation contact:
If you are interested in our products or any assistance required, please feel free to contact us for more information.
