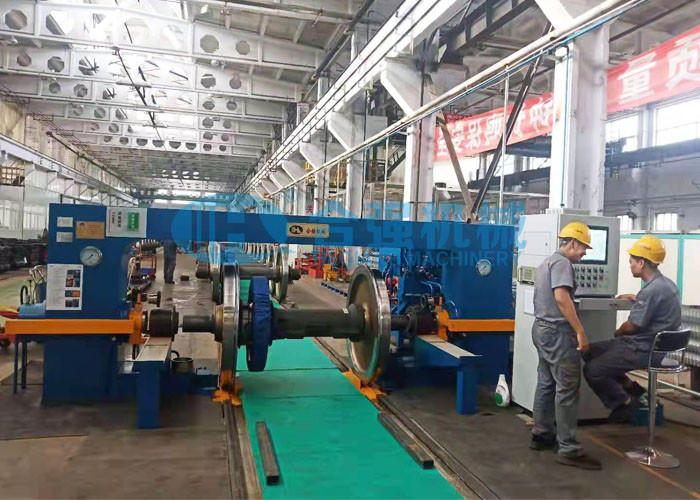

Railway Automatic Bearing Mounting Press With Capacity 60 Tons

Railway Automatic Bearing Mounting Press For Rolling Bearing Assembly

Railway Bearing Pusher , Railway Bearing Mount Press , Roller Bearing Installer


Application scope:

This Railway Bearing Mounting Press is mainly used to automatically mount the bearings (without axle box) onto the axle journals. With curve recording system.

Technical parameters:

(*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)


Machine features of the Bearing Assembly Press Machine:

• Automatic mounting both end bearings simultaneously.
• Automatic mounting separately of single side bearing.
• Only one operator required complete the whole operation.
• For different types of bearing, only need to replace the tooling for the mounting.
• Double ram cylinders for the mounting operation.
• Only a single positioning to complete the mounitng of both end bearings.
• With automatic and manual modes for the operation.
• Overall gantry frame structure design. Online pass-through arrangement.
• Special patented upsetting centre devices.
• Siemens PLC and AdvanTech industrial computer to control the operation.
• With curve recording system.
• Automatically judge "Qualified or not"
• It's provided with emergency stop button the control panel.

Warranty & After-sale Service:
The warranty lasts for 1 (one) year from the date of the Site Acceptance Test of the Equipment. During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture. After the warranty period, the Manufacturer will provide a wide range of technical support and spare parts with reasonable prices.
