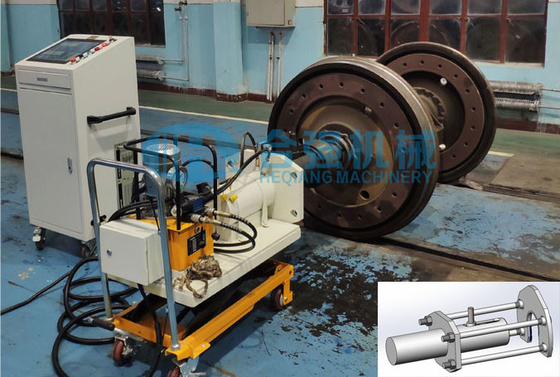

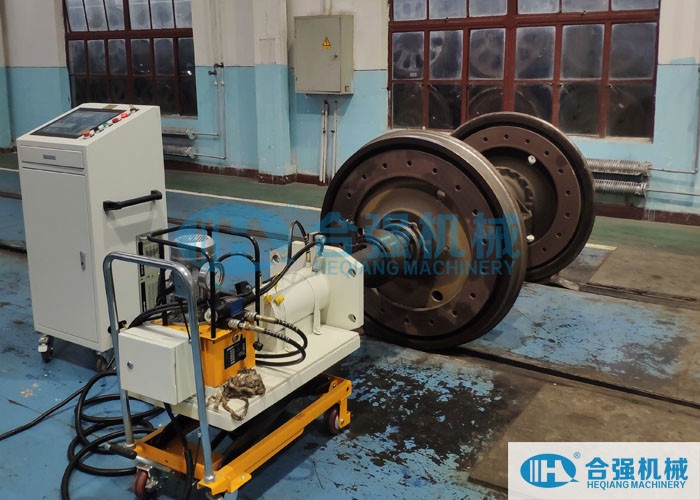

Mobile Bearing Mounting And Dismounting Press With Curve Recording System

Mobile Bearing Mounting And Dismounting Press With Curve Recording System
Mobile Bearing Mounting And Dismounting Press With Curve Recording System Mobile Bearing Mounting And Dismounting Press With Curve Recording System

Large Image :  Mobile Bearing Mounting And Dismounting Press With Curve Recording System Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ34
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD26,000~35000 per Set
Packaging Details: Wooden case
Delivery Time: 90 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Application: Railway Depots And Workshops
Usage: Mount And Dismount Railway Bearings Machine Type: Mobile
Maximum Mounting Force: 60 Tons Maximum Dismounting Force: 100 Tons
Hydraulic System Pressure: 700 Bar Warranty: 1 Year
High Light:

Mobile Bearing Mounting And Dismounting Press

,

Bearing Mounting And Dismounting Press

,

mobile Wheel Bearing Press Machine

Mobile Railway Bearing Mounting And Dismounting Press With Curve Recording System

Portable Railway Bearing Puller And Pusher , Bearing Installer and Remover


Application scope:

This mobile bearing mounting and dismounting press is mainly used to mount and dismount the rolling bearings of different types of railway wheelset. With curve recording system. Manual operation.



Technical parameters of the Railway Bearing Press:

 Machine type  Mobile
 Maximum mounting force  60 tons
 Maximum dismounting force  100 tons
 Maximum cylinder stroke  ≥ 230 mm
 Applicable wheel diameter  700 ~ 1000 mm
 Hydraulic system pressure  700 bar
 Operation mode  Manual control

(*Remarks: The above parameters are indicative and can be modified as per customer's requirements. The customer shall provide the detail wheelset and bearing drawings for design work after contract award.)


Machine structure features of the Bearing Mount and Demount Press:

  • The bearing press machine is mobile type and easy to move to the workplace.
  • The mobile bearing mount and dismount press mainly consists of mechanical part, hydraulic system and electrical control system. The mechanical part consists of ram cylinder, axle end tooling, mounting tooling, dismounting tooling and mobile lifting trolley.
  • The mounting tooling consists of cylindrical ram and auxiliary ram etc. The cylindrical ram is installed at the front end of the oil cylinder. For different types of bearings, only need to replace the auxiliary ram at the front of the cylindrical ram.
  • The dismounting tooling consists of pull rod and dismounting pull plate, installed on the cylinder flange. For different types of bearings, only need to replace the dismounting pull plate.
  • The Axle end tooling is installed at the end of the axle, connected with the axle to form a whole. It matches the mounting and dismounting tooling during operation.
  • The mobile lifting trolley can flexibly transport the working mechanism to each production station. Step on foot to control the lifting of the scissor mechanism, so as to make the center line of the main cylinder concentric with the center line of the axle.
  • When mounting, first assemble the axle end tooling, and then use the cylindrical ram and plug pin etc. mounting tooling to complete the bearing mounting operation.
  • When dismounting, first assemble the axle end tooling, and then use the dismounting tooling to complete the bearing dismounting operation.
  • With curve recording system. Siemens PLC and AdvanTech industrial PC.


Warranty & After-sale Service:
The warranty lasts for 1 (one) year from the date of the Site Acceptance Test of the Equipment. During the warranty, the Manufacturer shall be responsible for the damage due to the defects in design and manufacture.
