Portable Railway Wheel Bearing Press Machine Bearing Pusher And Puller

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

Portable Railway Wheel Bearing Press Machine Bearing Pusher And Puller

Portable Railway Wheel Bearing Press Machine Bearing Pusher And Puller
Portable Railway Wheel Bearing Press Machine Bearing Pusher And Puller Portable Railway Wheel Bearing Press Machine Bearing Pusher And Puller

Large Image :  Portable Railway Wheel Bearing Press Machine Bearing Pusher And Puller Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ34
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD21,000~25000 per Set
Packaging Details: Wooden cases
Delivery Time: 90 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 200 sets per year
Detailed Product Description
Condition: New Product Name: Wheel Bearing Press Machine
Application: Railway Depots And Workshops Function: Mount And Dismount Railway Bearings
Machine Type: Mobile Maximum Output Force: 65 Tons
Warranty: One Year After-sale Service: Spare Parts And Online Technical Support
High Light:

Mobile Railway Wheel Bearing Press Machine

,

65 tons Bearing Pusher And Puller

,

HQ34 Railway Wheel Bearing Press Machine

Portable Railway Bearing Puller And Pusher , Mobile Bearing Mounting And Dismounting Press


Application scope:

This Portable bearing pusher and puller is applicable to mount and dismount rolling bearings of different types of railway wheelset.



Technical parameters of the Railway Bearing Press:

 Machine type  Mobile
 Maximum output force  65 tons or as per required
 Maximum cylinder stroke  210 mm
 Applicable bearing center height  400 ~ 1000 mm
 Hydraulic system pressure  70 MPa
 Noise level during working  Not more than 75dB
 Ambient temperature  -5℃~45℃
 Relative humidity  Not more than 95%
 Power supply (3 phase, AC)  380V/50Hz

(*Above parameters are indicative, and can be modified as per customer's requirements.)

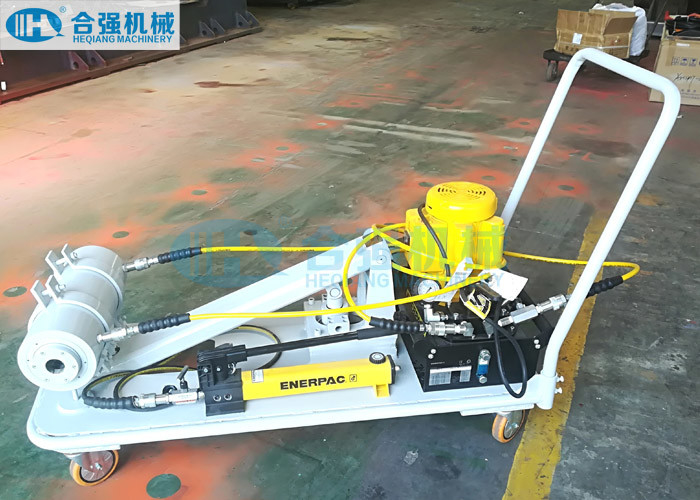

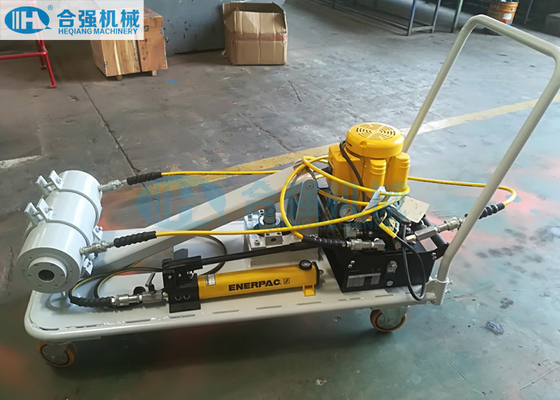

Machine features of the Bearing Mount and Demount Press:

  • The bearing press machine is mobile type, very light and easy to move to the workplace.
  • The mobile bearing mount/dismount press is mainly composed of mechanical part, hydraulic system, electrical control system and special tooling for mounting and dismounting etc.
  • The hydraulic system is integrated on the articulated mobile lifting trolley and it can achieve the mounting and dismounting of the whole bearing.
  • It’s easy to operate, easy to maintain and repair. With sufficient rigidity and good static and dynamic performance.
  • Main cylinder, lifting cylinder, manual pump and high-pressure micro hydraulic station (Include oil tank, hydraulic valve, motor, oil pump, switch, hydraulic gauge and filter etc.) are ENERPAC products.
  • The exposed surface of all parts should be anti-corrosion, rust-proof; the outer surface of the press should be sprayed with anti-rust primer and topcoat.
  • All measuring units are easy to disassembly and assembly.
  • With stable and reliable hydraulic system. Sudden power failure will not cause the cylinder falling down.


Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


For more information, please feel free to contact with us via email or WhatsApp. Many thanks!
