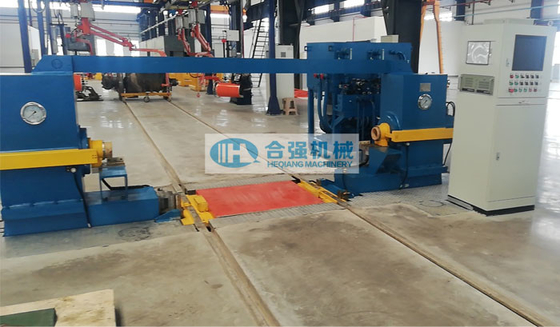

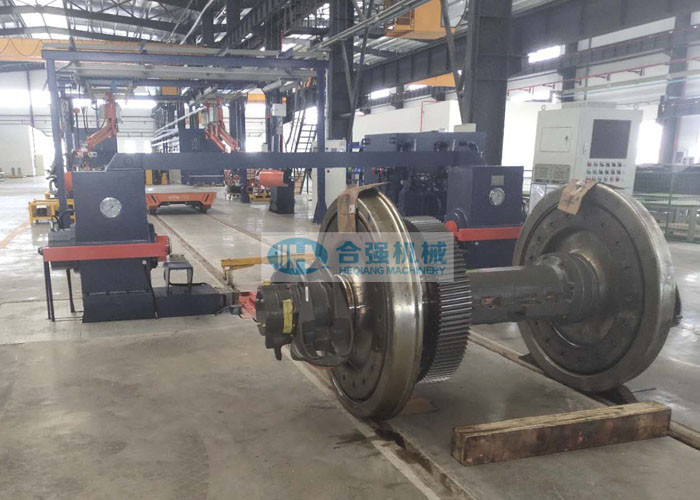

1000kN Wheel Bearing Press Machine For Φ1260mm Wheel

1000kN Wheel Bearing Press Machine For Φ1260mm Wheel
1000kN Wheel Bearing Press Machine For Φ1260mm Wheel
video play

Large Image :  1000kN Wheel Bearing Press Machine For Φ1260mm Wheel Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ32
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Application: Railway Workshop
Function: Bearing Mounting Max Pressing Force: 100 Tons
Ram Cylinder Qty: 2 Pcs Operation Mode: PLC+industrial Computer
Cycle Time: 5 Minutes Per Axle Installation Space: Not More Than 7000x5000 Mm
High Light:

1000kN Wheel Bearing Press Machine

,

1260mm Wheel Bearing Press Machine

,

OEM Automatic Bearing Mounting Press

100 Tons Automatic Wheel Bearing Press Machine Bearing Mounting Press


Application scope:

This Automatic Wheel Bearing Mounting Press is mainly used for the mounting work of the wheelset bearings of various types of railway rolling stocks. It can mount the 2 bearings simultaneously, also can mount the single bearing separaqtely. It can generate, record, save and print the pressure -displacement curve in the required format. Only one operator required complete the whole operation.



Technical parameters:

 Max Pressing force  100 tons
 Ram cylinder  Double cylinder
 Maximum cylinder stroke  460 mm
 Pressing speed  0 ~ 6 mm/s, variable
 Resolution of pressing force display   0.1 kN
 Control accuracy of the cylinder displacement  ± 0.1 mm
 Coaxiality of the ram cylinders  ± 0.1 mm
 Cycle time  ≤​ 5 minutes per axle
 Maximum hydraulic system pressure  28 MPa
 Noise level during working  ≤​ 75dB
 Installed power  ≤​ 30 kW
 Machine weight  Approx. 6000 kg
 Installation space required  ≤​ 7000x5000 mm
 Applicable wheelset parameter:
 Wheelset weight  ≥ 8000 kg
 Track gauge  1435 mm
 Axle length  2100 ~ 2400 mm
 Wheel diameter  1150 ~ 1260 mm
 Inner diameter of the bearing to be pressed  145 ~ 185 mm

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)


Machine features:

  • The bearing mounting press will be installed in a foundation pit.
  • The bearing mounting press is able to mount both end bearings simultaneously.
  • For different types of bearing, only need to replace the tooling for the mounting.
  • Double ram cylinders for the mounting operation.
  • Only a single positioning to complete the mounitng of both end bearings.
  • With automatic and manual modes for the operation.
  • Automatic mounting separately of single end bearing.
  • Automatically switch the mounting process.
  • Function of Veto for wrong input and incorrect operation.
  • Overall gantry frame structure design.
  • Special patented upsetting centre devices.
  • Automatic component positioning.
  • Adopt on-line pass-through arrangement.
  • Siemens PLC and AdvanTech industrial computer to control the operation.
  • It can generate and record the displacement vs pressure curve during pressing process, and time vs pressure curve during pressure holding process.
  • The pressing curve contains: max pressing force, operator information, wheel number, axle number, bearing number, pressing date, pressure holding start/off time etc.
  • It can automatically and real-time detect and record the pressing force, adhesion force, pressure difference and holding time during bearing mounting, and automatically judgement: qualified or not.
  • The press can automatically judge whether the bearing is mounted into position, and start the pressure holding.
  • It has the functions of data storage, curve recording, intelligent judgment, curve merging, automatic HP printing of A4 paper in the form of graphics, etc.
  • It's provided with emergency stop button the control panel.
  • The press is equipped with safety protection interlocking device, short circuit, circuit breaking and leakage protection device, and protection device for power failure or accidental shutdown.
