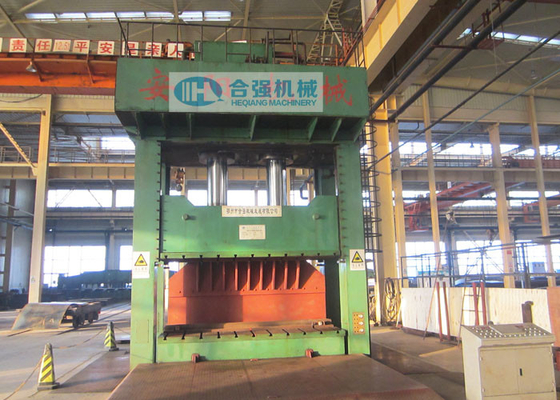

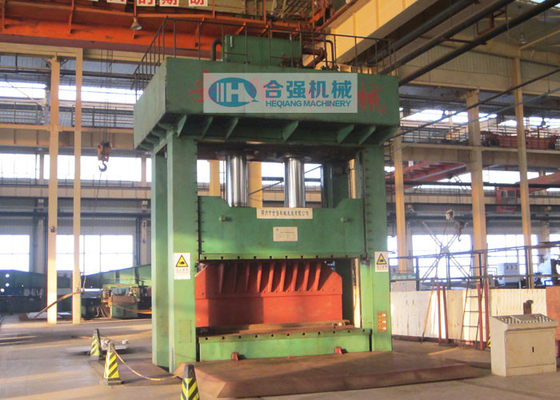

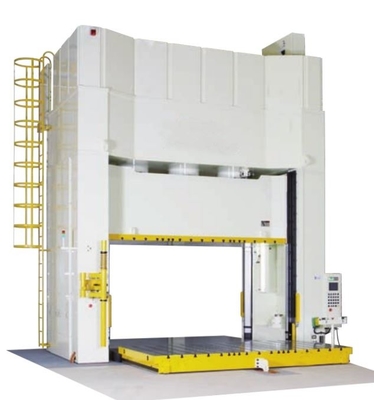

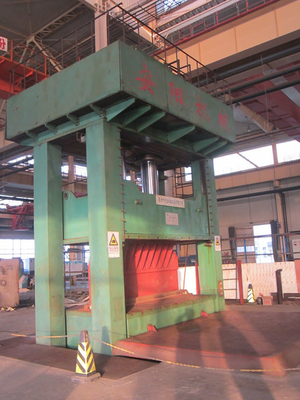

1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging

1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging
1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging 1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging 1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging 1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging

Large Image :  1500 Ton Frame Type Hydraulic Press Machine For Drawing Pressing Blanking Flanging Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQY28-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Function: Various Drawing And Pressing Process
Product Structure: Frame Type Structure Norminal Force: 1500 Tons
Power Source: Hydraulic Cylinder Qty: 2 Or 3 As Per Required
Max Opening Height: 2500mm Slider Stroke: 1100mm
High Light:

120kW Hydraulic Press Machine

,

1500t Hydraulic Press Machine

,

25MPa Frame Type Hydraulic Press

Frame Type Hydraulic Drawing Press Machine With 400-1500t Applicable Forces

Application scope:
This Frame type hydraulic press machine is
mainly used for drawing, pressing, blanking, flanging and other forming processes of metal sheet parts, and has the function of full tonnage low noise punching and blanking. It can realize the composite process of forming before blanking or blanking after flanging and shaping at one time. The machine has good system rigidity, precision, life and reliability. It has strong specialty, novel structure, wide adaptability and high degree of automation.



Technical Parameters:

 Specification  Data
 Maximum nominal pressure  1500 tons
 Oil cylinder quantity  2 or 3 as per required
 Ram lifting force  3000 kN
 Max pressure of the hydraulic system  25MPa
 Maximum opening height  2500 mm
 Max Slider stroke  1100 mm
 Effective dimension of the slider lower surface  4000x3500 mm
 Effective dimension of the working table  4000x3500 mm
 Height of the working table to the ground  550 mm
 Slider idle speed  Approx.250 mm/s
 Slider working speed  Approx.8~20 mm/s
 Slider return speed  Approx.200 mm/s
 Movable working table  Move out from front
 Moving stroke of the movable working table  3500 mm
 Moving speed of the movable working table  Approx.200 mm/s
 Re-positioning accuracty of the working table  +/- 0.1 mm
 Ejection force of the hydraulic cushion  4500 kN
 Stroke of the hydraulic cushion  400 mm
 Total machine height to the ground  Not more than 8500 mm
 Total power  Approx. 120kW

(Above parameters are indicative and can be modified according to the customer's actual requirements.)



Machine Features:

  • The machine body is of Frame type structure.
  • The hydraulic press machine is mainly composed of main body, hydraulic system, electrical control system and lubrication system, etc.
  • The main body  is mainly composed of upper beam, base, pillars, movable working table, main hydraulic yclinder, safety bolts, hydraulic cushion and maintenance platform etc.
  • It's provided with T-slots on the upper surface of the working table for placing and fixing the workpieces.
  • The main cylinder and piston are made of 45 steel forging pieces and the main cylinder is installed in the top of the machine body.
  • This series product has independent power mechanism and electrical system, and uses the button common control.
  • The process action uses PLC control to achieve adjustment and semi-automatic operation mode.
  • The working pressure, pressing speed and stroke range all can be adjusted as per process requirements.
  • Siemens PLC, display and mobile operation table to control and monitor the whole operation.
  • It's provided with 3 control modes: adjustion, manual and self-automatic.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.
