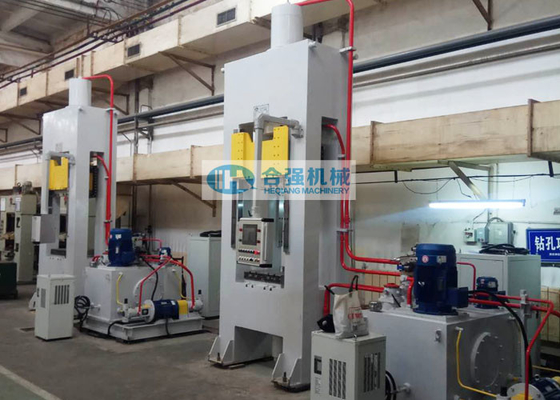

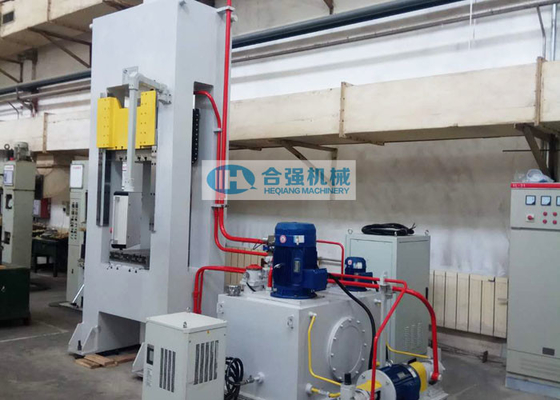

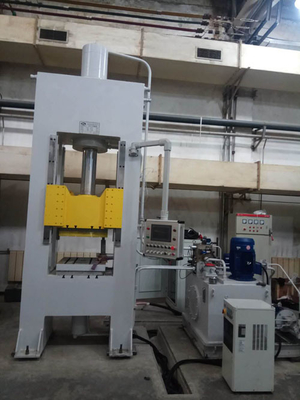

1600kN Y34 4 Pillar Hydraulic Press For Metal And Plastic Products

Name: 1600kN Y34 4 Pillar Hydraulic Press For Metal And Plastic Products
Brand: Heqiang Machinery
SKU: HQY34-160
Rating: 5 (148 reviews)

Large Image : 1600kN Y34 4 Pillar Hydraulic Press For Metal And Plastic Products Get Best Price

Product Details:

Place of Origin:	Hubei, China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQY34-160

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	120 days after advance payment
Payment Terms:	T/T, L/C
Supply Ability:	200 sets per year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Press Machine	Function:	Various Pressing Process
Product Structure:	Frame Type Four-column	Norminal Force:	1600kN
Power Source:	Hydraulic	Hydraulic System Pressure:	25 MPa
Product Warranty:	1 Year	After-sale Service:	Engineers Available For Oversea Service,Onlinesupport
High Light:	Y34 4 column hydraulic press , 1600kN 4 pillar hydraulic press , OEM 4 pillar hydraulic press

Y34 Series 160t Frame Type Hydraulic Press Machine , Four Pillar Hydraulic Press

Application scope:
This hydraulic press machine is mainly used for the pressing and forming of metal and plastic products.,The machine has good system rigidity, precision, life and reliability. It has strong specialty, novel structure, wide adaptability and high degree of automation. The machine is equipped with heating system.

Main Technical Parameters:

Specification	Data
Maximum nominal pressure	160t
Max pressure of the hydraulic system	25 MPa
Max ejection force	40t
Maximum opening height	1500 mm
Distance of the lower surface of Slider to the worktable	400~1200 mm
Slider stroke	800 mm
Ejection stroke	200 mm
Slider idle speed	Approx.55 mm/s
Slider working speed	Approx. 3.5~7 mm/s
Slider return speed	Approx.55 mm/s
Effective dimension of the working table	700x700 mm
Height of the working table to the ground	900 mm
PLC and Display	Siemens brand
Power supply	380V/50Hz, 3 phase, AC
Noise level during working	Not more than 75 dB
Ambient temperature	5℃~40℃
Relative humidity	Not more than 90%

(Above parameters are indicative and can be modified according to the customer's actual requirements.)

Machine Features:

Frame type Four column structure.
The hydraulic press machine is mainly composed of main body, heating system, hydraulic system and electrical control system, etc.
The main body is firmly fixed onto the the ceramic foundation by the anchor bolts.
It's provided with T-slots on the upper surface of the working table for placing and fixing the workpieces.
The main cylinder and piston rod are made of 45 steel forging piece. The main cylinder is installed in the top of the machine body.
This series product has independent power mechanism and electrical system, and uses the button common control.
The process action uses PLC control to achieve adjustment and semi-automatic operation mode.
The working pressure, pressing speed and stroke range all can be adjusted as per process requirements.
Siemens PLC and display to control the whole operation.
Cantilever control panel.
The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.
