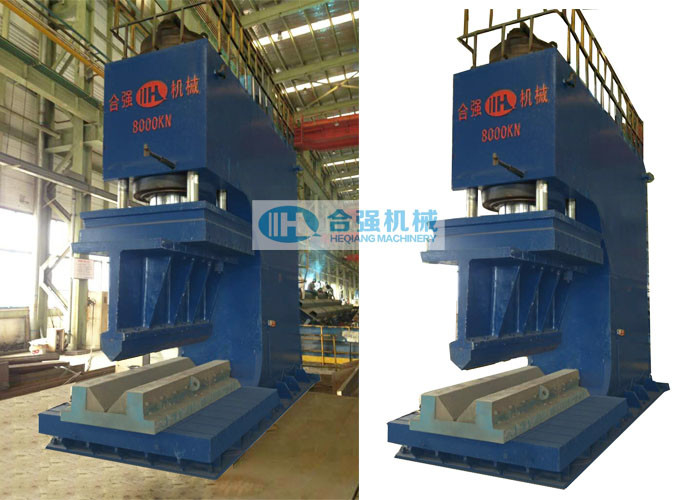

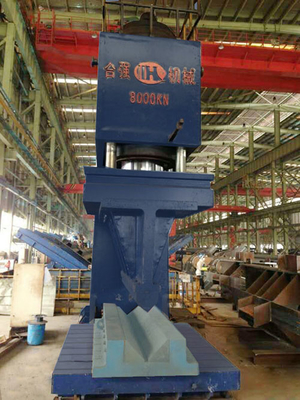

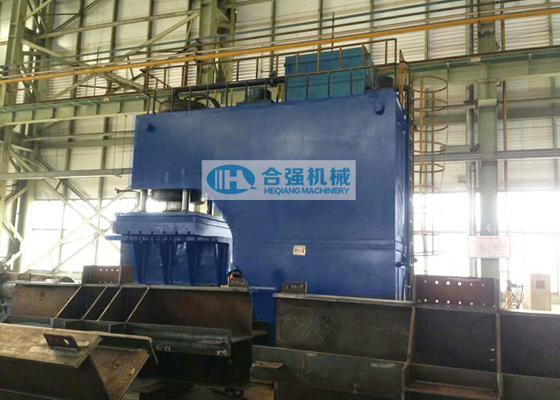

800 Ton Single Column Hydraulic Press

800 Ton Single Column Hydraulic Press
800 Ton Single Column Hydraulic Press 800 Ton Single Column Hydraulic Press 800 Ton Single Column Hydraulic Press

Large Image :  800 Ton Single Column Hydraulic Press Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQY41-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 180 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Application: Metal Forming, Pressing And Leveling
Usage: High-strength Plates' Leveling Product Structure: C Type Single Column
Norminal Force: 800 Tons Throat Depth: 1500mm
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

800t Single Column Hydraulic Press

,

25MPa Single Column Hydraulic Press

,

8000kN C Frame Press Machine

Single Column Hydraulic Press Machine 800t For Leveling of High-strength Workpieces

Application scope:
This C-type single column hydraulic press machine is
mainly used for the correction and leveling processing of high strength and non-pressure resistant metal sheet, as well as the pressing work of shaft parts and the drawing, bending and folding of plate-shaped parts. This machiine is applicable for various industrial applications.



Main Technical Parameters:

 Specification  Data
 Product structure  C-type hydraulic press
 Norminal pressure  800t
 Max pressure of the hydraulic system  25MPa
 Installed pressure of the oil pump  31.5 MPa
 Maximum opening height  1700 mm
 Maximum cylinder stroke  1200 mm
 Throat depth  1500 mm
 Ram idle speed  Approx.100 mm/s
 Ram working speed  Approx.10~20 mm/s
 Ram return speed  Approx.90 mm/s
 Dimension of the slider ram  1500x1200 mm (WxD)
 Dimension of the lower working table  3000x1800 mm (WxD)
 Height of the lower working table to the ground  200 mm
 Operation mode  Adjustment, manual and semi-automation
 PLC and Display  Siemens
 Power supply  380V/50Hz, 3 phase AC
 Noise level during working  Not more than 75 dB
 Ambient temperature  0℃~40℃
 Relative humidity  Not more than 90%
 Woking medium  No.46 antiwear hydraulic oil

(Above parameters are indicative and can be modified according to the customer's actual requirements.)



Machine Features:

  • C-type Single column structure.
  • The hydraulic press machine is mainly composed of combined main body, main cylinder and lifting cylinder, slider ram, working table, hydraulic system, electrical control system and etc.
  • The C type frame is of full steel overall welded structrure, and carried out stress relief annealling treatment. It's firmly fixed onto the foundation ground by anchor bolts. With sufficient strength and rigidity.
  • The machine dpts finite element analysis method to accurately calculate the stressed parts, so as to ensure the uniform distribution of stress, small deformation and strong stiffness of the equipment, so as to meet the requirements of production and use.
  • It's provided with T-slots on the surface of slider ram and lower working table for the fixation of the tooling.
  • The main cylinder is installed on the top beam.
  • The main cylinder and piston rod are good quality 45 forging steel.
  • The hydraulic system and pump motor are placed on the top of the machine body.
  • The maintenance platform is also provided on the top of the machine body.
  • Siemens PLC and display to control and monitor the whole operation.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.
