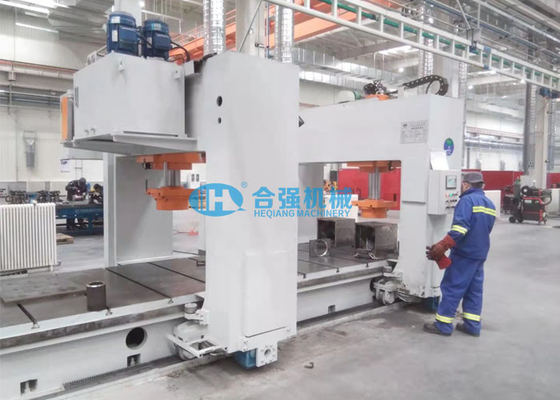

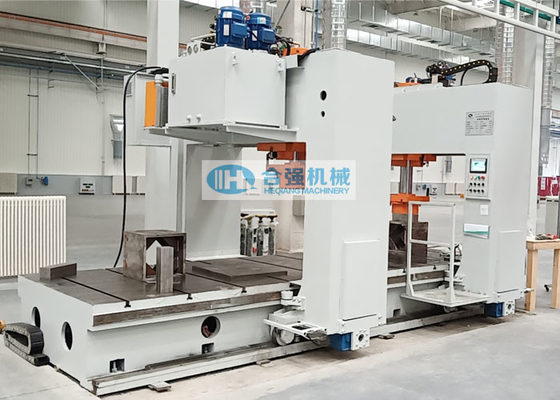

Mobile 100T Double Gantry Type Hydraulic Press Machine

Mobile 100T Double Gantry Type Hydraulic Press Machine
Mobile 100T Double Gantry Type Hydraulic Press Machine Mobile 100T Double Gantry Type Hydraulic Press Machine

Large Image :  Mobile 100T Double Gantry Type Hydraulic Press Machine Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQY45-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Application: Metal Forming,Hydraulic Pressing
Usage: Leveling Metal Products Product Structure: Double Gantry Type Structure
Norminal Force: 100 Tons Power Source: Hydraulic
Power Supply: 380V/50Hz, 3 Phase AC After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

100T Hydraulic Press Machine

,

Double Gantry Hydraulic Press Machine

,

25MPa mobile hydraulic press

100ton Double Mobile Gantry Hydraulic Press Machine PLC Controlled

Application scope:
This Double Gantry type hydraulic press machine is mainly used for the leveling and calibration after welding of
 bogie frame side beam and cross beam of type A & B metro, city car and special vehicles. The machine is also applicable for other industrial applications.



Technical Parameters:

 Specification  Data
 Product structure  Double Gantry type hydraulic press
 Norminal pressure  100 tons
 Max pressure of the hydraulic system  25 MPa
 Maximum ram stroke  550 mm
 Distance of the ram to the working table surface  850 mm
 Ram idle speed  Approx.20 mm/s
 Ram working speed  Approx.3 mm/s
 Ram return speed  Approx.40 mm/s
 Maximum distance of ram lateral movement  1500 mm
 Maximum center distance of the two gantry rams  4000 mm
 Gantry longitudinal moving speed  Approx. 100 mm/s
 Ram lateral moving speed  Approx. 80 mm/s
 Dimension of the working table (LxWxH)  4000x1600x600 mm
 Machine overall dimension (LxWxH)  Approx.5000x2700x2700 mm
 PLC and Display  Siemens brand
 Power supply  380V/50Hz, 3 phase AC
 Noise level during working  Not more than 75 dB
 Ambient temperature  0℃ ~ 40℃
 Relative humidity  Not more than 90%

(Above parameters are indicative and can be modified according to the customer's requirements.)



Machine Features:

  • Double Gantry type structure with mobile gantry design.
  • The gantry hydraulic press machine is mainly composed of fixed working table, Double mobile gantry frame, rams, hydraulic system and electrical control system, etc.
  • The frame  is of full steel overall welded structrure, and carried out stress relief annealling treatment. With sufficient strength and rigidity.
  • Machine main structure and working principle: the machine is equipped with two gantry which can move back and forth along the adjustment and repair platform. The gantry can work at any position within the scope of the working table. The gantry movement is driven by the mechanical transmission device, and the lateral guide wheel is used as the guide when moving. The distance between the lateral guide wheels of the machine is reasonable, which can prevent the gantry from walking and biting and move freely.
  • The upper part of the gantry is equipped with a ram running trolley device, which can make lateral reciprocating motion along the gantry under the drive of the mechanical transmission device. Therefore, the ram can flexibly realize the three-dimensional movement of longitudinal, transverse and vertical when straightening. It can be easily straightened at any point within the allowable range of worktable.
  • The ram can move freely with the trolley within the effective range of the worktable, and the ram is made into replaceable structure to facilitate the replacement of this part after long-term wear and tear; heat treatment such as quenching of guide rail, roller surface and working surface of ram sleeve has great hardness and wear resistance.
  • It's provided with T-slots on the surface of Ram and working table.
  • The main cylinder and piston rod are good quality 45 forging steel.
  • The hydraulic system is installed on the gantry beam.
  • It's provided with independent control panel, display and hand operation box on the gantry for easy operation.
  • Siemens PLC and display to control and monitor the whole operation.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
