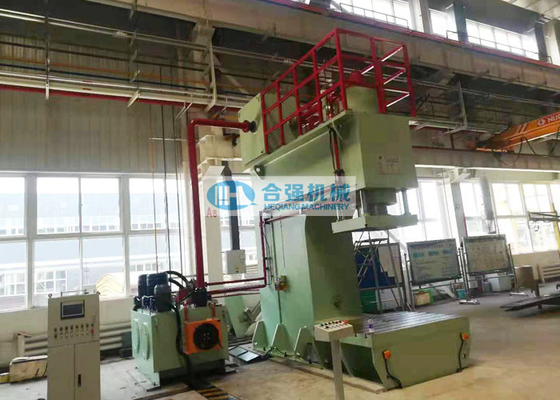

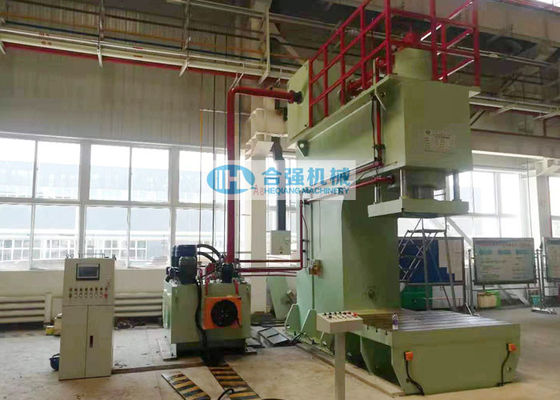

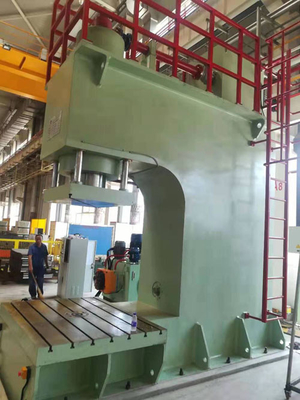

500 Ton Single Column Hydraulic C Type Hydraulic Press

500 Ton Single Column Hydraulic C Type Hydraulic Press
500 Ton Single Column Hydraulic C Type Hydraulic Press 500 Ton Single Column Hydraulic C Type Hydraulic Press 500 Ton Single Column Hydraulic C Type Hydraulic Press

Large Image :  500 Ton Single Column Hydraulic C Type Hydraulic Press Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQY41-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Application: Metal Forming, Hydraulic Pressing
Usage: Pressing Metal Products Product Structure: C Type Single Column
Norminal Force: 500 Tons Power Supply: 380V/50Hz, 3 Phase AC
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

500t c type hydraulic press

,

22kW c type hydraulic press

,

Hydraulic single column hydraulic press

500 Ton C-Type Single Column Hydraulic Press Machine

Application scope:
This C-type single column hydraulic press machine is
mainly used for the correction and leveling of plate parts and welding structure parts, as well as the pressing work of shaft parts and the drawing, bending and folding of plate-shaped parts. The yield limit of the workpieces is around 900 MPa. This machiine is applicable for mining company, and also other industrial applications.



Main Technical Parameters:

 Specification  Data
 Product structure  C-type hydraulic press
 Norminal pressure  500t
 Max pressure of the hydraulic system  25 MPa
 Maximum opening height  1500 mm
 Maximum cylinder stroke  1000 mm
 Throat depth  1200 mm
 Ram idle speed  Approx.120 mm/s
 Ram working speed  Approx.9 mm/s
 Ram return speed  Approx.120 mm/s
 Dimension of the slider ram  1000x800 mm
 Dimension of the lower working table  1800x1400 mm (WxD)
 Height of the lower working table to the ground  700 mm
 Main motor power  22kW
 PLC and Display  Siemens brand
 Power supply  380V/50Hz, 3 phase AC
 Noise level during working  Not more than 75 dB
 Ambient temperature  5℃~45℃
 Relative humidity  Not more than 90%

(Above parameters are indicative and can be modified according to the customer's actual requirements.)



Machine Features:

  • C-type Single column structure.
  • The hydraulic press machine is mainly composed of main body, main cylinder, slider, working table, hydraulic system, electrical control system and etc.
  • The C type frame is of full steel overall welded structrure, and carried out stress relief annealling treatment. It's firmly fixed onto the foundation ground by anchor bolts. With sufficient strength and rigidity.
  • It's provided with T-slots on the surface of slider ram and lower working table.
  • The main cylinder is installed on the top beam.
  • The main cylinder and piston rod are good quality 45 forging steel.
  • The hydraulic system and pump motor are placed on the top of the machine body.
  • The maintenance platform is also provided on the top of the machine body.
  • Siemens PLC and display to control and monitor the whole operation.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.



Questions and Inquiry:

If you have any questions and interest about our machines, please feel free to contact with us!
