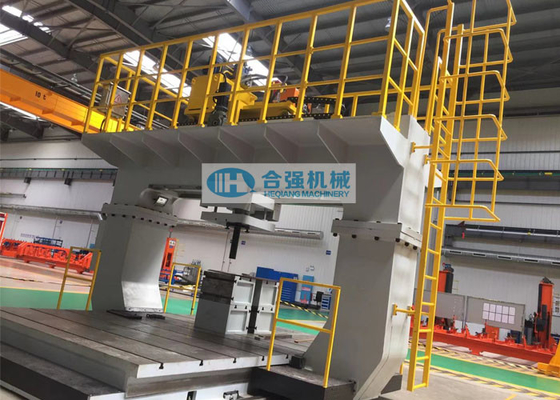

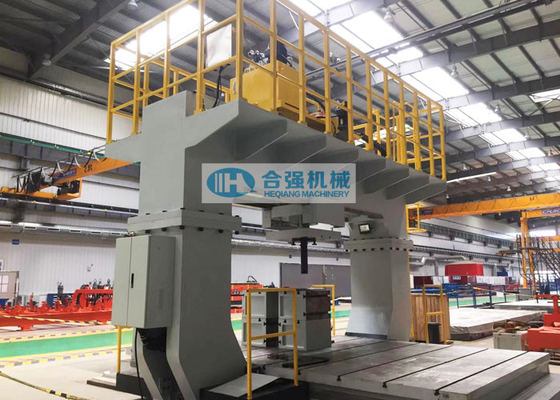

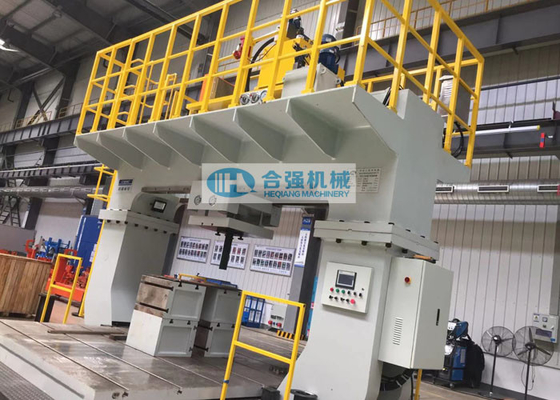

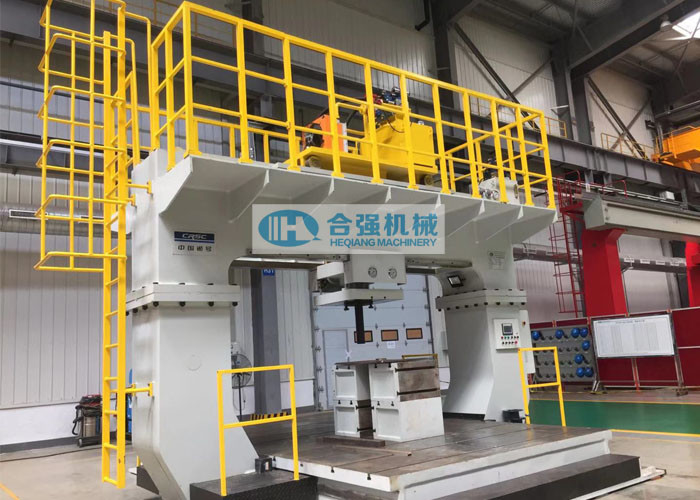

120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening

120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening
120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening 120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening 120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening 120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening

Large Image :  120 ton Mobile Gantry Hydraulic Press For Workpiece Straightening Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQY45-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Application: Metal Forming,Hydraulic Pressing
Usage: Pressing Metal Products Product Structure: Gantry Type Structure
Norminal Force: 120 Tons Power Source: Hydraulic
Cnc Or Not: CNC Warranty: One Year
High Light:

120t gantry hydraulic press

,

500mm Stroke gantry hydraulic press

,

25MPa Hydraulic gantry press

120ton Mobile Gantry Hydraulic Press Machine For Workpiece Straightening

Application scope:
This Gantry type hydraulic press machine is
mainly used for leveling and straightening of large plates and large parts, as well as the correction of large structural parts; at the same time, it can complete the functions of correction, press fitting and non-metallic material pressing under certain process conditions.



Technical Parameters:

 Specification  Data
 Product structure  Gantry type hydraulic press
 Norminal pressure  120t
 Max pressure of the hydraulic system  25MPa
 Maximum ram stroke  500mm
 Distance of the ram to the working table surface  600~1100 mm
 Ram idle speed  Approx.40 mm/s
 Ram working speed  3 mm/s
 Ram return speed  Approx.40 mm/s
 Maximum distance of ram longitudinal movement  3500~4000 mm
 Maximum distance of ram lateral movement  2500x2800 mm
 Gantry longitudinal moving speed  Approx. 100 mm/s
 Ram lateral moving speed  Approx. 80 mm/s
 Dimension of the working table (WxLxH)  3000x5000x400 mm
 Machine overall dimension (LxWxH)  Approx.5200x5800x5200 mm
 PLC and Display  Siemens brand

(Above parameters are indicative and can be modified according to the customer's actual requirements.)



Machine Features:

  • Gantry type structure with mobile gantry design.
  • The gantry hydraulic press machine is mainly composed of fixed working table, gantry frame, ram and mobile trolley, hydraulic system and electrical control system, etc.
  • The frame  is of full steel overall welded structrure, and carried out stress relief annealling treatment. With sufficient strength and rigidity.
  • It's provided with T-slots on the surface of Ram and working table.
  • The main cylinder is installed on the top beam.
  • The main cylinder and piston rod are good quality 45 forging steel.
  • The hydraulic system and pump motor are placed on the top of the machine body.
  • Siemens PLC and display to control and monitor the whole operation.
  • The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
  • Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


Cooperation contact:
If you are interested in our machines or any assistance required, please feel free to contact us for more information.
