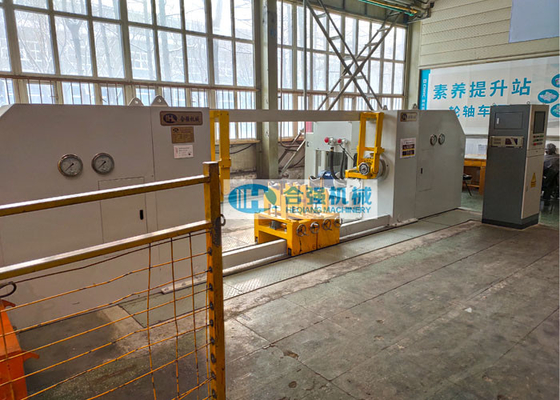

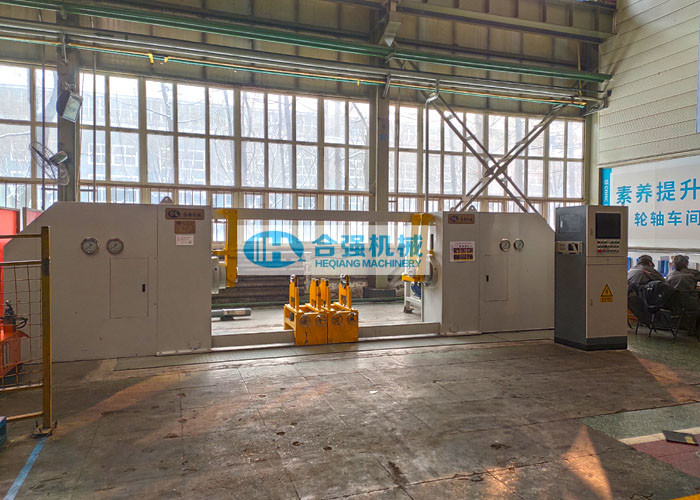

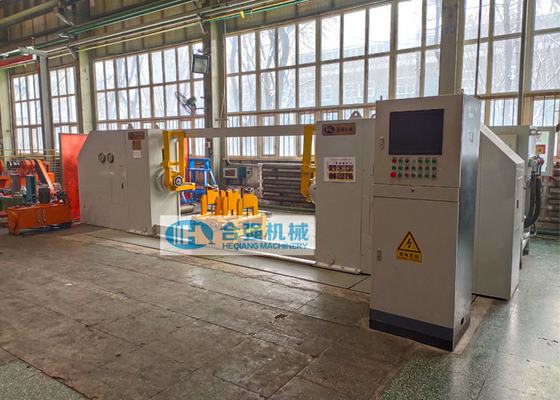

Fixed Wheel Bearing Press Equipment Mounting Dismounting

Fixed Wheel Bearing Press Equipment Mounting Dismounting
Fixed Wheel Bearing Press Equipment Mounting Dismounting Fixed Wheel Bearing Press Equipment Mounting Dismounting Fixed Wheel Bearing Press Equipment Mounting Dismounting

Large Image :  Fixed Wheel Bearing Press Equipment Mounting Dismounting Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ37
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Application: Rolling Stock Enterprises
Function: Mount Monorail Frame Hollow Axles Operation Mode: Automatic And Manual
Ram Cylinder Qty: 2 Pcs Operator Required: One Operator
Power Supply: 380V/50Hz, 3 Phase, AC After-sales Service: Engineer Available To Service Machiney Oversea
Highlight:

1000kN Bearing Press Machine

,

20kW Wheel Bearing Press Equipment

,

1000kN Wheel Bearing Press Equipment

Automatic Wheel Bearing Mounting And Dismounting Press Machine

Fixed Wheel Bearing Press Machine For Mounting Various Monorail Frame Hollow Axles

Application scope:

This Wheel Bearing Press Machine can meet the mounting and dismounting of various monorail frame hollow axles, as well as the mounting and dismounting of the axles and bearings of low-floor vehicles and linear motor vehicles.

This press machine is mainly used for the press-fitting operations of optical shaft bearings and monorail press-fit hollow short shafts, while taking into account the function of dismounting unqualified products during the mounting process.



Technical parameters:

 Maximum single cylinder pressing force  1000 kN
 Ram cylinder Qty  2 pcs
 Cylinder stroke  Not less than 600 mm
 Hydraulic cylinder piston speed (fast forward/retreat)  1000 mm/min
 Pressing speed  0~300 mm/min (adjustable)
 Positioning accuracy of the hydraulic cylinder piston  Not more than ±0.1mm
 Re-positioning accuracy of the hydraulic cylinder piston  Not more than ±0.05mm
 Accuracy of the hydraulic cylinder pressure sensor  Not more than 0.25% FS
 Output accuracy of the hydraulic cylinder pressure system  Not more than 1%
 Center height of the hydraulic cylinder piston  600 mm
 Inside height of the gantry frame  1200 mm
 Inside width of the gantry frame  2400 mm
 Maximum load of the machine  2000 kg
 Total power of the machine  Approx.20kW
 Machine weight  Approx. 15000 kg
 Overall dimension (LxWxH)  Approx. 7200x4000x2000 mm
 Maximum hydraulic system pressure  31.5 MPa
 Noise level during working  Not more than 75dB
 Power supply  380V/50Hz, 3 phase, AC
 Air supply  0.5±0.1 MPa
 Ambient temperature  5~40 ℃
 Relative humidity  Not more than 90%

(*Above parameters are indicative, and can be modified as per customer's requirements.)


Machine features:

  • The bearing press machine is mainly composed of chassis, two fixed columns, Double hydraulic cylinders, two support trolley, two claw devices, hydraulic system and electrical control system etc.
  • The machine can meet the mounting and dismounting of various monorail frame hollow axles, as well as the mounting and dismounting of the axles and bearings of low-floor vehicles and linear motor vehicles.
  • Able to complete the mounting work of hollow short axle and monorail frame. During mounting, the monorail frame is lifted by the workshop crane.
  • Able to complete the mounting work of the bearings onto the optical shafts.
  • Equipped with high-resolution of displacement sensor and pressure sensor, ensuring the correct record of the pressing curves (force vs displacement, displacement vs time and force vs time)
  • Adopt the centering mechanism for center hole positioning.
  • The whole steel structure design, and the finite element technology is used to analyze the deformation of the structure under various stress conditions, and optimize the design to ensure that the overall structure is reasonable, safe and reliable, and has good rigidity.
  • Gantry closed loop structure, Double hydraulic cylinders.
  • The machine main body and hydraulic station are provided with protection cover.
  • Foundation is required for this model bearing press machine.



Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, packing list, etc.


Fixed Wheel Bearing Press Equipment Mounting Dismounting 0
Fixed Wheel Bearing Press Equipment Mounting Dismounting 1
