Mobile Bearing Mount And Dismount Press

Mobile Bearing Mount And Dismount Press
Mobile Bearing Mount And Dismount Press Mobile Bearing Mount And Dismount Press Mobile Bearing Mount And Dismount Press Mobile Bearing Mount And Dismount Press

Large Image :  Mobile Bearing Mount And Dismount Press Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ34
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 90 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 200 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Condition: New
Application: Railway Depots, Rolling Stock Enterprises Etc. Function: Mount And Dismount Railway Bearings
Machine Type: Mobile Maximum Outpt Force: 60t
Operation Mode: Semi-automatic Warranty: One Year
High Light:

600kN Mobile Bearing Mount And Dismount Press

,

Mobile Bearing Mount And Dismount Press

,

ISO9001 Rolling Bearing Press Machine

Mobile Railway Bearing Mount And Dismount Press , Bearing Puller And Pusher


Application scope:

This Mobile wheel bearing press machine is applicable to mount and dismount wheelset rolling bearings of different types of railway rolling stock.



Technical parameters:

 Machine type  Mobile
 Maximum output force  60 tons or as per required
 Maximum cylinder stroke  Not less than 300 mm
 Applicable bearing center height  400 ~ 1000 mm
 Noise level during working  Not more than 75dB
 Ambient temperature  -5℃~45℃
 Relative humidity  Not more than 95%
 Power supply  380V/50Hz, 3 phase, AC

(*Above parameters are indicative, and can be modified as per customer's requirements.)


Machine features:

  • The mobile bearing mount/dismount press is mainly composed of mechanical part, hydraulic system, electrical control system and special tooling for mounting and dismounting etc.

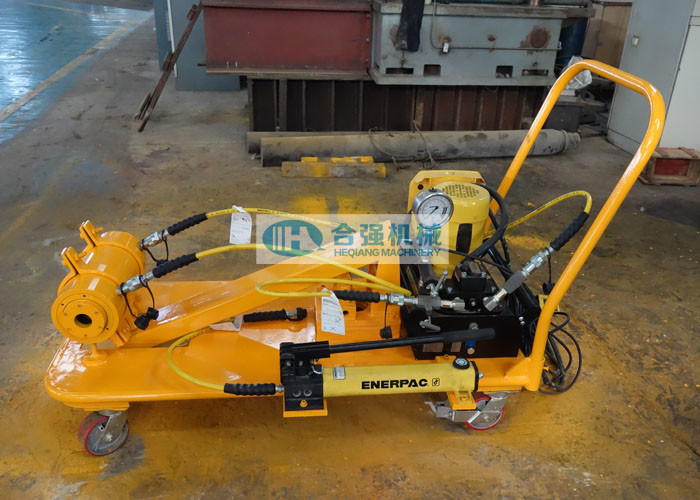

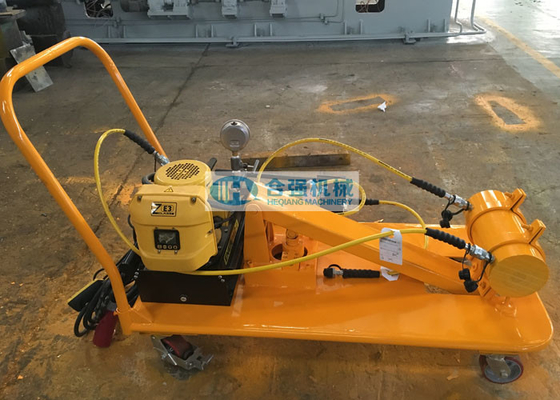

  • The bearing press machine is mobile type, very light and easy to move.
  • The hydraulic system is integrated on the articulated mobile lifting trolley and it can achieve the mounting and dismounting of the whole bearing.
  • It’s easy to operate, easy to maintain and repair. With sufficient rigidity and good static and dynamic performance. With advanced and reliable electrical control system and reliable safety protection device.

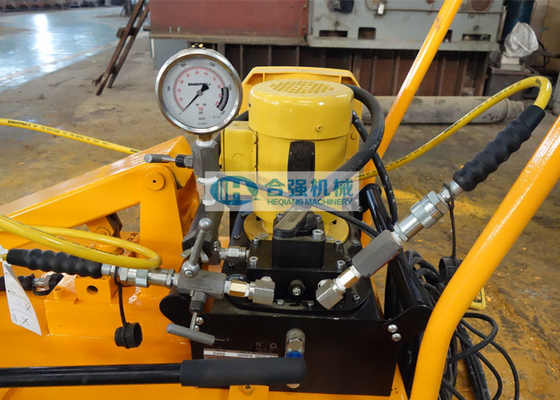

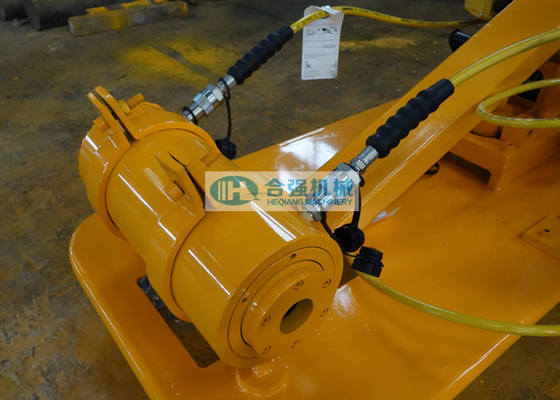

  • Main cylinder, lifting cylinder, manual pump and high-pressure micro hydraulic station (Include oil tank, hydraulic valve, motor, oil pump, switch, hydraulic gauge and filter etc.) are ENERPAC products. The key parts and tooling shall be carried out reasonable heat treatment and issued with an effective flaw detection report.
  • The exposed surface of all parts should be anti-corrosion, rust-proof; the outer surface of the press should be sprayed with anti-rust primer and topcoat.
  • All measuring units are easy to disassembly and assembly.
  • With stable and reliable hydraulic system. Sudden power failure will not cause the cylinder falling down.
  • The bearing press is manufactured by new high-quality materials. All mechanical and electrical components and control system used conforms to the standardization requirements. The bearing press conforms to the national standards of safety and noise. The components are easy to repair, replace and maintain.



Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc.


Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
