Locomotive Wheelset Mount And Dismount Press Force 500 Tons CNC Control

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

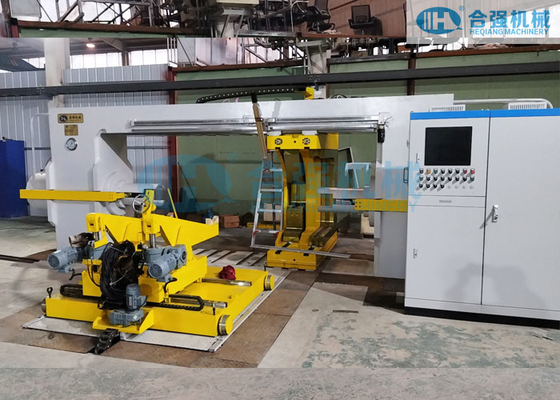

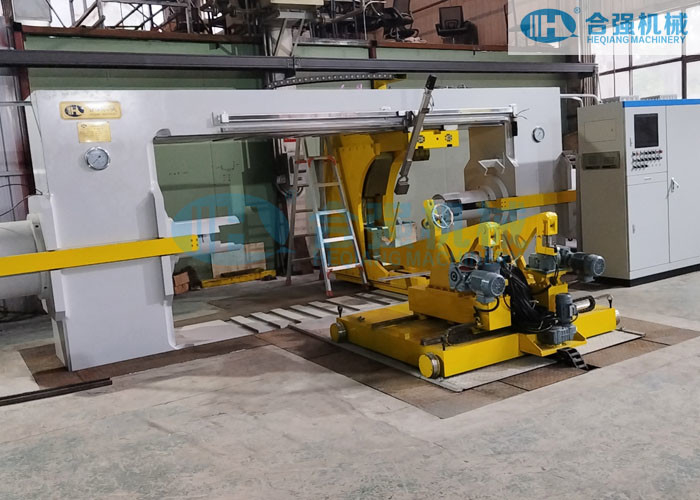

Locomotive Wheelset Mount And Dismount Press Force 500 Tons CNC Control

Locomotive Wheelset Mount And Dismount Press Force 500 Tons CNC Control
Locomotive Wheelset Mount And Dismount Press Force 500 Tons CNC Control
video play

Large Image :  Locomotive Wheelset Mount And Dismount Press Force 500 Tons CNC Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD430,000~530,000 per set
Packaging Details: Nude packages and Wooden cases (1x20'GP+1x40'HQ)
Delivery Time: 6 months after down payment and design approval
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Product Name: Wheelset Press Max Pressing Force: 500 Tons
No. Of Ram Cylinder: 2 Piston Stroke: 900mm
Ram Positioning Accuracy: ≤ 0.01mm Total Installed Power: ≤ 30kW
Machine Weight: Approx.30 Tons Max. Wheel Diameter: 1350mm
Axle Length: 2200~2500mm Max. Wheelset Weight: 8000kg
High Light:

Wheelset Mount And Dismount Press

,

CNC Control Wheelset Press

,

500 Tons Wheelset Press

Product Description:

This Double cylinder Wheelset Press is a horizontal hydraulic wheel press-fitting machine, mainly used for mounting and dismantling of the railway locomotive wheelset wheels and driven gears etc, and perform the backpressure test. It's fully automatically controlled by Siemens PLC and AdvanTech industrial PC. Only one operator is required to complete all the operations.
It is made of high-strength steel and has a high strength, good rigidity and less deformation. This wheel press machine can be used to press-fit wheelsets quickly and safely, making it the ideal choice for railway wheelset maintenance and repair.



Features:

  • A horizontal type hydraulic wheelset mounting and dismounting press
  • Only one operator required to operate the wheel press. Fully automatic control.
  • Double-ended hydraulic cylinders for mounting and dismounting.
  • Only need one positioning to proceed both wheels' mounting and dismounting without reversal of the axle
  • Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy
  • Special patented centring devices at both ends of two ram cylinders for center hole positioning.
  • Gantry frame structure, with high strength, good rigidity and less deformation
  • Movable slider device with replaceable inserts to block the wheels, gears or brake discs for dismounting.
  • An electrical trolley is provided for wheelset loading/unloading onto/off from the press
  • Siemens S7-300 PLC and AdvanTech industrial computer to control the operation.
  • Automatic mode for production, and manual mode for commissioning and maintenance
  • With advanced measurement system and recording system to detect and record the required data and display it on the screen.


Technical Parameters:

Parameter Value
Product Name Horizontal Wheelset Press
Functions Mounting and dismantling wheelsets of railway vehicles
Max. Pressing force 500 tons
No. of ram cylinder 2 (1 left and 1 right)
Piston stroke 900 mm
Pressing speed 0~5 mm/s
Fast forward / return speed 0~20 mm/s
Pressure sensor accuracy 0.25%FS
Displacement sensor accuracy 0.01 mm
Ram positioning accuracy ≤ 0.01mm
Max. hydraulic system pressure 315 bars
Power supply 3-PH AC, 380V/50HZ
Total installed power 30 kW
Machine weight Approx.30 tons
Installation space Approx.8000x6000 mm
Max. Wheelset Weight 8000 kgs
Max. Wheel Diameter 1350 mm
Axle length range 2200~2500 mm


Applications:

Heqiang Machinery's Wheelset Press is a hydraulic wheel press machine, specially designed for wheelset assembly and disassembly. It is applicable for a maximum wheel diameter of 1350mm, making it perfect for a wide range of applications. Made from high-strength steel. The packaging is nude packages and wooden cases and the delivery time is 6 months after down payment and design approval. Payment can be made by T/T or L/C. Heqiang Machinery's Wheelset Press is ideal for railway maintenance workshops and vehicle production factories.



Customization:

Wheelset Press by Heqiang Machinery

Heqiang Machinery offers a wide range of Wheelset Press products to provide comprehensive solutions for your wheelset maintenance needs. Our Horizontal Press is ideal for mounting and dismounting wheelsets. It is applicable for a maximum wheel diameter of 1350mm, maximum axle length of 2600mm and maximum weight of 8000 kg. With a maximum pressing force of 200-500T for choice, it can meet different production and maintenance requirements.
If you are looking for a reliable and high-quality Wheelset Mount and Dismount Press Machine, Heqiang Machinery can provide you with the perfect solution. Contact us today to learn more about our products and services.


Support and Services:



We are committed to providing our customers with the best possible technical support and service. We provide a comprehensive range of services to ensure that your WheelSet Press product is working optimally.
Our technical support staff is available 24 hours a day, 7 days a week to answer any questions you may have about your WheelSet Press product. We offer phone, email, and chat support, as well as online tutorials and FAQs. If you need assistance with installation or product use, we can help.
We provide a range of product service options for WheelSet Press products. Our product service includes repairs, maintenance, upgrades, and more. We also offer warranties on select products, and our knowledgeable technicians can help you make the most of your WheelSet Press product.



Packing and Shipping:



Wheelset Press products are packaged with care. Our products are securely packed in a box with protective materials to ensure that your product arrives in perfect condition.

We offer both domestic and international shipping. We use reliable shipping services that provide tracking numbers and insurance so that your order arrives safely and on time.
