300 Tons Hydraulic Wheel Press For Metro Wheelset Maintenance

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

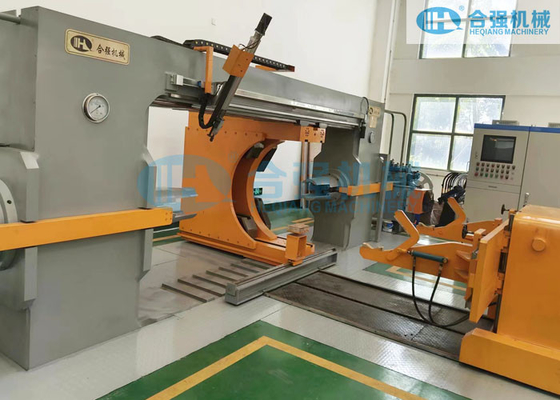

300 Tons Hydraulic Wheel Press For Metro Wheelset Maintenance

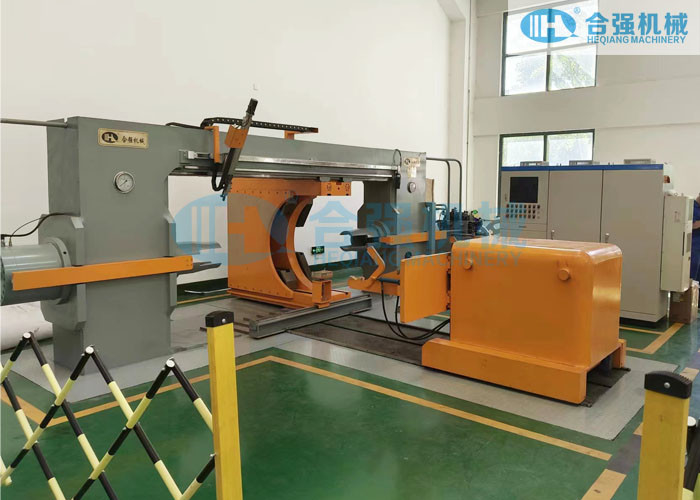

300 Tons Hydraulic Wheel Press For Metro Wheelset Maintenance

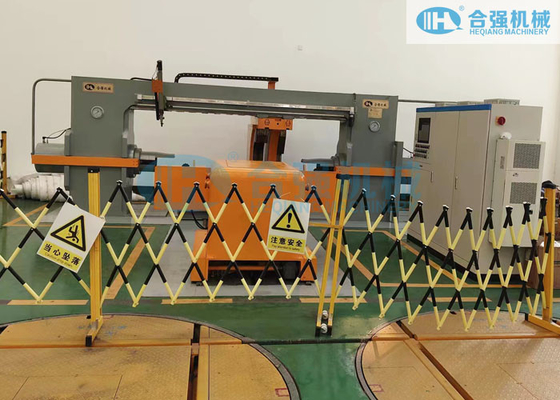

300 Tons Hydraulic Wheel Press For Metro Wheelset Maintenance
video play

Large Image :  300 Tons Hydraulic Wheel Press For Metro Wheelset Maintenance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD400,000~500,000 per set
Packaging Details: Nude packages and Wooden cases (1x20'GP+1x40'HQ)
Delivery Time: 6 months after down payment and design approval
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Product Name: Wheelset Press Material: High-strength Steel
Max. Pressing Force: 300T Ram Cylinder: 2pcs (1 Left + 1 Right)
Piston Stroke: 800mm Total Installed Power: ≤ 30 KW
Control System: PLC + Industrial PC Machine Warranty: One Year
High Light:

300 Tons Hydraulic Wheel Press

,

Hydraulic Wheel Press For Metro Wheelset

,

Metro Wheelset Hydraulic Wheel Press

Product Description:

This Fully Automatic Wheelset Press is a horizontal hydraulic wheel press-mounting machine, mainly used for mounting and dismantling of the Metro and coach wheelset wheels, brake discs and gears etc,. The operation is fully automatically controlled by Siemens PLC and AdvanTech industrial PC. Only one operator is required to complete all the operations.
It is made of high-strength steel. Gantry frame structure, with high strength, good rigidity and less deformation. This hydraulic wheel press can be used to press-fit wheelsets quickly and safely, making it the ideal choice for railway wheelset maintenance and repair.

Features:

  • A horizontal type hydraulic wheelset mounting and dismounting press
  • Double-ended hydraulic cylinders for mounting and dismounting.
  • Only one positioning is required to proceed both sides' mounting and dismounting without reversing the axle
  • Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy
  • Special patented centering devices at both ends of ram cylinders for center hole positioning.
  • Movable slider device with replaceable inserts to block the wheels, gears or brake discs for dismounting.
  • With a rotaty trolley for wheelset transferring into or out from the press
  • Siemens S7-300 PLC and AdvanTech industrial computer to control the operation.
  • Automatic mode for production, and manual mode for commissioning and maintenance
  • With advanced measurement system and recording system to detect and record the required data and display it on the screen.

Technical Parameters:

Parameter Value
Product Name Horizontal Wheelset Press
Functions Mounting and dismantling wheelsets
Max. Pressing force 300 tons
No. of ram cylinder 2 (1 left and 1 right)
Piston stroke 800 mm
Pressing speed 0~5 mm/s, adjustable
Pressure sensor accuracy 0.25%FS
Displacement sensor accuracy 0.01 mm
Ram positioning accuracy ≤ 0.01mm
Max. hydraulic system pressure 315 bars
Power supply 3-PH AC, 380V/50HZ
Total installed power ≤ 30 kW
Machine weight Approx.30 tons
Max. Wheelset Weight 3000 kgs
Max. Wheel Diameter 1100 mm
Max. Axle length 2300 mm

Applications:

Heqiang Machinery's Wheelset Press is a hydraulic wheel press machine, specially designed for wheelset assembly and disassembly. It is applicable for a maximum wheel diameter of 1250mm, making it perfect for a wide range of applications. Heqiang Machinery's Wheelset Press is ideal for railway maintenance workshops and vehicle production factories.

Customization:

Wheelset Press by Heqiang Machinery

Heqiang Machinery offers a wide range of Wheelset Press products to provide comprehensive solutions for your wheelset maintenance needs. Our Horizontal Press is ideal for mounting and dismounting wheelsets. It is applicable for a maximum wheel diameter of 1350mm, maximum axle length of 2600mm and maximum weight of 8000 kg. With a maximum pressing force of 200-500T for choice, it can meet different production and maintenance requirements.
If you are looking for a reliable and high-quality Wheelset Mount and Dismount Press Machine, Heqiang Machinery can provide you with the perfect solution. Contact us today to learn more about our products and services.


Support and Services:

We are committed to providing our customers with the best possible technical support and service. We provide a comprehensive range of services to ensure that your WheelSet Press product is working optimally.

We provide a range of service options for WheelSet Press products. Our service includes repairs, maintenance and upgrades. We also offer warranties on select products, and our knowledgeable technicians can help you make the most of your WheelSet Press product.

Packing and Shipping:

The package of the Wheelset Press will be Nude package and wooden cases. One set of this type wheel press will be loaded in 1x20'GP and 1x40'HQ containers. We also offer freight prepaid service if required.
